SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 300 Mbps
5G Wi-Fi Transmission Rate: 867 Mbps
Antenna Type: Fixed
Antennas: 4 High Gain Antennas
Application: Outdoor
Brand Name: WAVLINK
Certification: CE
Feature 1: Outdoor long-range router
Feature 2: Mesh WiFi router, WiFi mesh system
Feature 3: 4G router with SIM slot, nano router
Feature 4: SIM card router, LTE router, SIM card WiFi
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Function: Firewall
High-concerned Chemical: None
LAN Ports: 1
Max. LAN Data Rate: 600 Mbps
Number of USB Interfaces: None
Origin: Mainland China
Package: Yes
Power Supply: Supports Power over Ethernet (Passive PoE)
Product Type: WiFi Router / EasyMesh Router
Rated Voltage: 100–240 V AC, 50/60Hz
Recommended Uses: Home
Standards and Protocols: Wi-Fi 802.11g, 802.11b, 802.11n, 802.11ac
Support Mesh: Yes
Supports WDS: Yes
Supports WPS: Yes
Type: Wireless, Outdoor Wireless 4G Router
Use Case: Dual-band high-power outdoor WiFi router
WAN Ports: 1 x 10/100/1000 Mbps
WAN Type: PPPoE, Dynamic IP, Static IP
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100/1000 Mbps
Wireless Communication Standard: 802.11ac
Wireless Transmission Rate: 1200 Mbps
With Modem Function: No
Product Overview

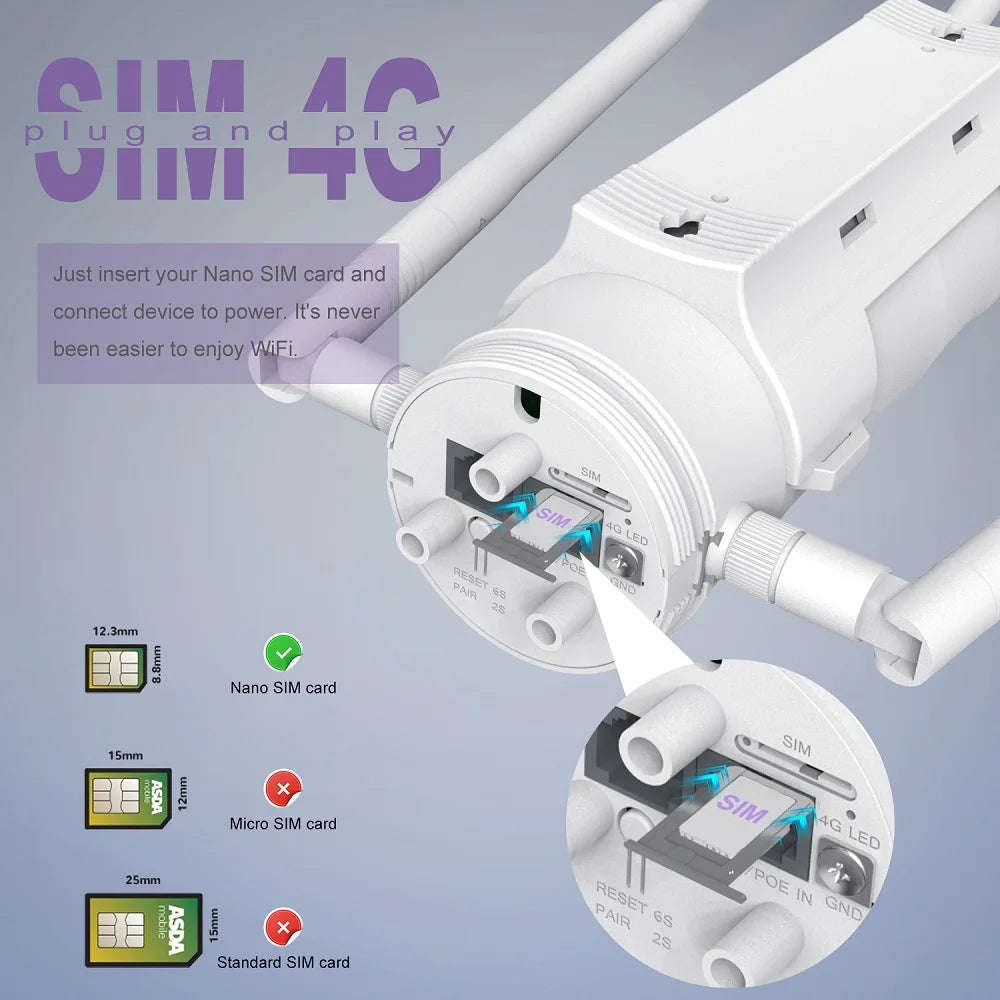

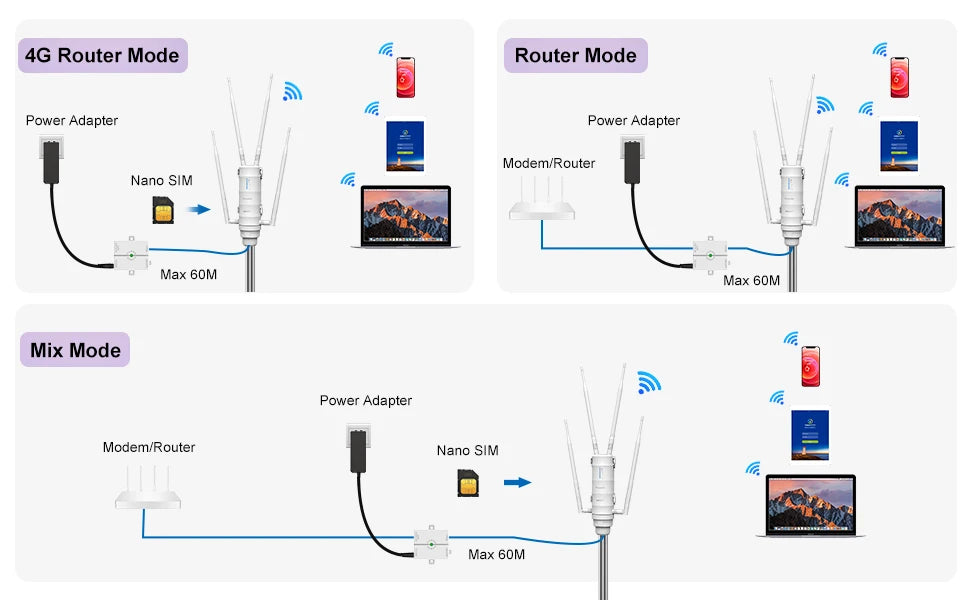

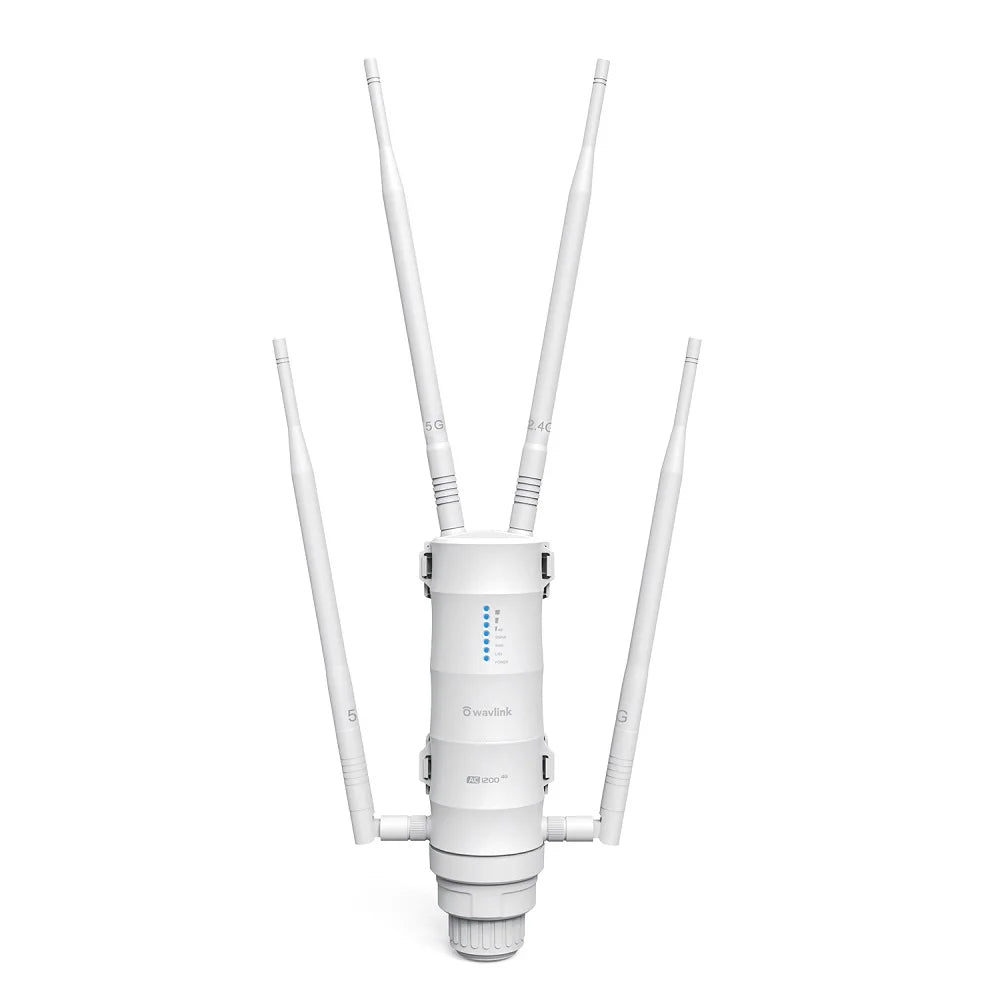

The WAVLINK AC1200 Dual Band High Power 4G LTE Outdoor Wi-Fi Router combines wireless router functionality with LTE Category 4 support. It features four 7dBi omni-directional external antennas and two 5dBi internal antennas, enabling high-speed wireless coverage even under outdoor conditions. Designed for rugged environments, it supports connectivity through a Nano SIM card or via WAN using PPPoE.
Performance Highlights
The device supports LTE download speeds up to 150 Mbps and upload speeds up to 50 Mbps. Combined wireless speeds reach up to 1200 Mbps — 2.4 GHz at 300 Mbps and 5 GHz at 867 Mbps. It delivers reliable coverage over distances of up to 200 meters, depending on environmental conditions, and is ideal for large outdoor areas such as factories, communities, or public streets.
Key Product Features

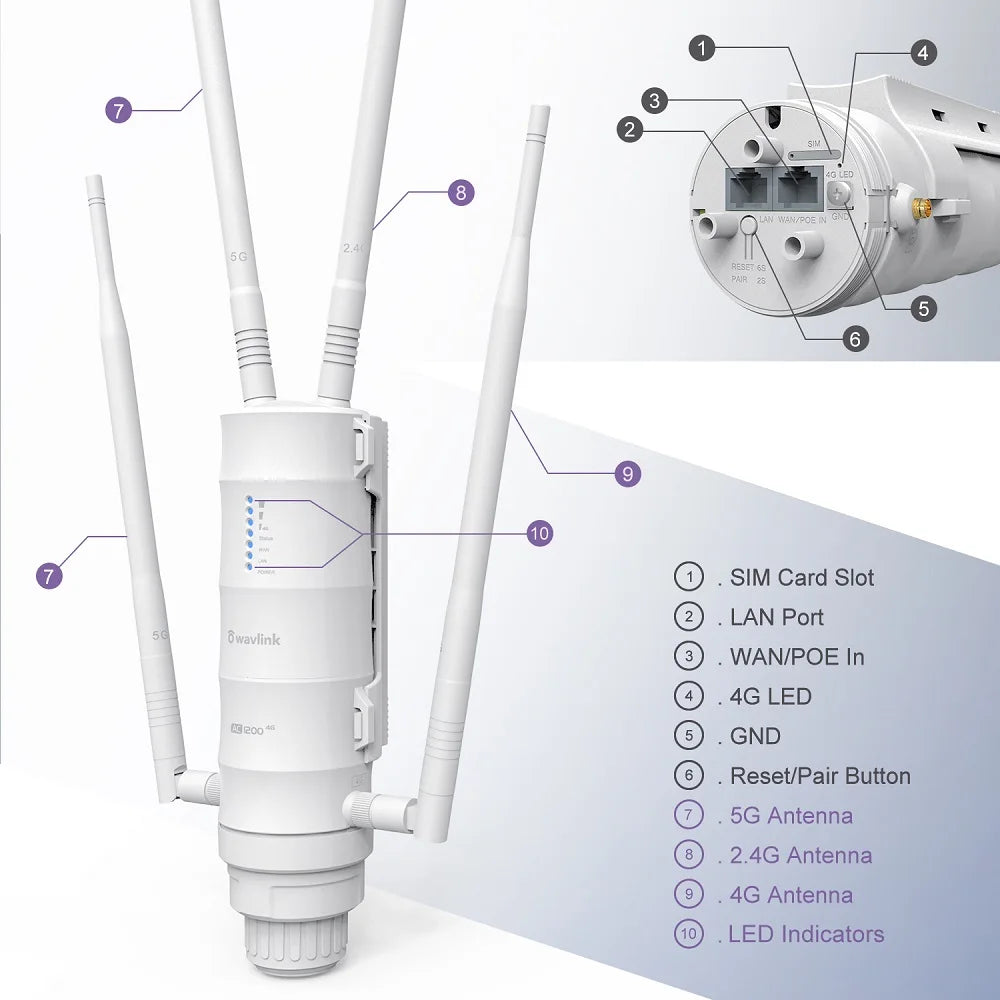

This router provides simultaneous dual-band connectivity with a total speed of up to 1200 Mbps. It features high transmission power for extended coverage and supports both 4G and traditional router modes. The unit includes one WAN port (Passive PoE, 1000 Mbps) and one LAN port (1000 Mbps). The rugged design includes RP-SMA connectors for external antennas, ESD and lightning protection, and a weatherproof IP-rated enclosure. Power is supplied via Passive PoE over network cable (up to 60 meters). It complies with IEEE 802.11 a/b/g/n/ac standards and supports WPA2 PSK and WPA2/WPA3 PSK mixed encryption protocols. EasyMesh router functionality is also supported.
Additional Notes
Performance may vary based on environmental factors.
The PoE power supply module must be installed indoors as it is not waterproof.
All images on packaging are for illustration purposes only.
In case of damage or defects, please contact customer support for assistance.
Model Name: WAVLINK AC1200 / 4G LTE Outdoor WiFi Router
