Brand Name: MOES
Model: AM43-0.45/40-ES-EB
Origin: Mainland China
Certification: CE
Voltage: 110–240V
Wattage: 8.4VDC
Battery Included: Yes
Battery Type: Built-in non-removable rechargeable battery (7.4VDC/1000mAh)
Lock-rotor Current: 1.8A
Rated Current: 1A
Speed Range: 20–40rpm
Torque: 0.45Nm
Load Bearing: 3.5 KG
Frequency: 2.4GHz
Password: 8888
is_customized: Yes
Hign-concerned Chemical: None
Product Description

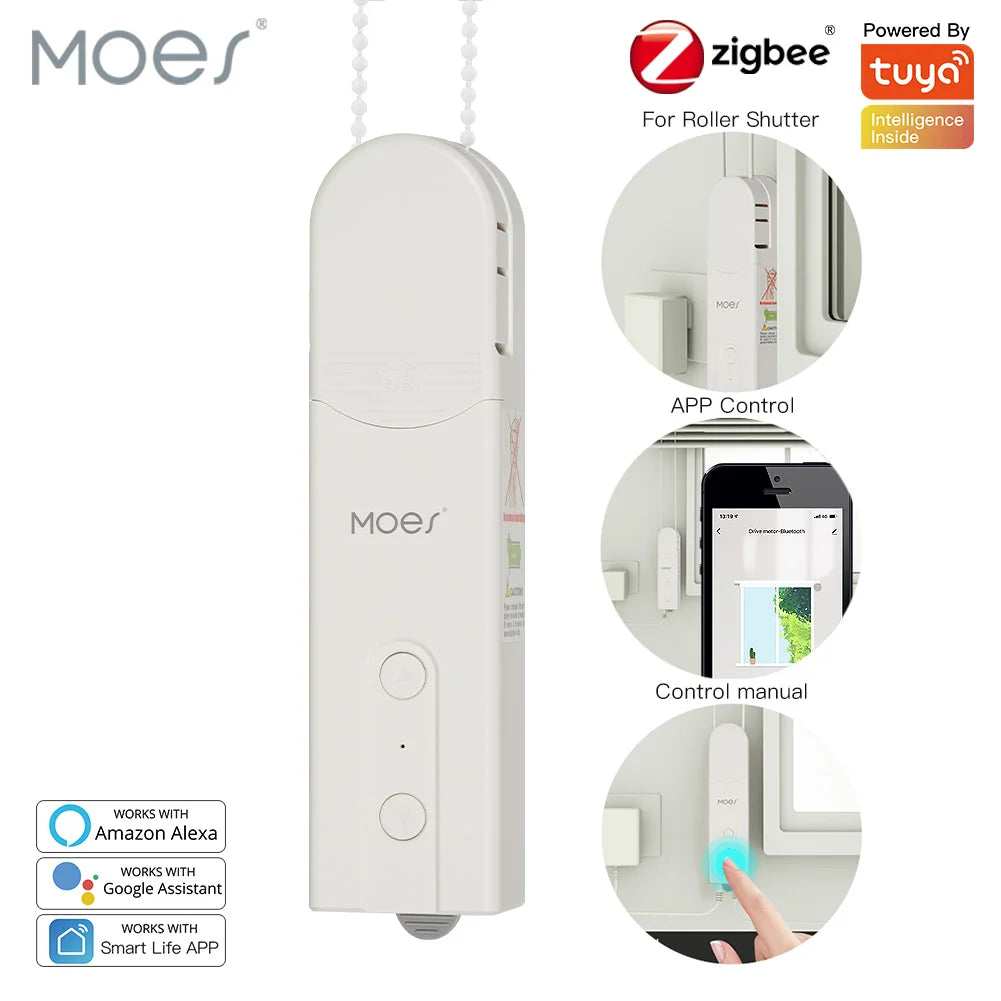

ZigBee Smart DIY Motorized Roller Blinds/Shades Drive Motor
Hub Required • Powered by Charger • Tuya Smart Life APP • Alexa & Google Home Voice Control
New 2020 Upgrades

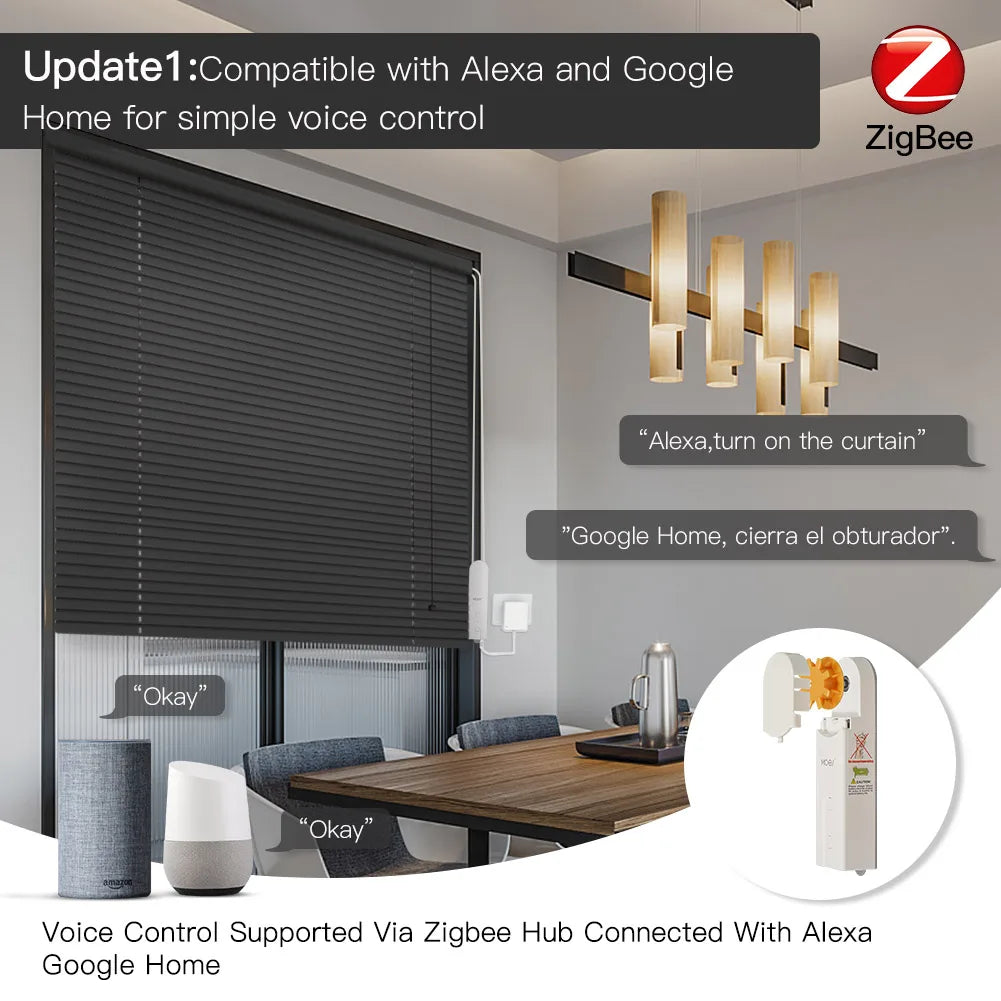

Update 1: ZigBee version now supports Alexa and Google Home voice control.

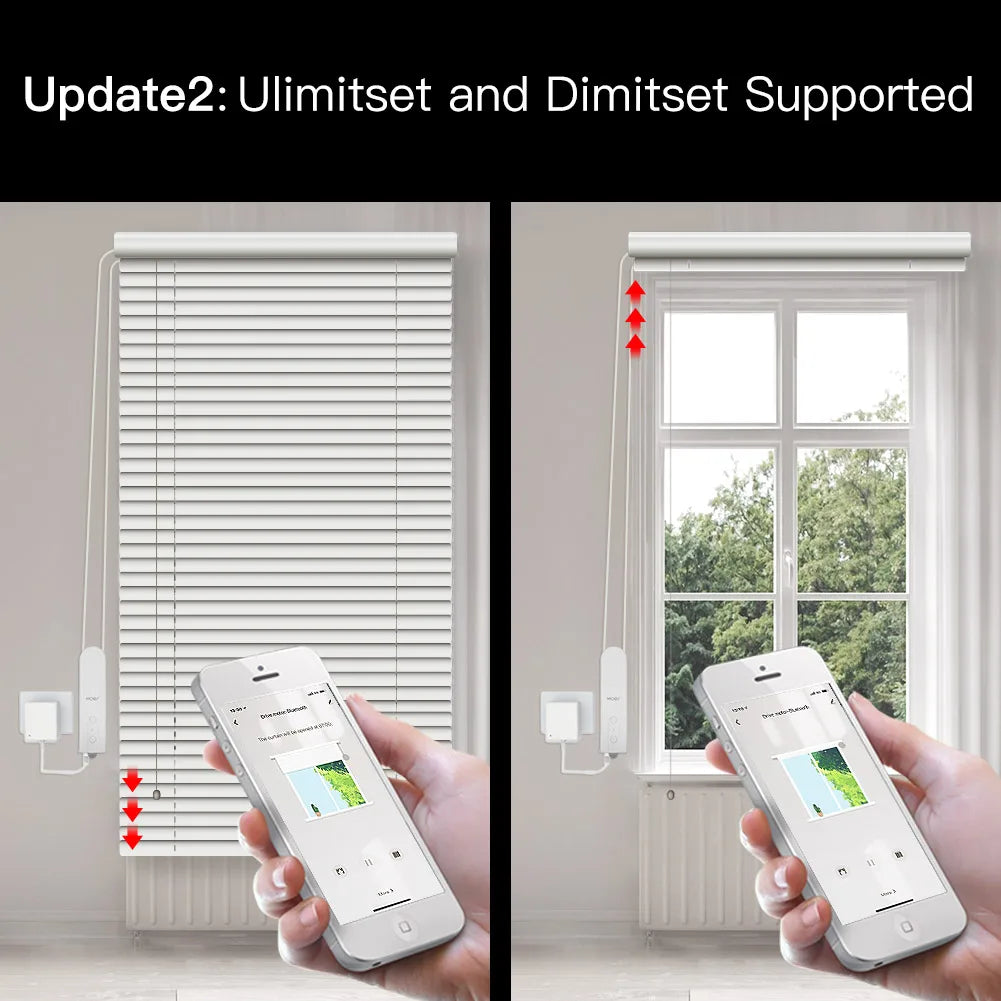

Update 2: Limit set and direction set available in the app.

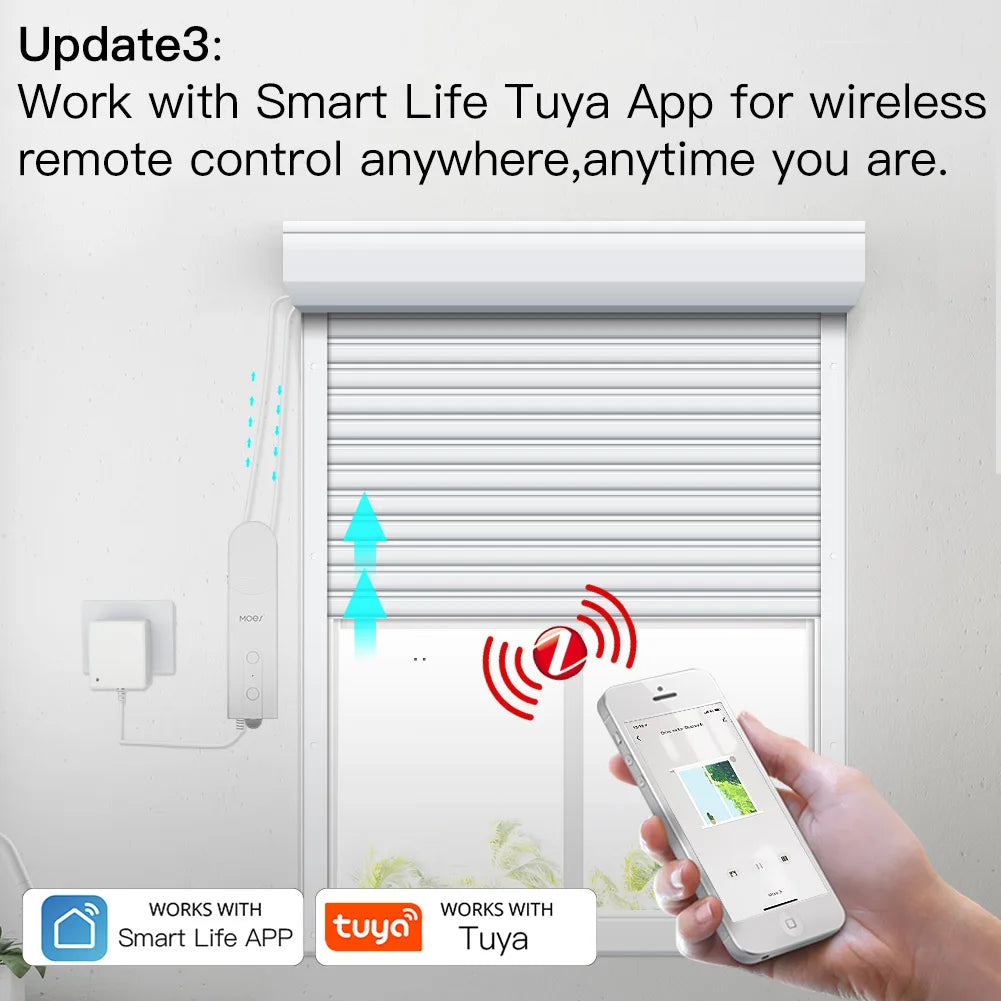

Update 3: Tuya Smart Life App support with ZigBee hub for seamless wireless control.
Note: After powering on the motor, press the power button + down button simultaneously. The blue indicator light will flash three times to enter pairing mode.
Main Features

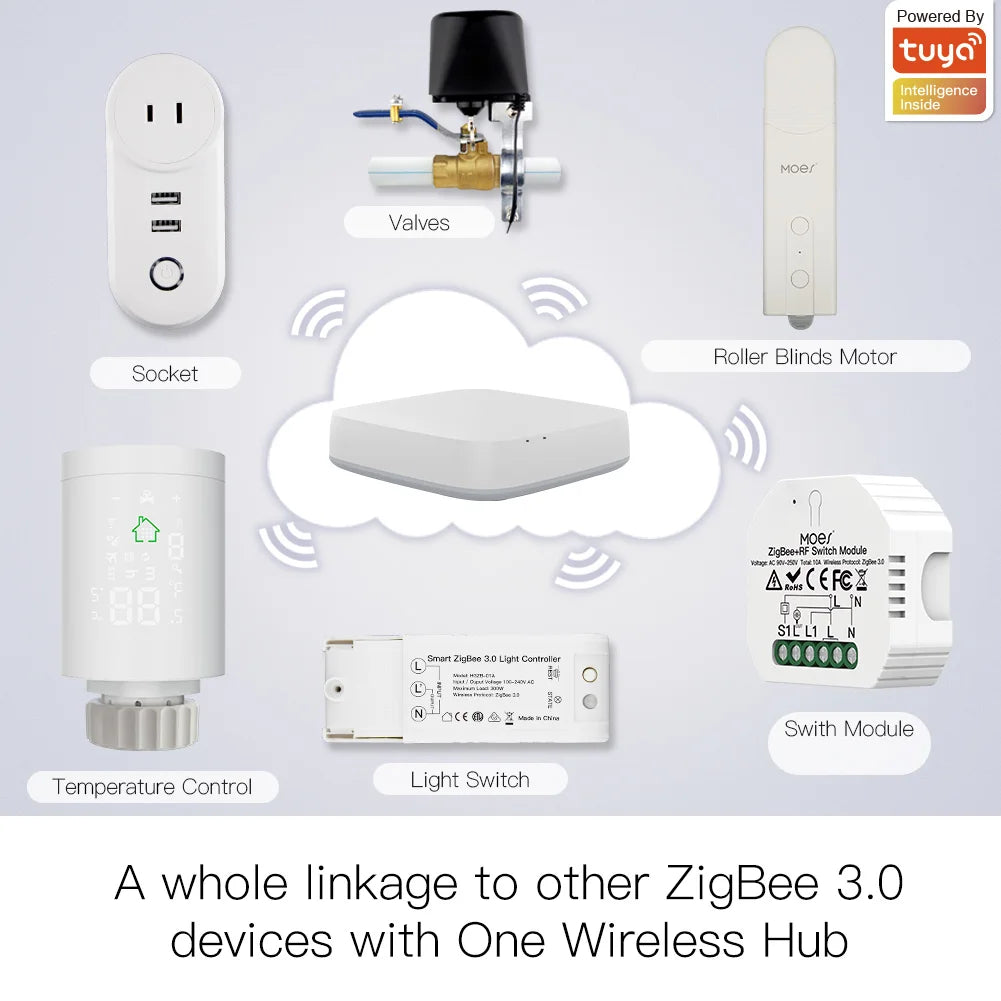

This motor is ZigBee protocol-based, requiring a ZigBee hub for operation. It automates existing blinds, shades, or curtains affordably and efficiently. You can set upper and lower limits directly in the app, which are retained even after power loss. Motor speed is adjustable through the Tuya Smart Life app. Compatible with various types of shades and curtains.
Voice Control Support
Fully supports Alexa and Google Home (note: only "turn on/off" commands are supported).
Smart Life / Tuya App Control

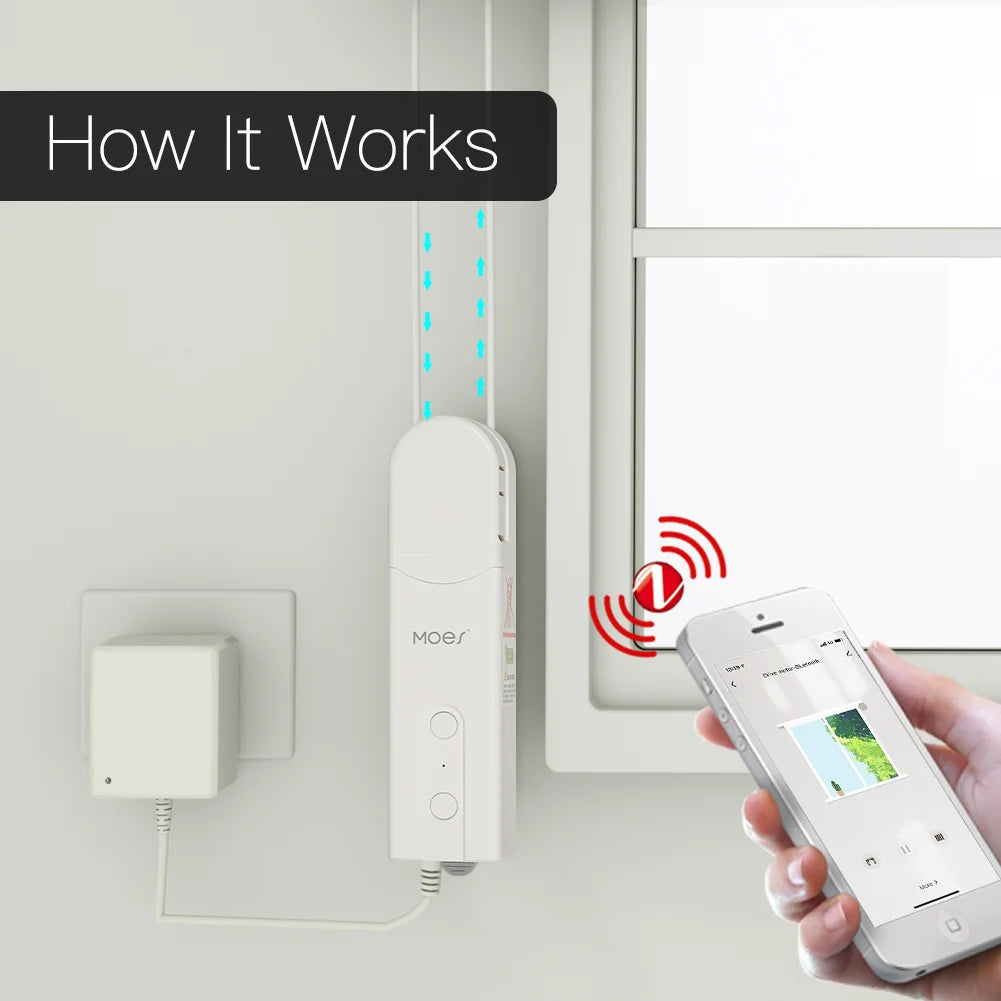

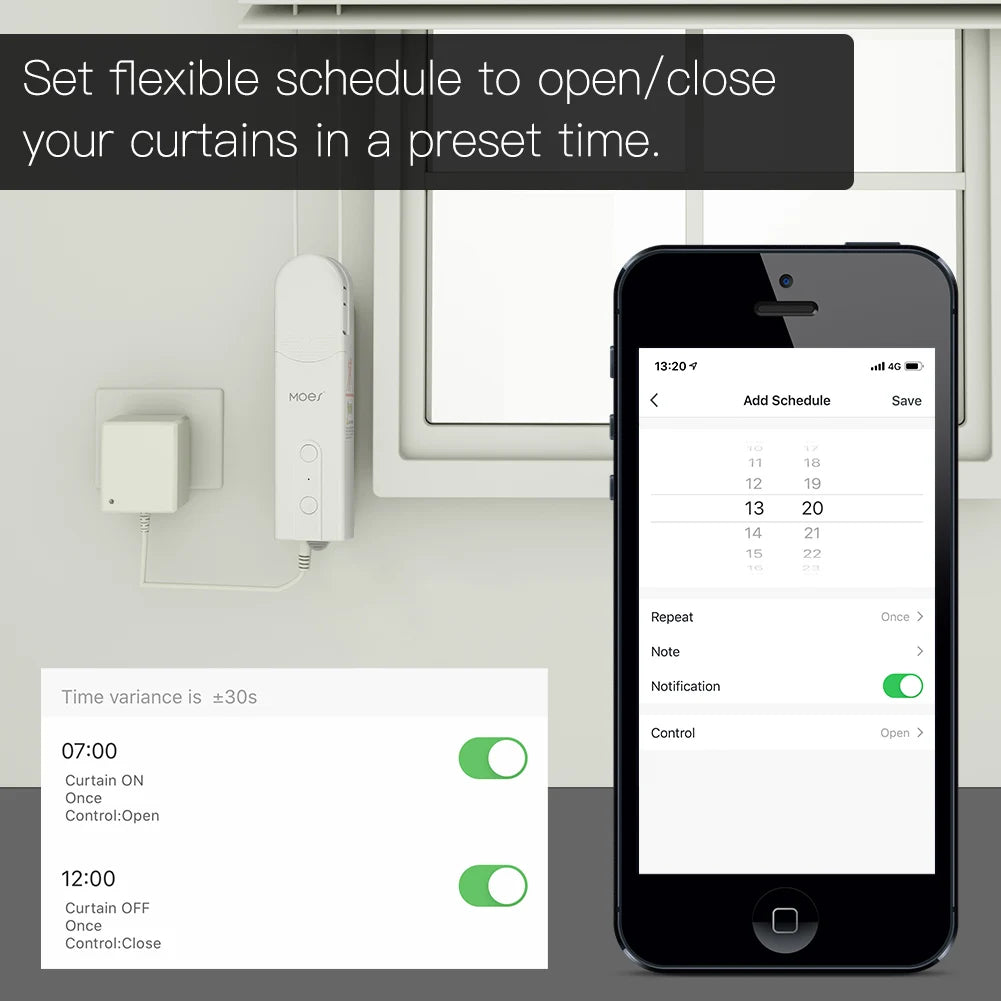

Control via the Tuya Smart Life App or onboard buttons. Offers full wireless remote access, scheduling, and timing control.

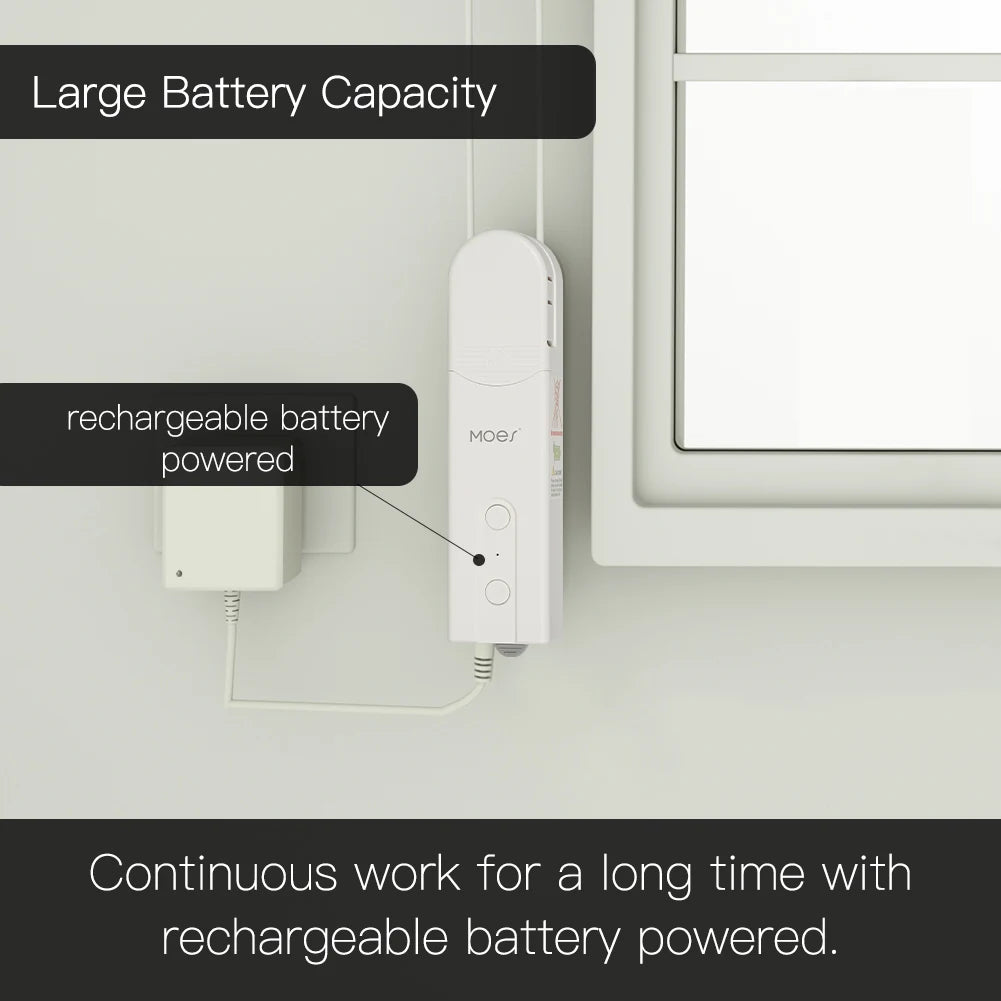

Power Source
Runs on a charger (included). The motor features low power consumption and long battery life thanks to the integrated rechargeable battery.

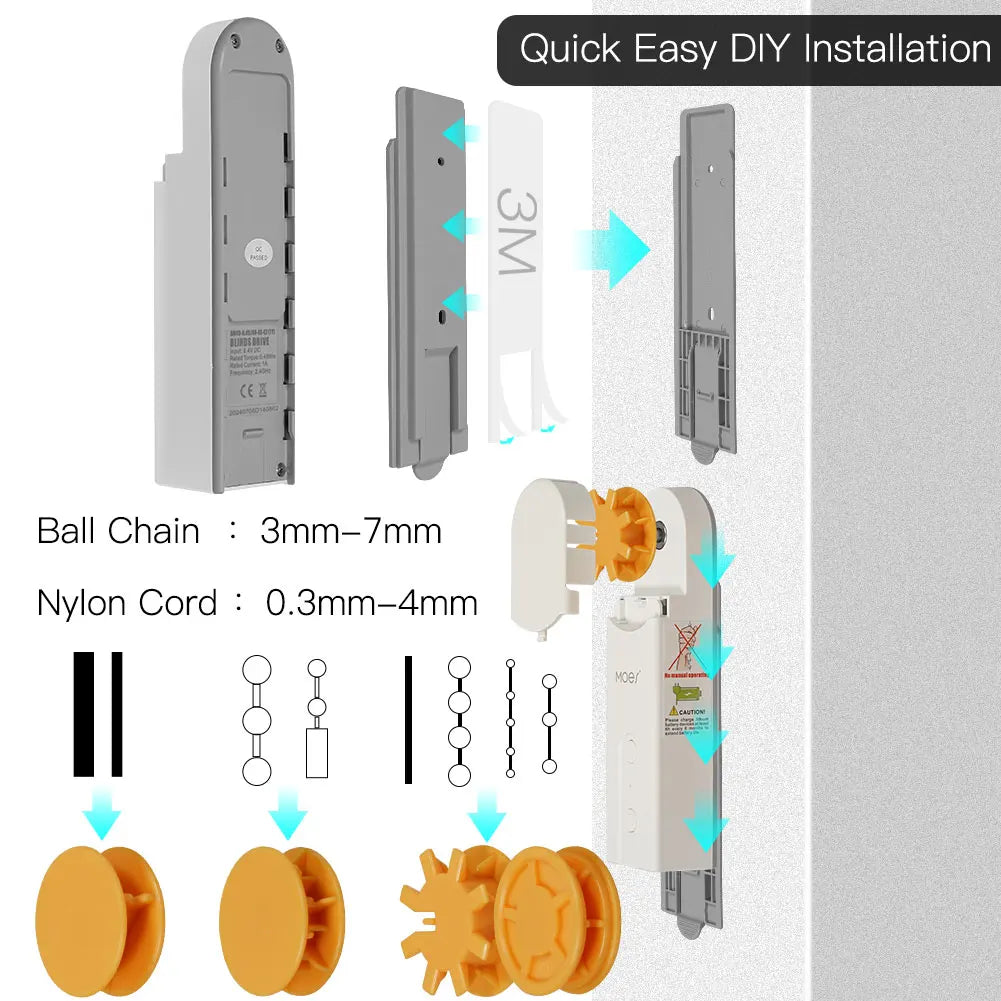

DIY Friendly
Easy installation in minutes. Works with any looped plastic or metal beaded chain.

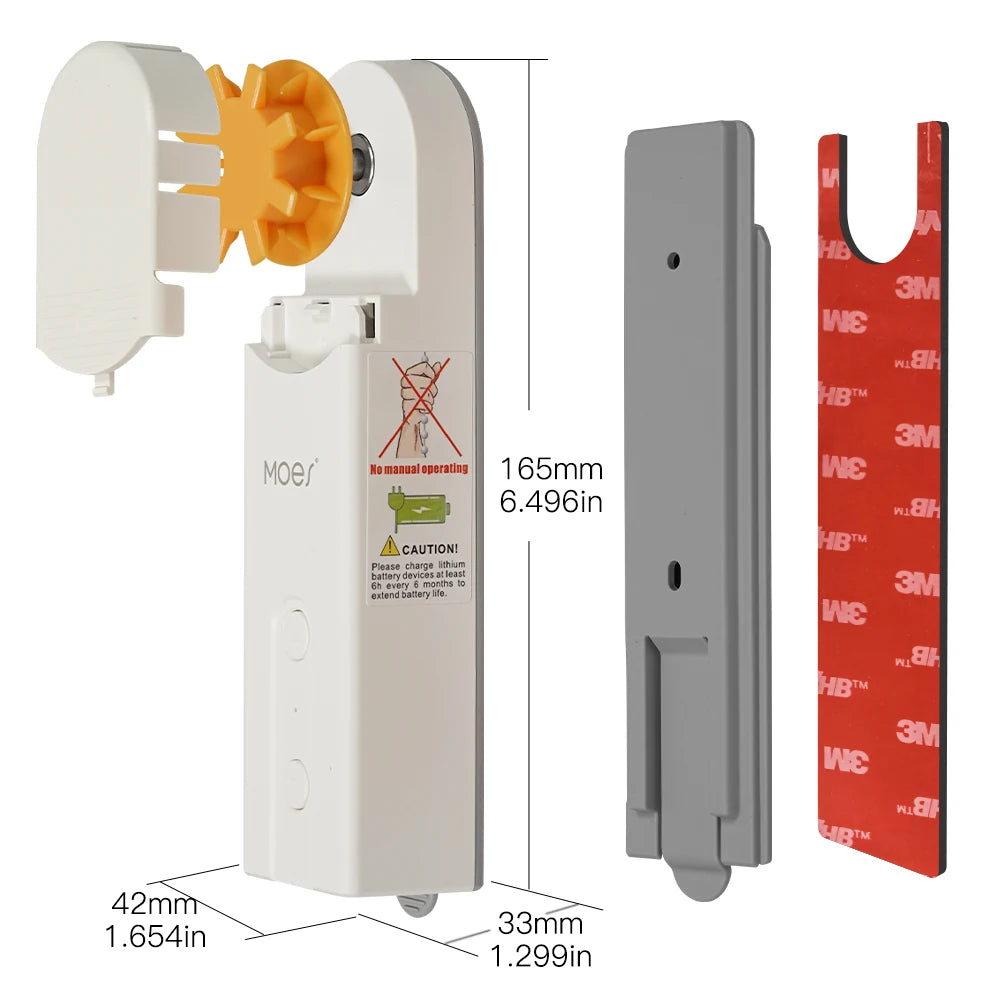

Package Includes

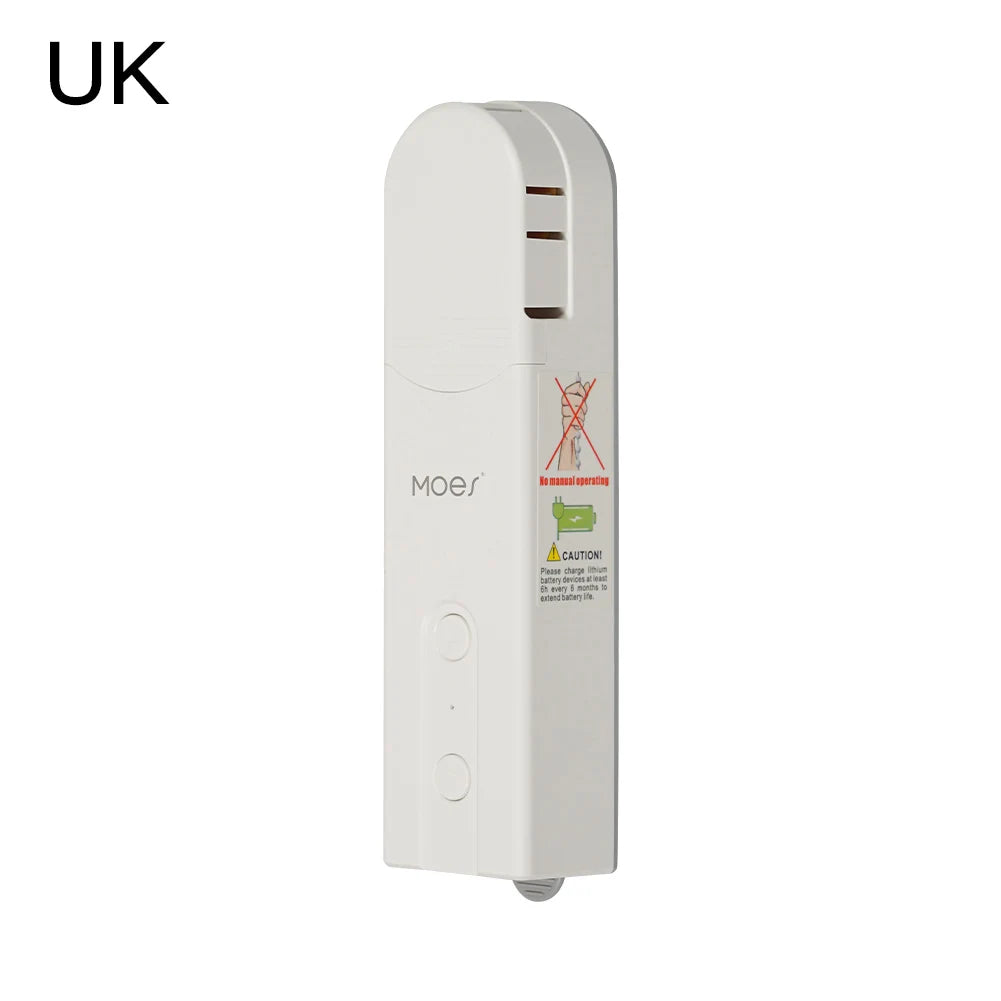

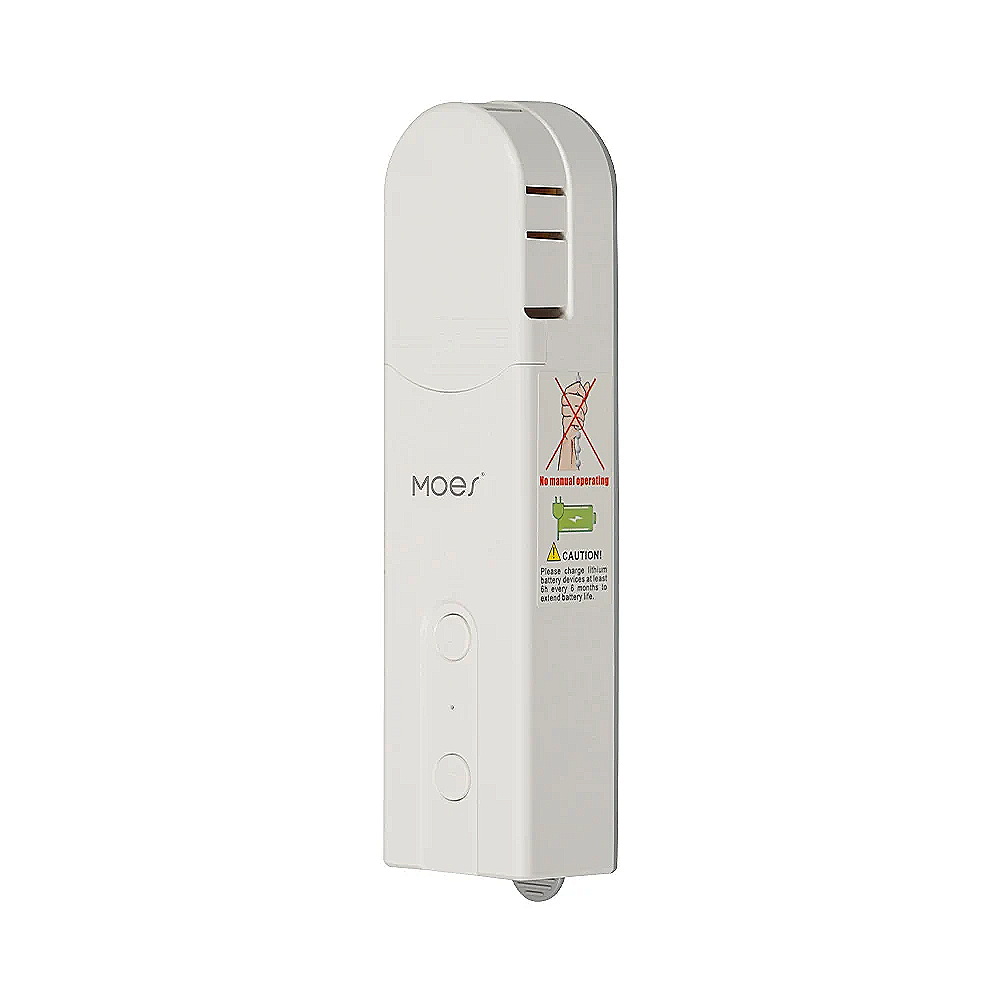

MOES Smart Blinds Drive Motor × 1
Adapter × 1
Screws × 2
Gears × 3
3M VHB Tape × 1
Q&A
Can I share control with family?
Yes, you can share access via the Tuya Smart Life app.
Does it support Google Home or Alexa?
Yes, both are supported.

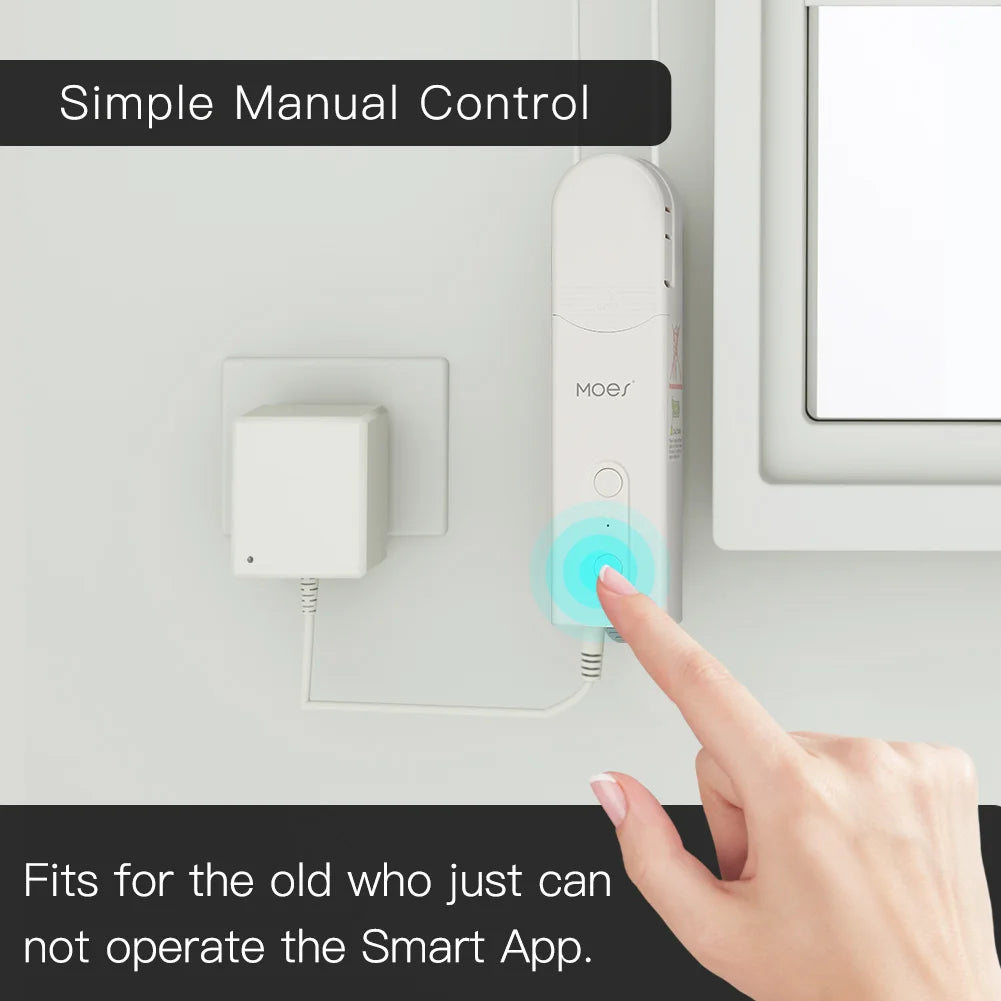

Can older users operate it without the app?
Yes, manual UP/DOWN control is available via the physical buttons.
Is Bluetooth required?
No, it uses ZigBee. No Bluetooth required.
How many motors can the app control?
Up to 7 devices.

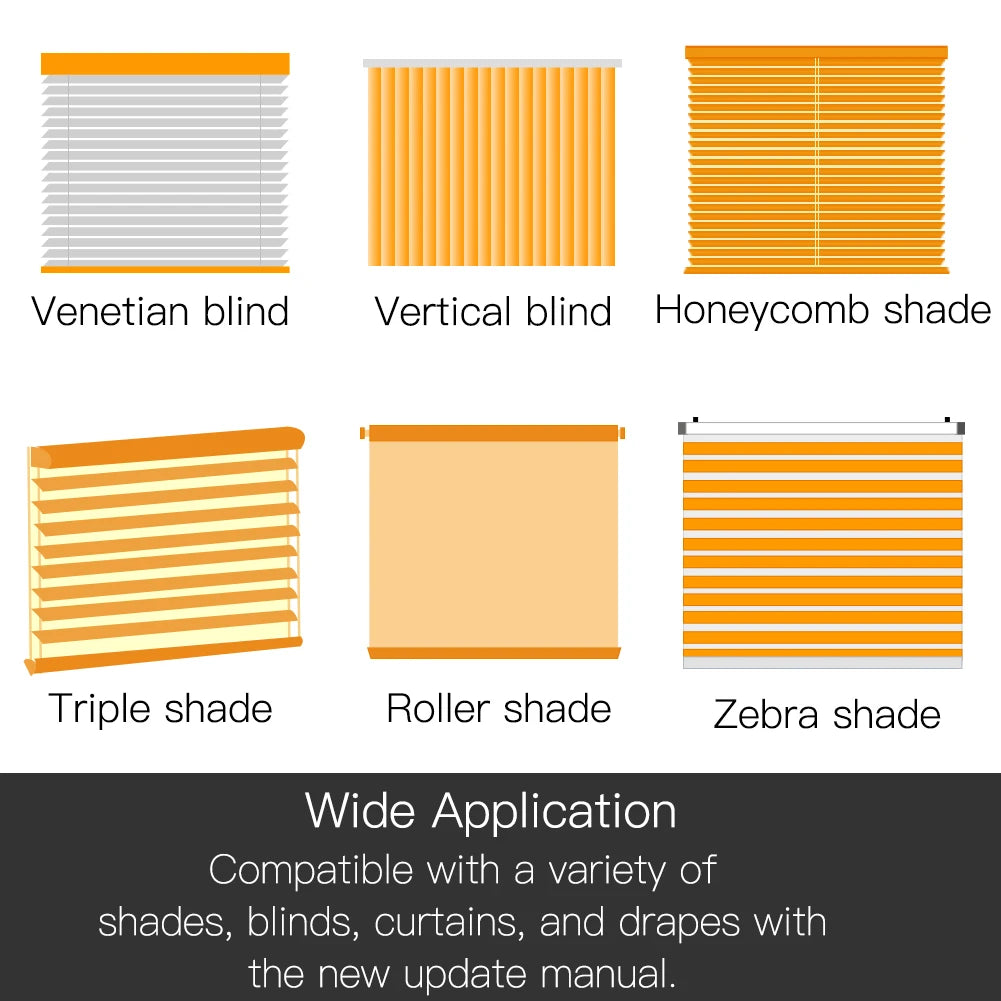

Can I use this motor with cellular, honeycomb, or vertical blinds?
Yes, it supports any looped beaded chain types.

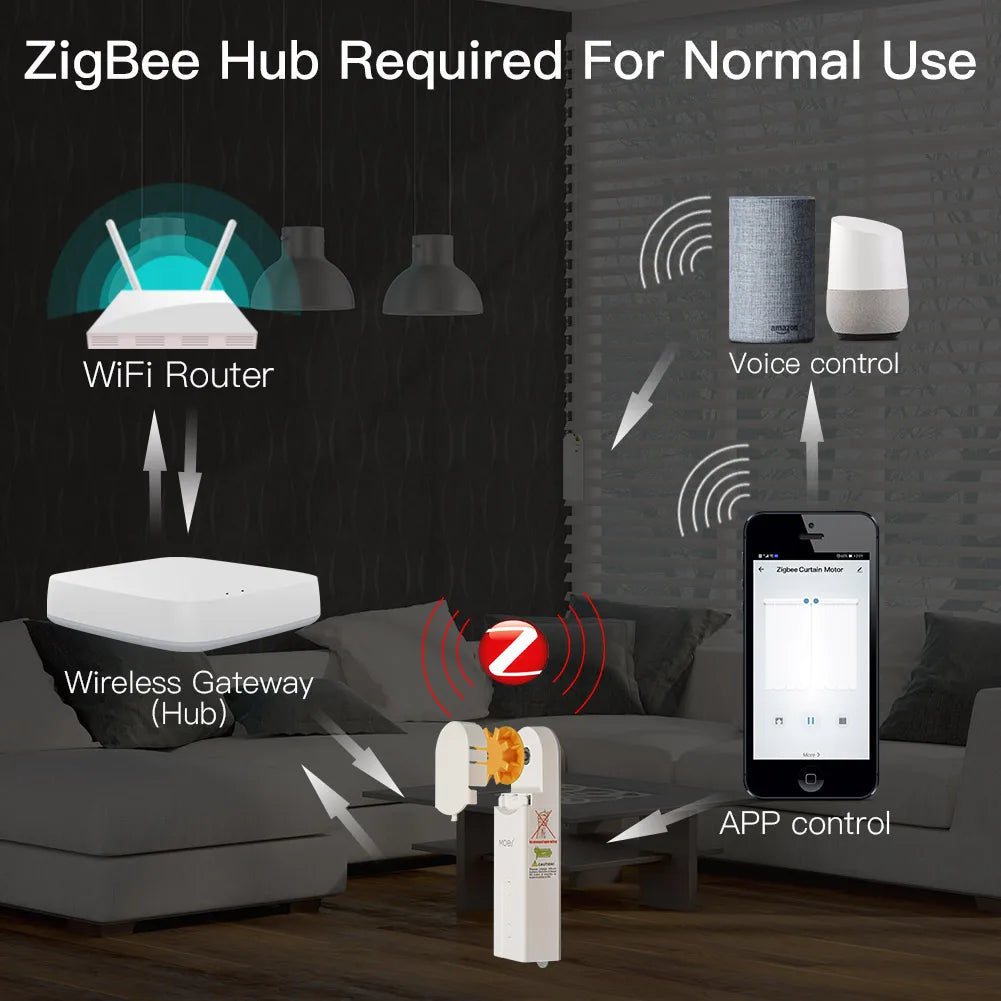

Is a hub required?
Yes, a ZigBee hub is required (not included).
Is the hub included?
No, it must be purchased separately.
