SPECIFICATIONS
Brand Name: MAKERIGH
Battery Included: No

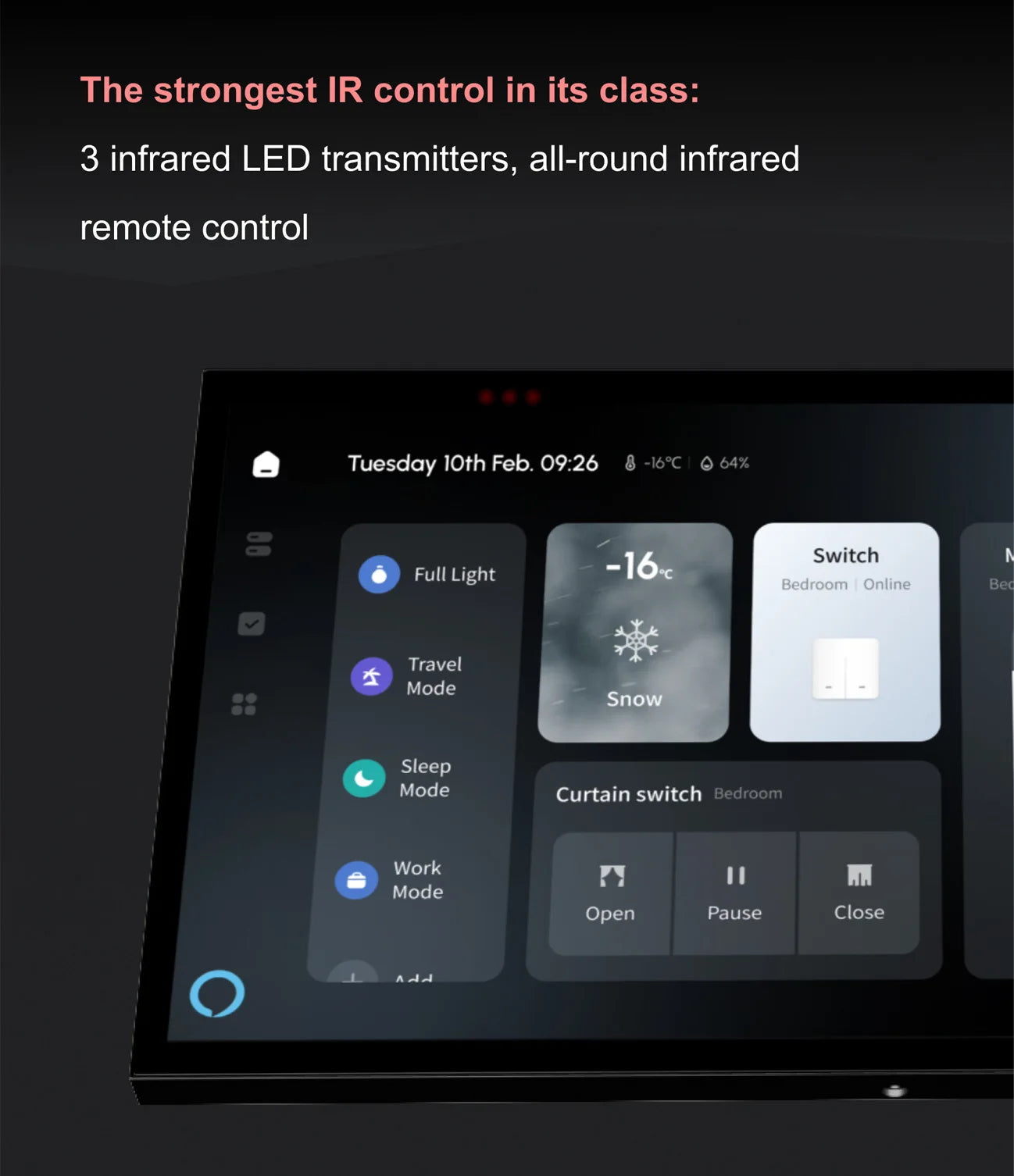

Communication Method: Zigbee, Wi-Fi, IR
Input Voltage: 100–240VAC, 50/60Hz
Operating Humidity: 5%–90% RH (non-condensing)
Operating Temperature: 0–40°C
Power Source: AC, AC
Origin: Mainland China
Product Name: Smart Control Panel 8 Pro
Resolution: 1440 × 720, IPS
Size: 127.5 × 233.5 × 38 mm
Wireless Protocols: Wi-Fi 2.4GHz & 5GHz, Bluetooth, Zigbee
SKU: FKT0349

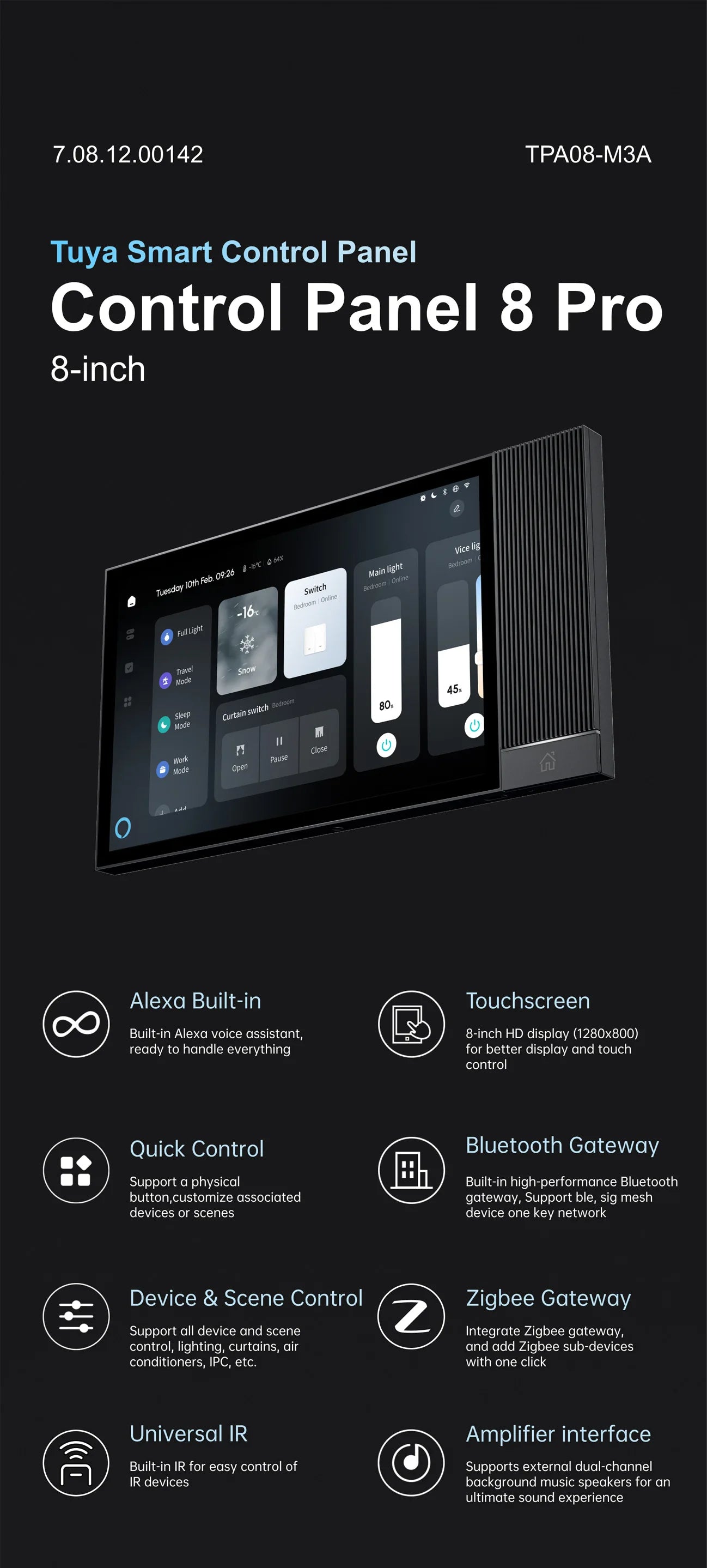

Product Description

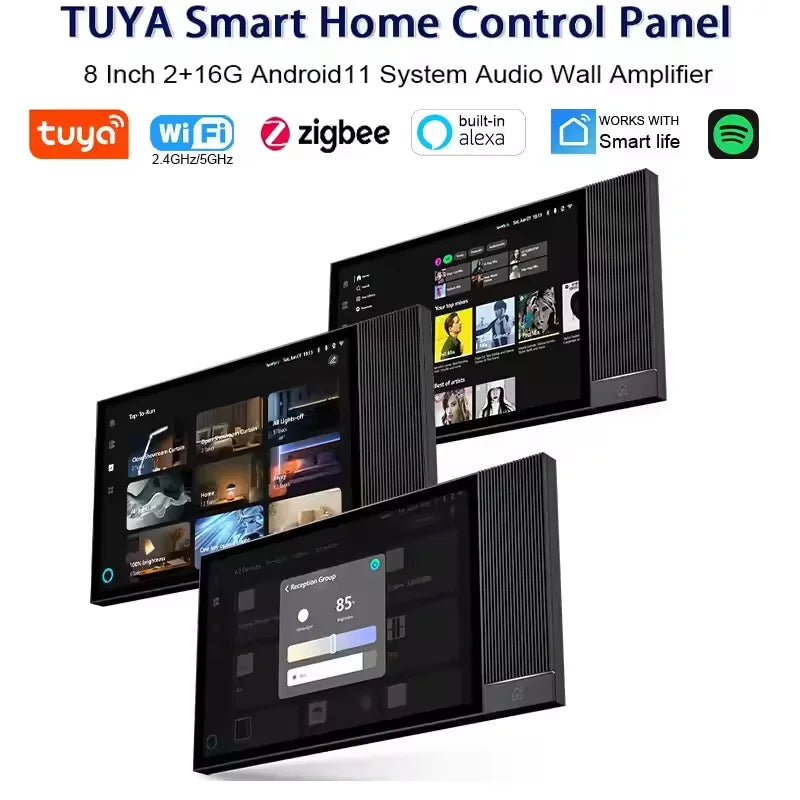

The Smart Control Panel 8 Pro is a centralized Android-powered control unit for smart homes. It functions as a Zigbee/Bluetooth gateway, audio amplifier, touchscreen interface, and scene controller. Designed to mount into a standard 86-size wall box, it provides touch and voice control for seamless device management.

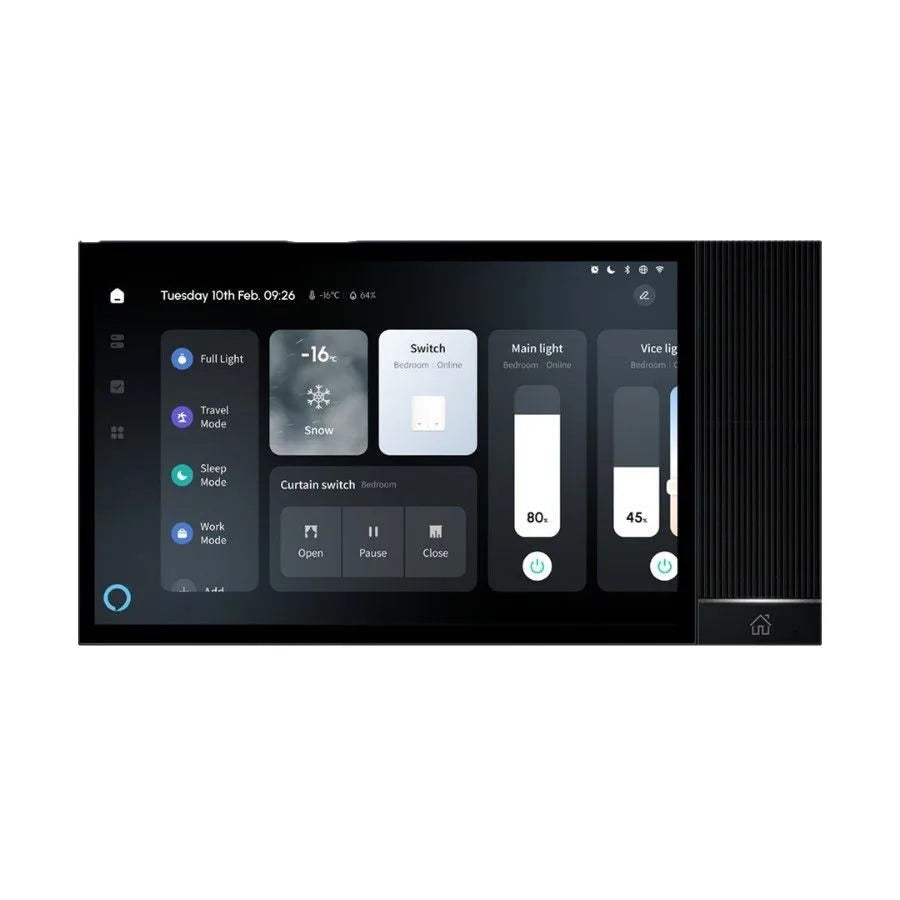

With an 8-inch HD screen, built-in Hi-Fi speakers, dual amplifier outputs, and integrated Alexa assistant, it offers an immersive experience for home automation.
Product Features
Zigbee & Bluetooth Gateway
Equipped with independent Zigbee and BLE chips. Supports Zigbee 3.0, BLE, and BLE mesh sub-devices. Offers local edge control for responsiveness even without internet.
Device Control
Compatible with almost all Tuya ecosystem devices and offers flexible control options.
Scene Control

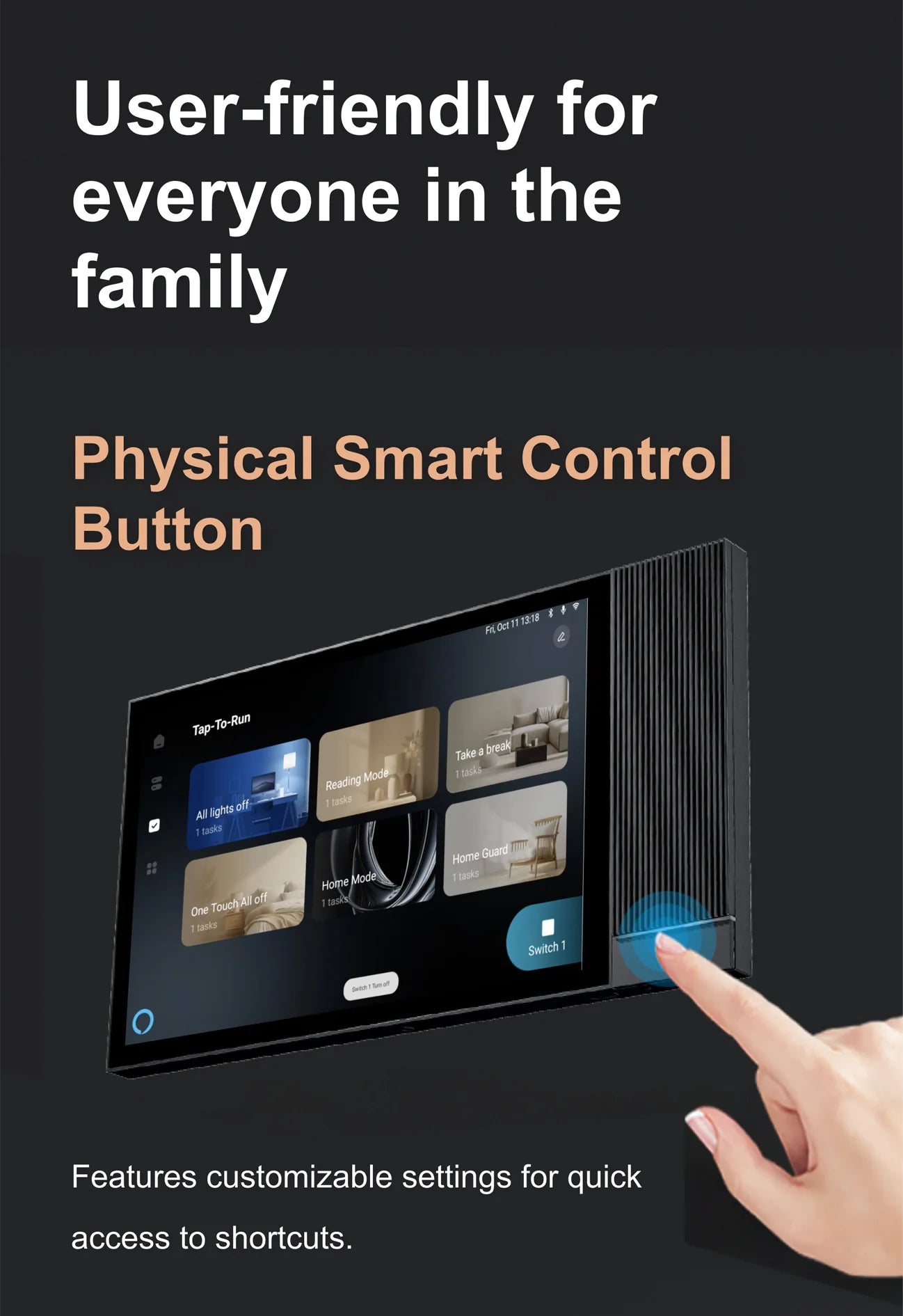

Allows triggering custom scenes via touchscreen, voice, or external button controls.
iShare™ Technology
Enables inter-device interconnection, including video preview, voice calls, and communication between central panels and apps.
Rich Interfaces

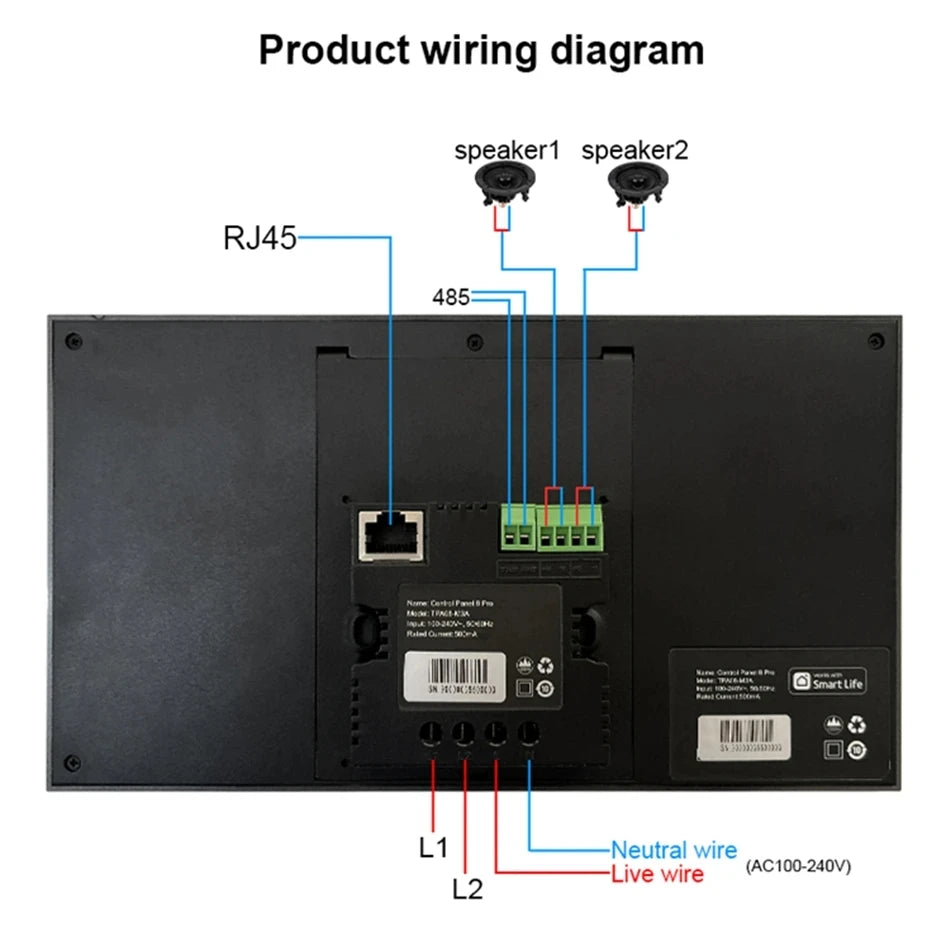

Supports zero-live wiring with dual relays, RJ45 Ethernet, RS485, dual amplifier ports, and other expansion interfaces.
Online Music Playback
Plays music natively or via Bluetooth/audio outputs, supporting home entertainment.
Alexa Built-in
Integrated Alexa allows control via voice, including checking the weather, playing music, or managing smart devices.
Easy Installation
Mounts easily in standard 86 wall boxes. Supports zero-live wire wiring and modular expansion.

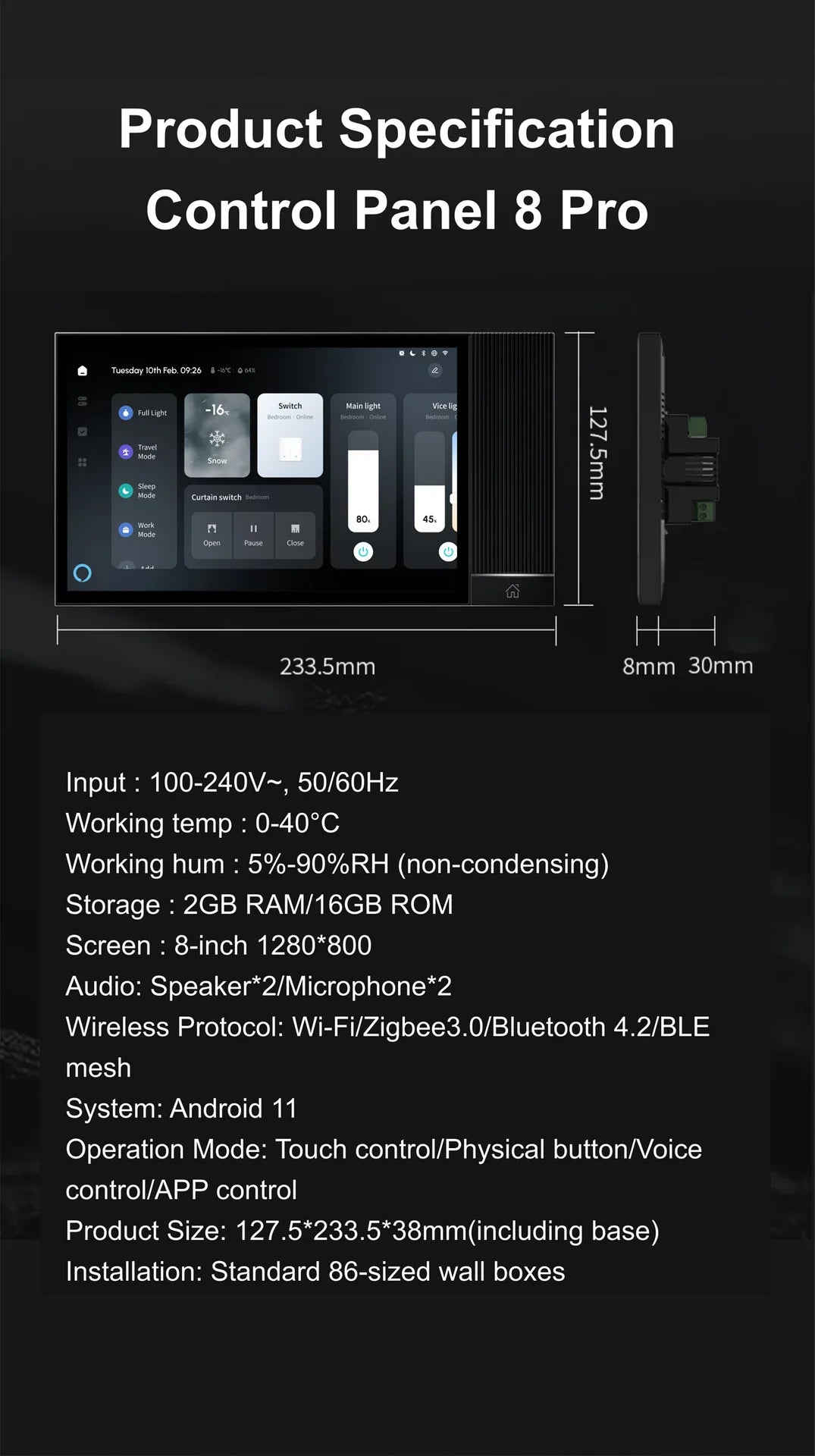

Technical Specifications
Product Type: 8-inch Control Panel MAX Music System
Input Voltage: 100–240VAC ±10%, 50/60Hz
Screen Size: 8 Inches
Resolution: 1280 × 800
CPU: Quad-core high-performance processor
Memory: 2GB RAM + 16GB Storage

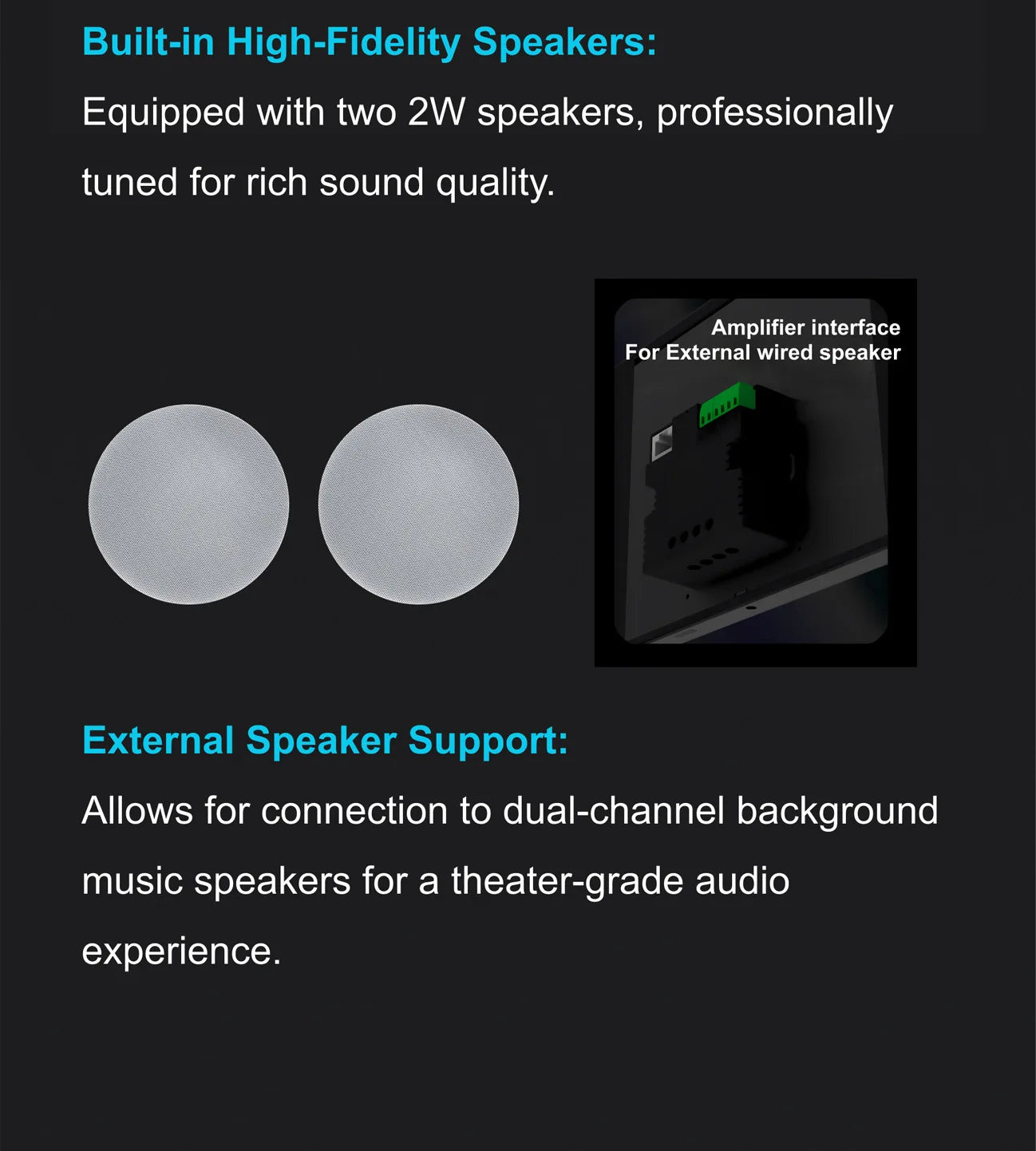

Built-in Speaker: 2 × 2W
Voice Control: Dual microphones
Relay Output: 200VA MAX / 2 ways
Output Power: 2 × 30W (MAX)
Operating System: Android 11
Audio Support: Bluetooth audio output, dual amp ports
Network Support: RJ45, Wi-Fi 2.4GHz/5GHz
Connectivity: Zigbee 3.0, Bluetooth, Wi-Fi, RS485

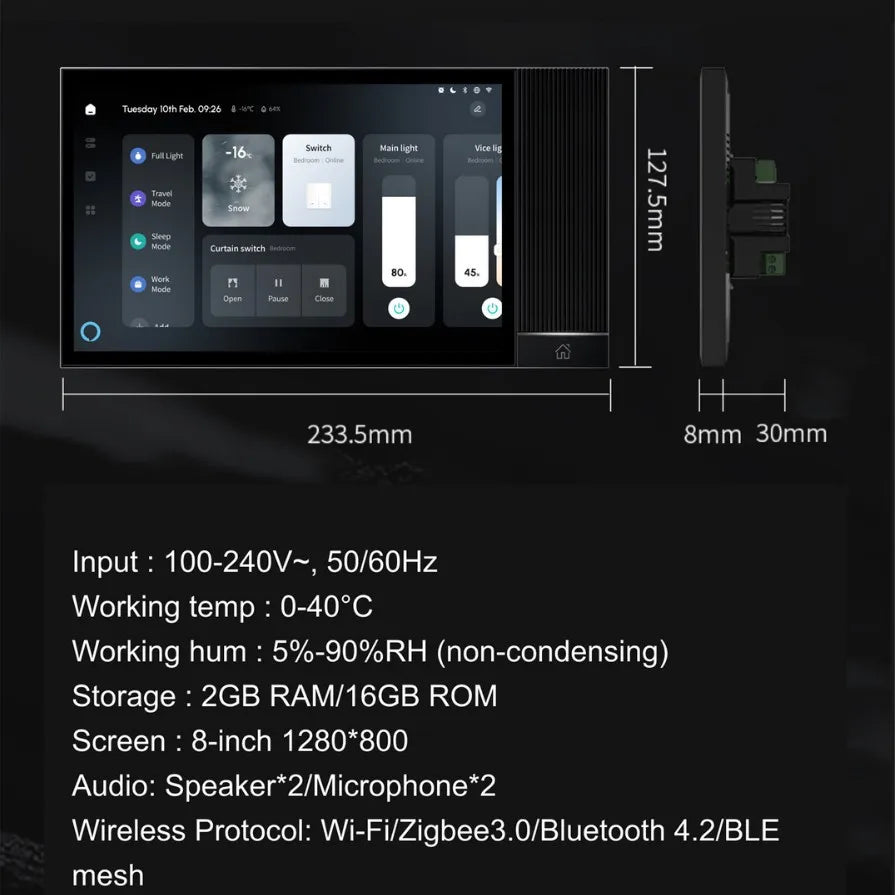

Installation Size (Panel Only): 127.5 × 233.5 × 8 mm
Installation Size (Including Base): 127.5 × 233.5 × 38 mm
Installation Type: Standard 86-sized wall boxes
Important Notes
Third-party app installation is not supported. ADB passwords and SDK access are not available from Tuya.
Power Requirement: Neutral wire required.
Network: Works with Wi-Fi or Ethernet.
Pre-wiring: Recommended for relays, RS485, and security ports.
Box Requirement: Use a plastic concealed box with a depth of at least 40 mm.
Safety: Only professionals should install. Always disconnect power before installation. Not suitable for bathrooms or humid environments. Do not insert PoE cables into standard ports.
