SPECIFICATIONS
Applicable Lights: Stair light
Brand Name: Miboxer
Model Number: BS64
Material: Plastic
Item Type: RGB Controller
Power Source: DC
Max. Load Power: 480W / 20A
Voltage: 24V
Wattage: 480W
Steps: 2–64
Pixels: 1024
PIR Sensing Distance: 3m
Controled Method: PIR
Oscillation Frequency: 2.4GHz
Remote Distance: 30m
Certification: CE, ROHS
Origin: Mainland China
Warranty: 1 year
Hign-concerned Chemical: None
Description:

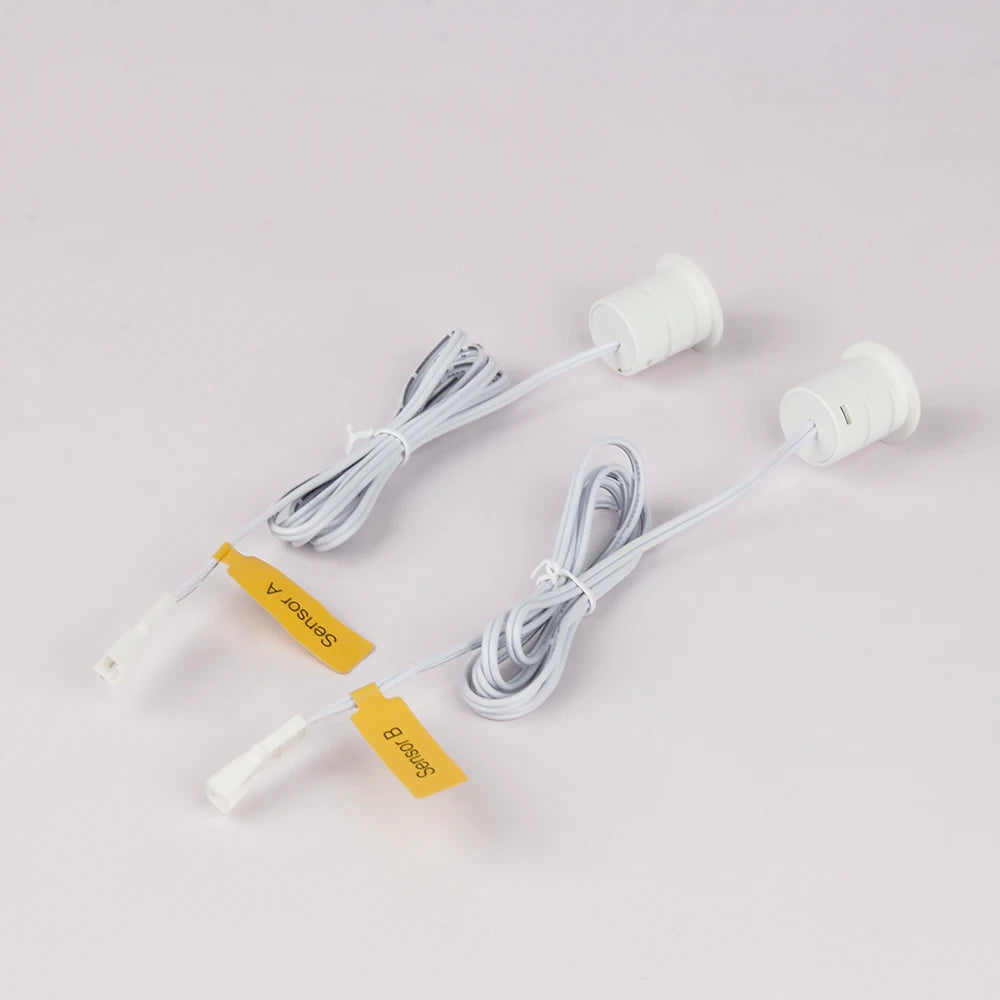

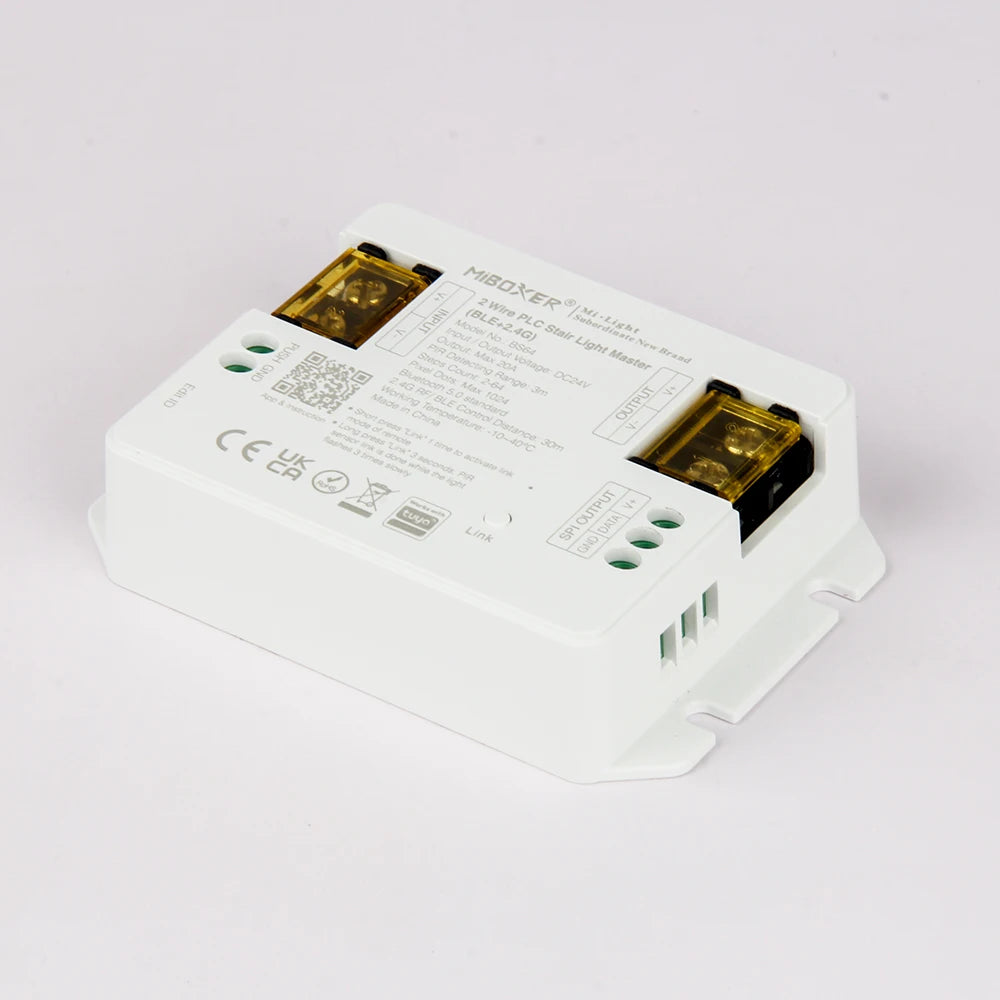

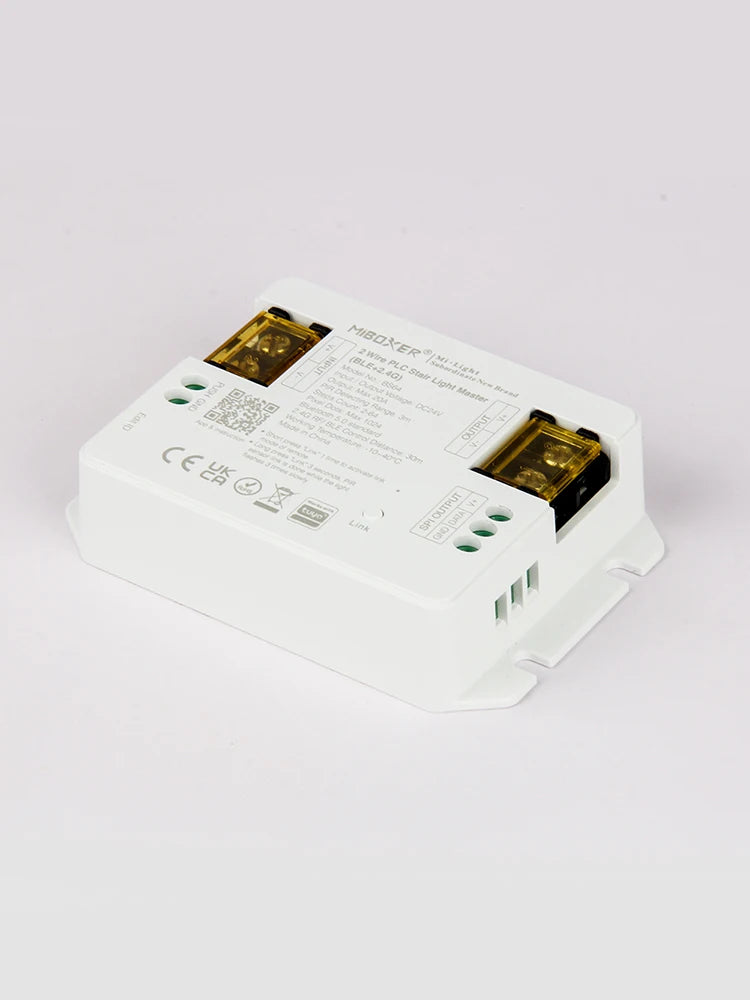

This is a smart stair light controller with dual PIR sensors. When someone approaches the stairs, the lights turn on automatically. The controller supports customizable lighting patterns via a Bluetooth app, and it can also be operated using a 2.4GHz RF remote compatible with most Miboxer RF remotes.
Features:
Bluetooth control
Two-wire control
Supports up to 64 stairs
Step time setting support
Delay lights-off setting support
Night light brightness adjustment
0–24 hour operation schedule (prevents false triggers)
Four light sensing modes
SPI strip parameter setting, color calibration, point setting, color and brightness control
CCT and brightness setting for stair lights
Short circuit and reverse polarity protection
Parameters:

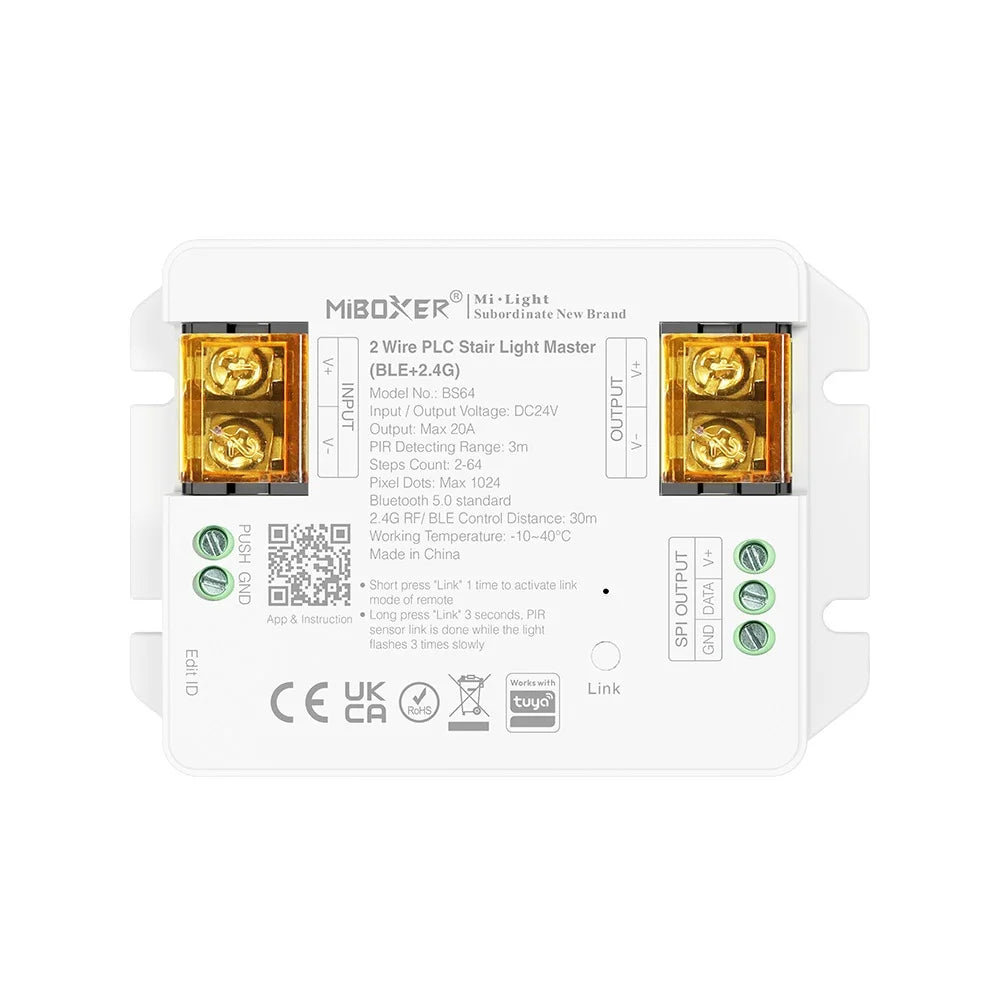

Product Name: Stair Light
Model No.: BS64
Input Voltage: DC24V
Power: 480W / 20A
Communication Protocol: Bluetooth / 2.4GHz RF
Control Distance: Bluetooth: 30m, RF: 30m
Pixels: 1024
PIR Sensing Distance: 3m
Steps Supported: 2–64
Working Temperature: -10~40℃
App: Tuya

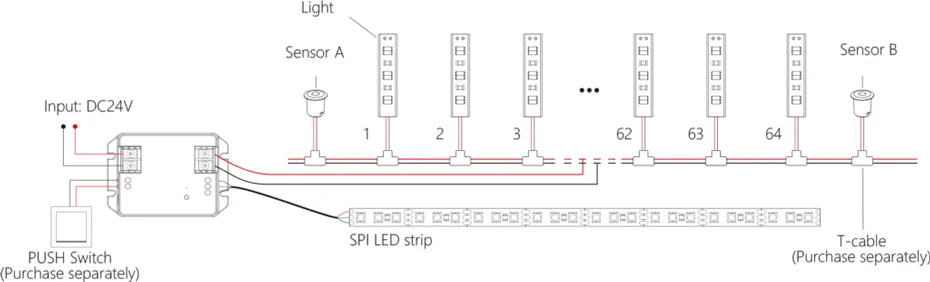

Connection Guidelines:

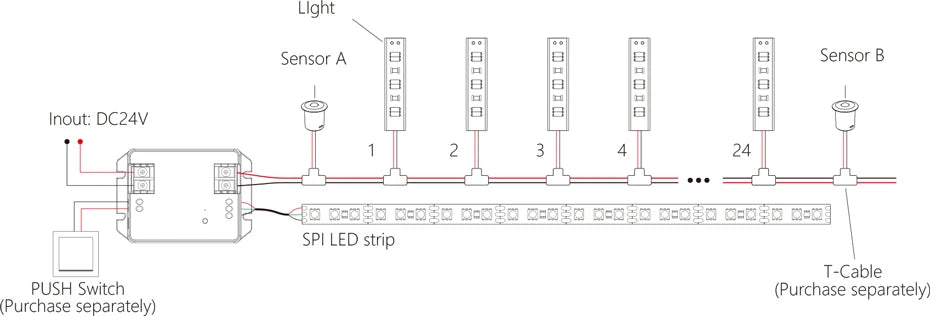

Option 1: For 2–24 steps, use 1.5mm² cable and supply power from the first or last step.

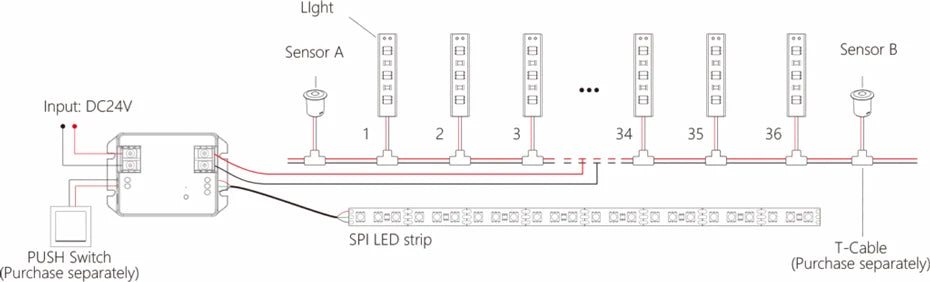

Option 2: For 25–36 steps, use 1.5mm² cable and supply power from the center.
Option 3: For 37–64 steps, use 2.5mm² cable and supply power from the center.

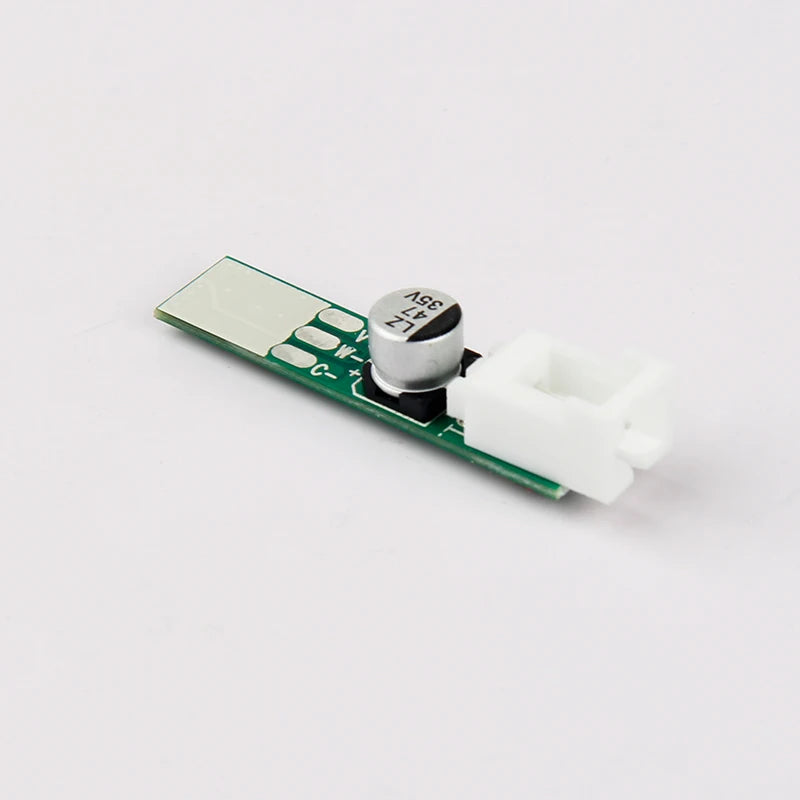

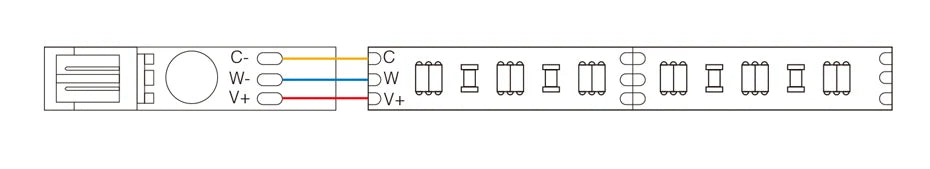

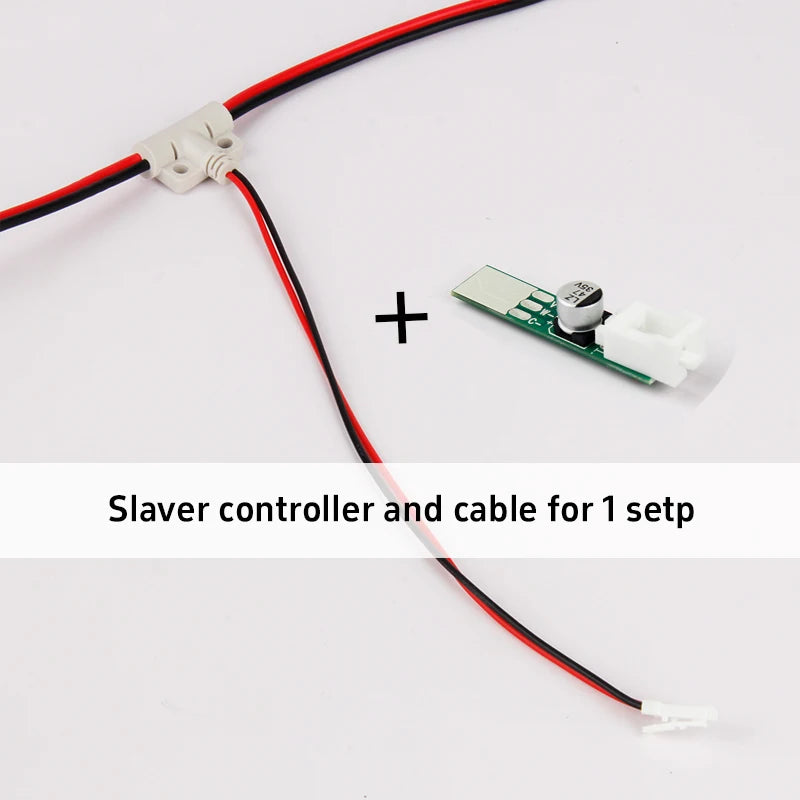

Sub-device: Stair Light Control Board
Product Name: Stair Light Sub-device (Dual White Controller)
Model No.: BS-L2C
Input Voltage: DC24V
Output: 1A/Channel
Total Output: Max 1A
Working Temp: -10~40°C
IP Rating: IP20
Weight: 1.5g
Product Size: 38 × 8 × 10mm

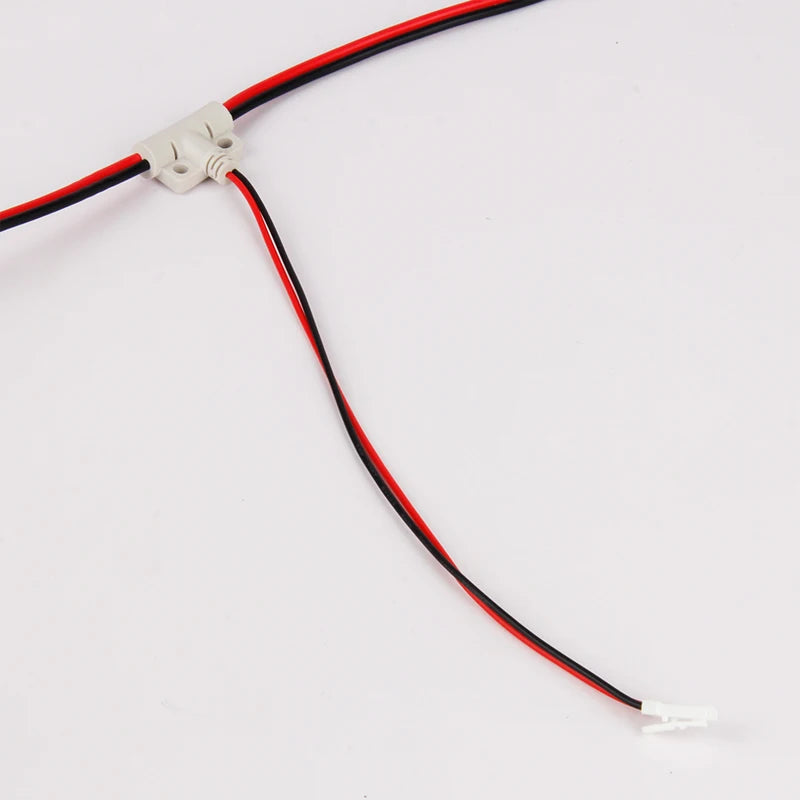

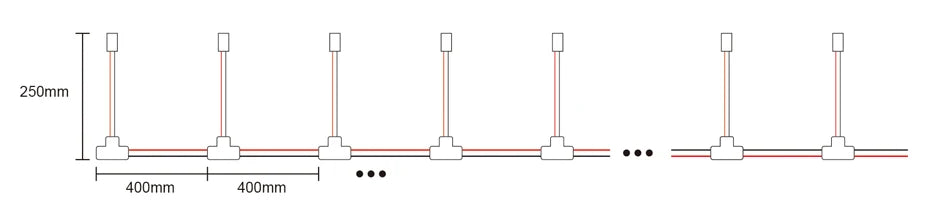

Note: LED strip and accessories (e.g., T-cables) sold separately. Must be used with a stair light master controller.
