Brand Name: Aqara Certification: CE Communication Method: Zigbee Dimensions: 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.) Hazardous Chemicals: None Included Adaptor: Not included Operating Humidity: 0–95% RH (non-condensing) Operating Temperature: -10°C to 40°C (14°F to 104°F) Origin: Mainland China Power Source: Other Rated Parameters (AC): 100–250V, 50/60Hz; Max. 10A, Max. 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED/CFL); Max. 1A, Max. 1/4 HP (Motor) Rated Parameters (DC): 24–30V: Max. 10A, Max. 300W (Resistive Load); 30–60V: Max. 1A, Max. 60W (Resistive Load) Wireless Protocol: Zigbee Zigbee Max Output Power: ≤ 13 dBm Zigbee Operating Frequency: 2405–2475 MHz

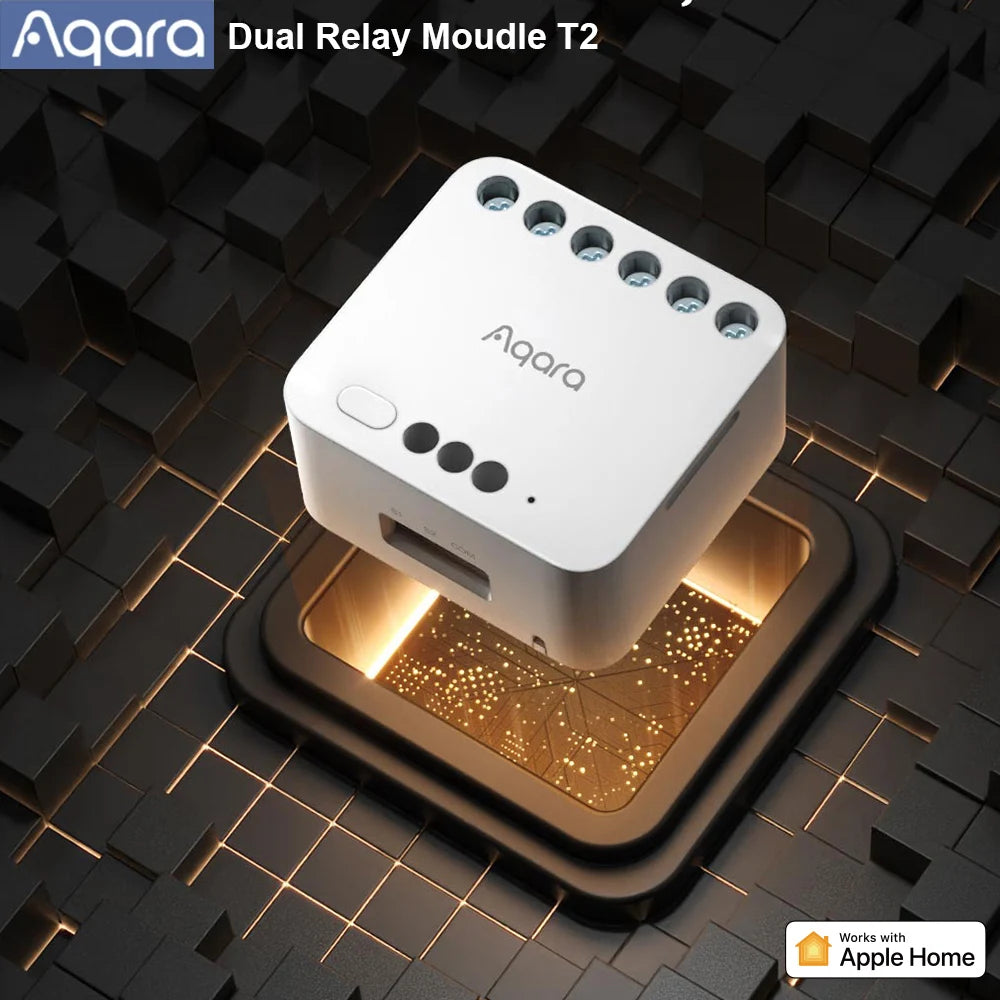

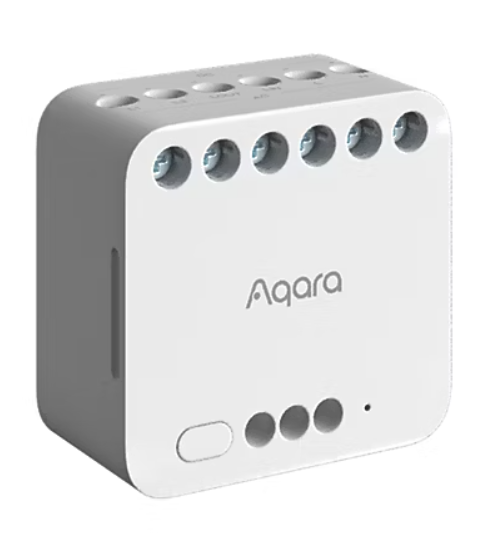

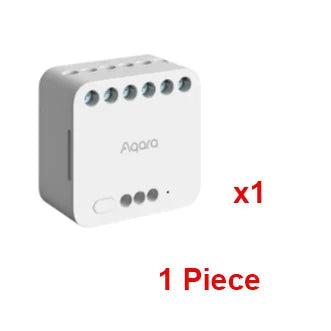

Product Description Model: Aqara Dual Relay Module T2 (China Edition)

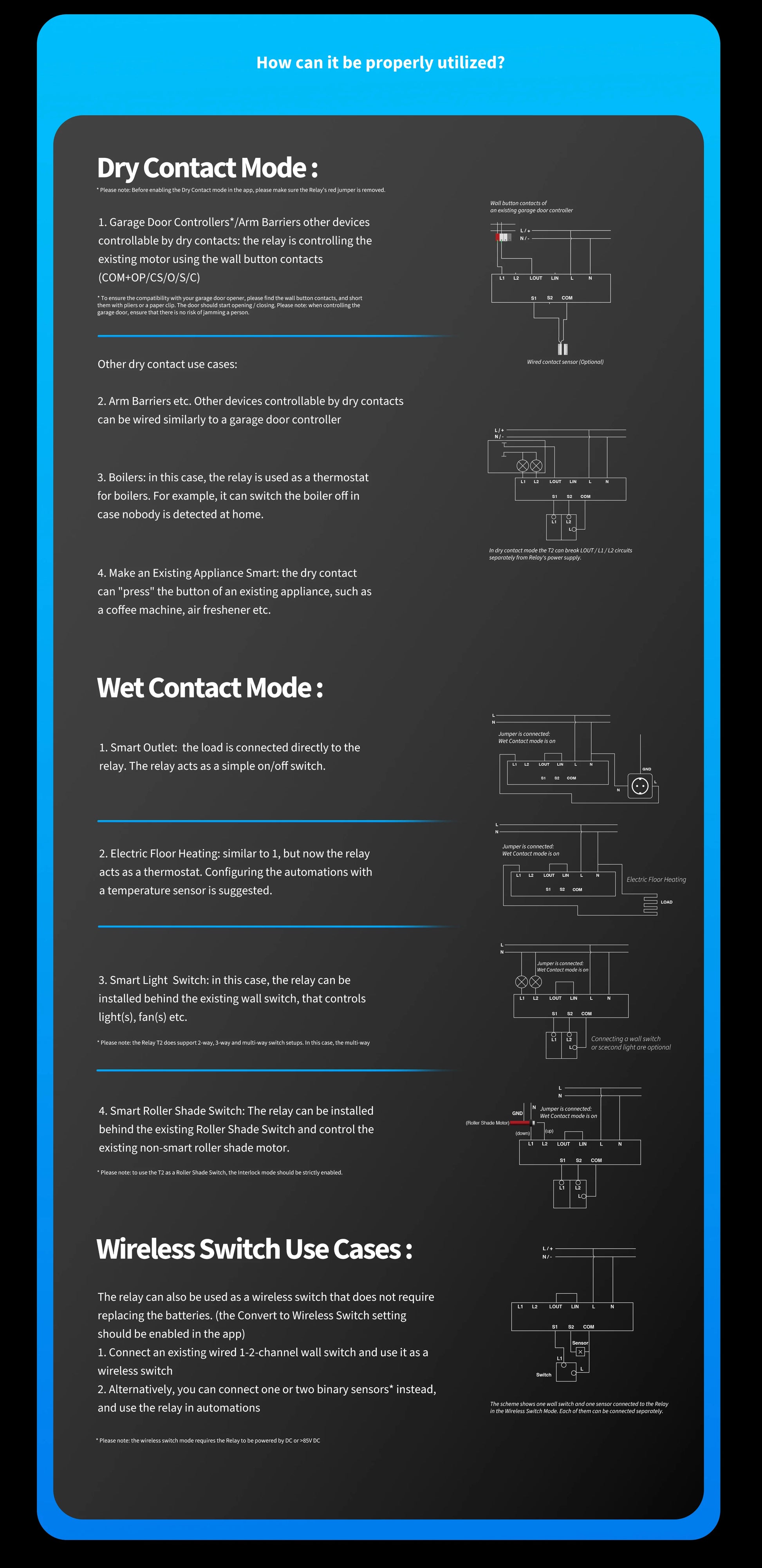

The Aqara T2 Dual Relay Module offers a compact and efficient solution for smart control of wet/dry contacts, motor control, and interlock scenarios. Featuring low power consumption and Zigbee connectivity, it integrates seamlessly with the Aqara Home App and Apple HomeKit, enhancing your smart home ecosystem.
Important Notice
This is the China version of the product. To ensure proper functionality, the Aqara Home App region must be set to Mainland China during setup. Please note: This product is only compatible with Apple HomeKit and the Aqara Home App. It is not compatible with the Mi Home App.
