SPECIFICATIONS

Compatibility: This Aqara device only functions when connected to the Mainland China server, which can be selected in the Aqara app.

Aqara Switches: Aqara Wireless Switch E1
Battery Included: Yes
Brand Name: Aqara
Certification: CE, RoHS
Communication Method: Zigbee
High-Concerned Chemical: None
Hub: Requires hub for operation
Inbox Adaptor: No
Model Number: Aqara E1 Wall Switch
Origin: Mainland China
Power Source: AC
Scale: Aqara E1 Switch
State of Assembly: Ready-to-Go

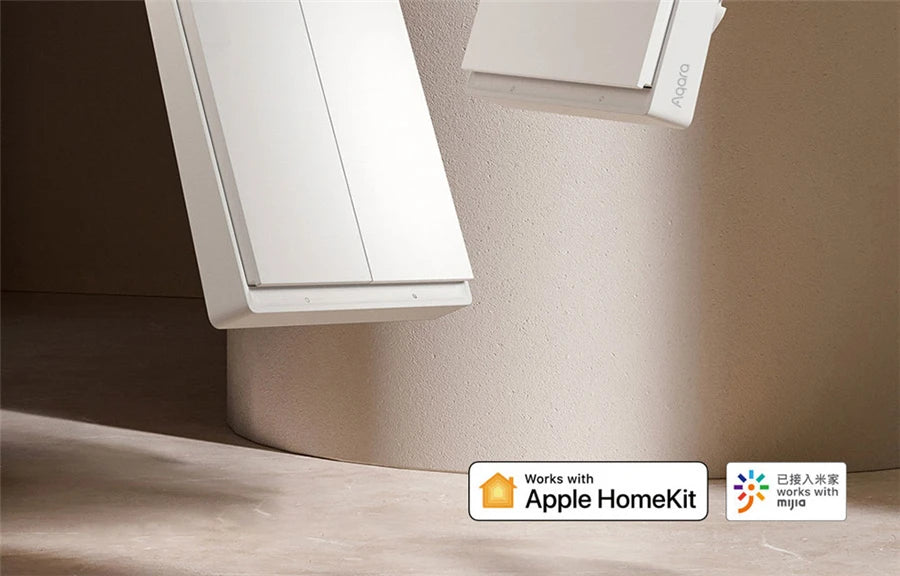

Support: Apple HomeKit App
Support 2: Mi Home Mijia App
Switch Smart: AQARA switch
Aqara: Aqara Smart Wall Switch E1
Aqara E1: Aqara Wall Switch E1
Aqara E1 Switch: Switch No Neutral
Aqara E1 Switch: Switch With Neutral E1

Product Title

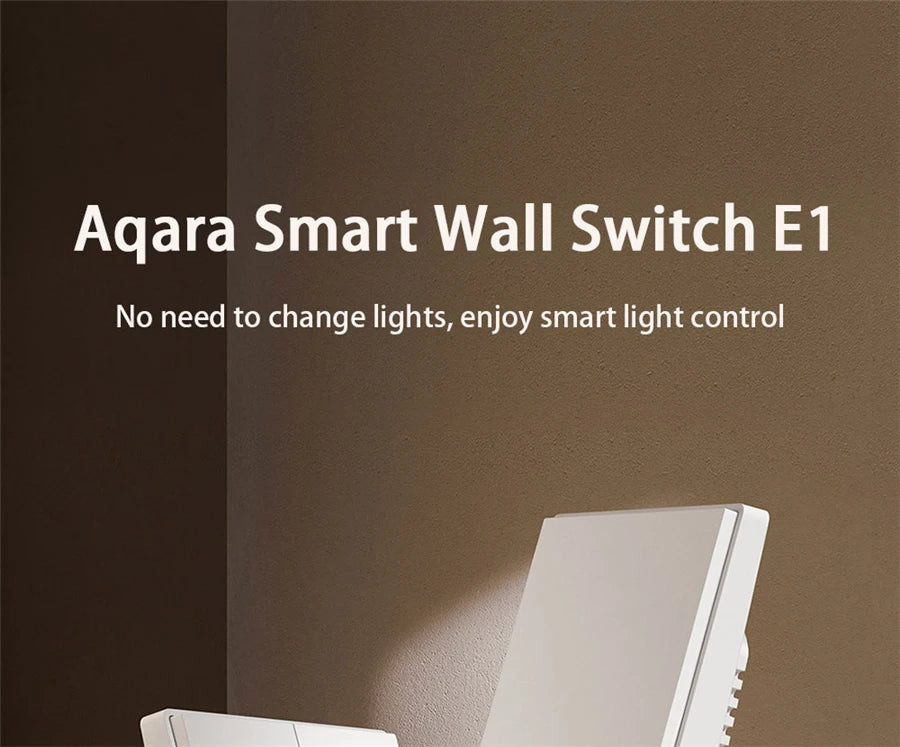

Aqara Smart Wall Switch E1 ZigBee 3.0 Remote Control Smart Home Light Button No With Neutral Fire Wire For Xiaomi Home HomeKit App

Important Notes

This is the Mainland China version. If the switch cannot connect to the app, ensure the region in your mobile app settings is set to Mainland China and verify that the hub gateway is successfully connected.

This product has three specifications: with neutral switch, no neutral switch, and wireless switch. Two colors are available: white and grey. Please verify your desired specification and color before purchasing.

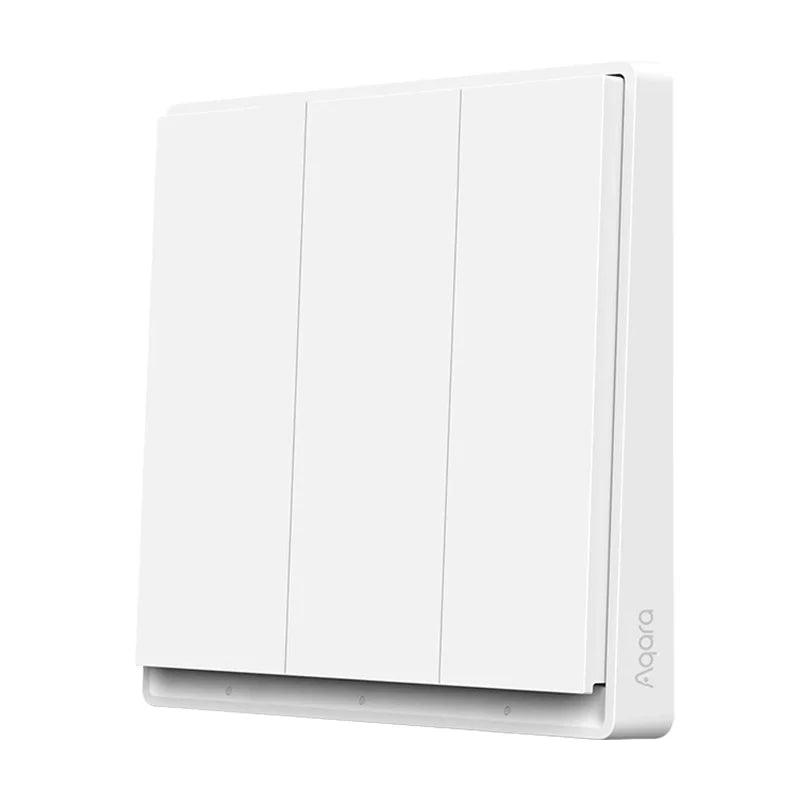

The back of the 1-key and 2-key versions is round. The back of the 3-key version is square.

To connect the switch in the mobile app, first connect an Aqara ZigBee 3.0 hub. The gateway must be purchased separately.

This switch must work with an Aqara ZigBee 3.0 gateway to be used in the mobile app. Compatible gateways include Gateway M1S 2022, M1S (2nd Gen), M2, M2 2022, E1, M100, Smart Hub M3, and Camera G3 gateway version.

The wall switch version can be wired and used to control any light directly or through the app. The wireless version cannot be wired and can only control Mijia smart bulbs or lights via the app.

Wireless Version

This version requires a Zigbee gateway hub for smart remote control functionality.

Model (1 key): WXKG16LM
Model (2 keys): WXKG17LM
Cannot be wired
Matches with Xiaomi or Aqara smart bulbs or lights via ZigBee 3.0
Portable and allows control from anywhere
Wireless Connection: ZigBee 3.0
Built-in Battery: CR2032
Compatible Apps: Mi Home, Aqara Home, HomeKit

Aqara Smart Wall Switch E1 (No Neutral)

Single Rocker (1 Key)
Model: QBKG38LM
Dimensions: 86 x 86 x 30.15 mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V~, 50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 95% RH, no condensation

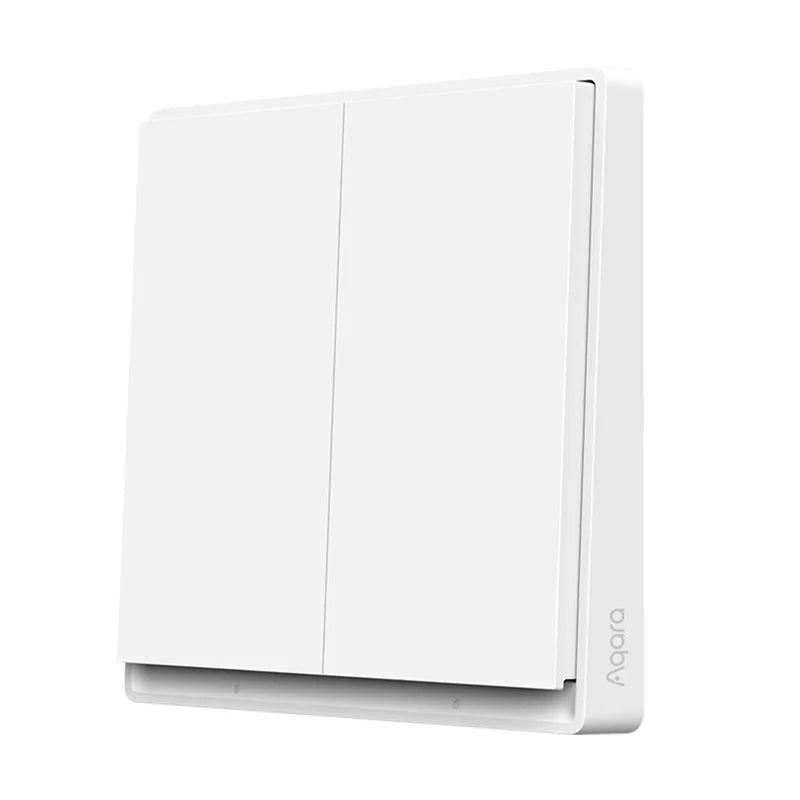

Double Rocker (2 Keys)
Model: QBKG39LM
Dimensions: 86 x 86 x 30.15 mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: 220V~, 50Hz
Rated Power: Max 1100W, Min 3W
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 95% RH, no condensation

Aqara Smart Wall Switch E1 (With Neutral)

Single Rocker (1 Key)
Model: QBKG40LM
Dimensions: 86 x 86 x 30.15 mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 10A 220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 95% RH, no condensation

Double Rocker (2 Keys)
Model: QBKG41LM
Dimensions: 86 x 86 x 30.15 mm
Wireless Connectivity: Zigbee 3.0
Rated Voltage: Max 5A 220V~, 50Hz
Rated Power: Max 1100W
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 95% RH, no condensation
