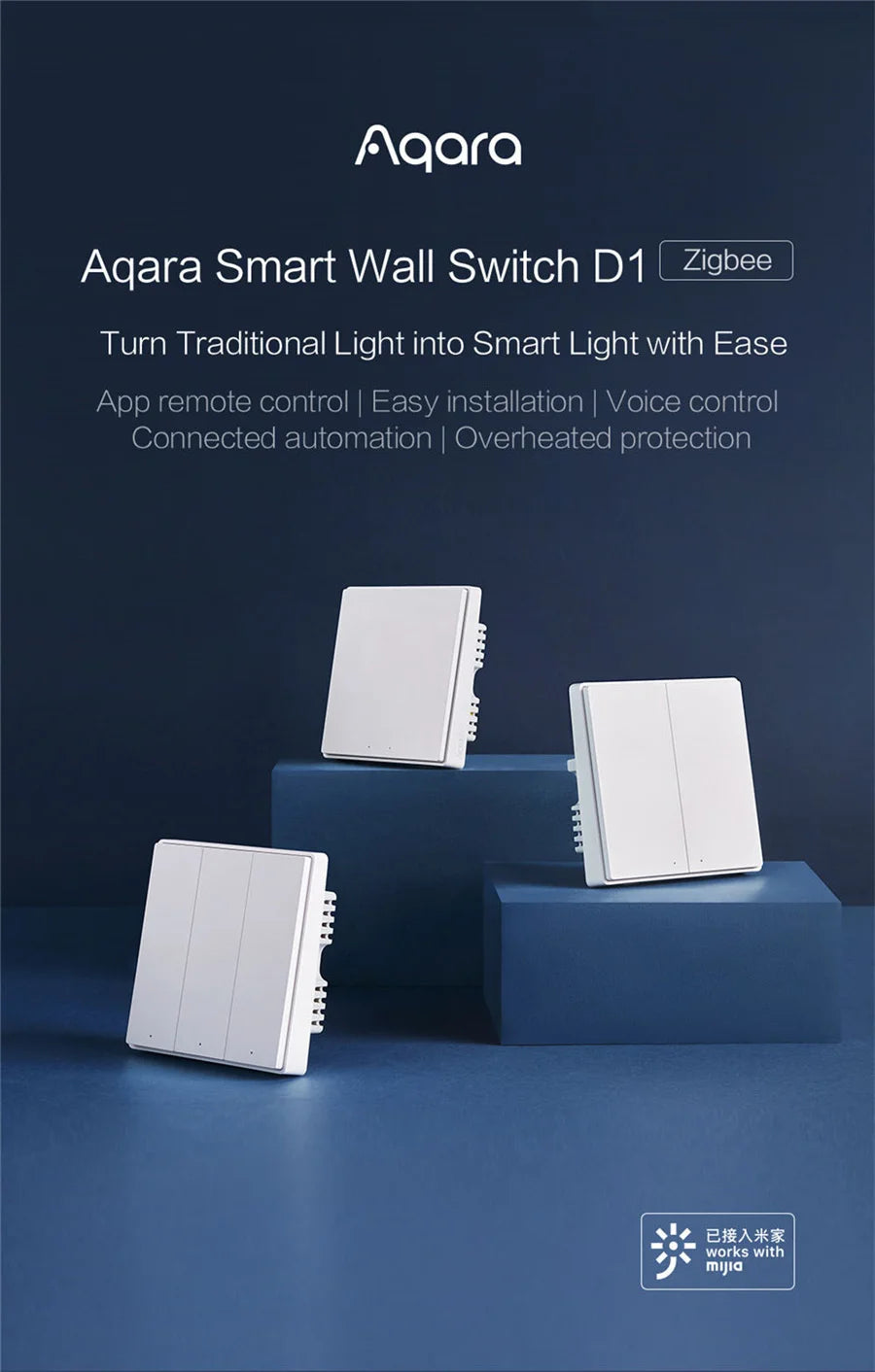

Product Name: Aqara Smart Switch D1 Zigbee Wireless Light Switch (1/2/3 Button) – With or Without Neutral
Compatibility: Works with Xiaomi Mijia, Mi Home App, Apple HomeKit (via compatible hub)
Connectivity Protocol: Zigbee
Plug Type: EU
Control Channels: 2 or more (depending on version)
Battery Included: Yes (CR2032 for wireless models)
Power Source: AC (Wired Models), Battery (Wireless Models)
Certification: CE, RoHS
Origin: Mainland China
Assembly State: Ready-to-Go
Packaging Includes: Switch unit (model-dependent), user manual (gateway sold separately)
Note: Requires Zigbee-compatible hub such as Aqara Hub M1S, M2, or Xiaomi Gateway 2/3

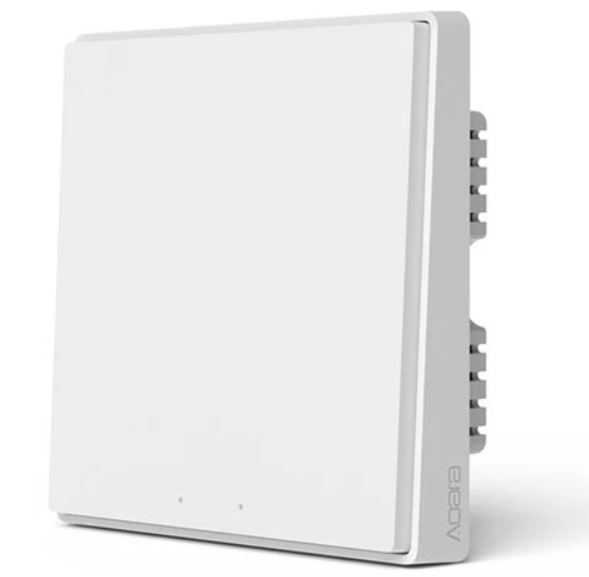

Aqara Smart Switch D1 (No Neutral Required)

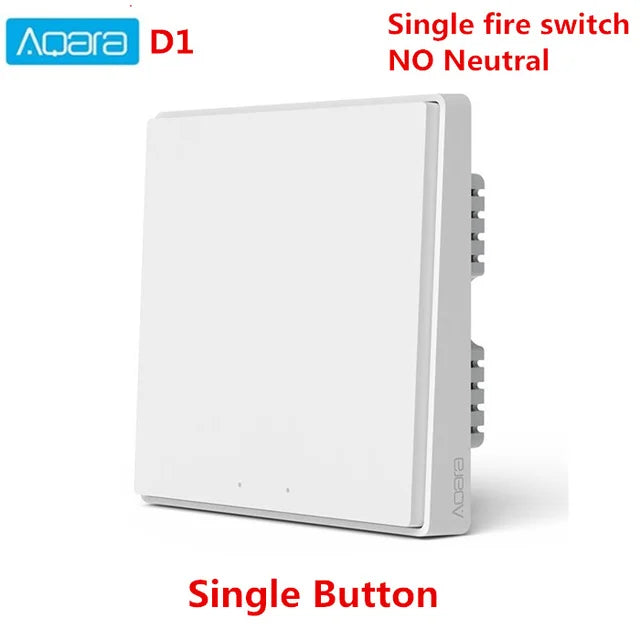

Single Rocker
Model: QBKG21LM
Dimensions: 86 × 86 × 42.85 mm
Rated Voltage: 220V ~ 50Hz
Load Capacity: Max 800W, Min 3W
Operating Temperature: 0°C ~ 40°C
Humidity: 5% ~ 95% RH (non-condensing)

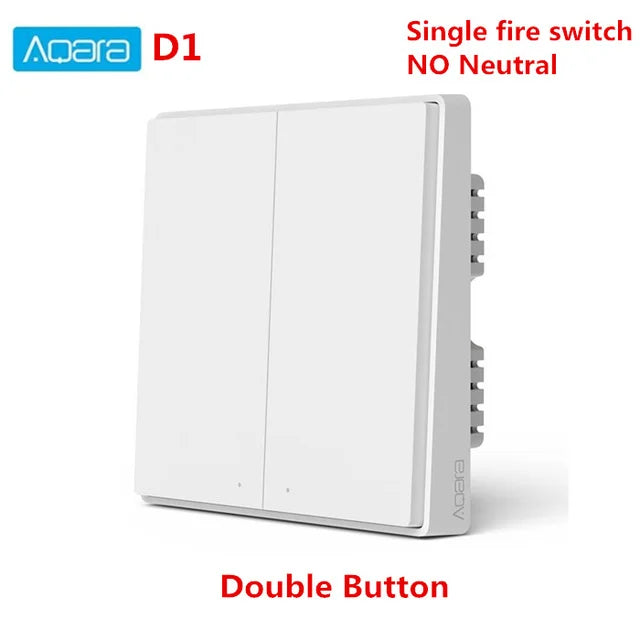

Double Rocker
Model: QBKG22LM
Dimensions: 86 × 86 × 42.85 mm
Load Capacity: Max 1600W, Min 3W

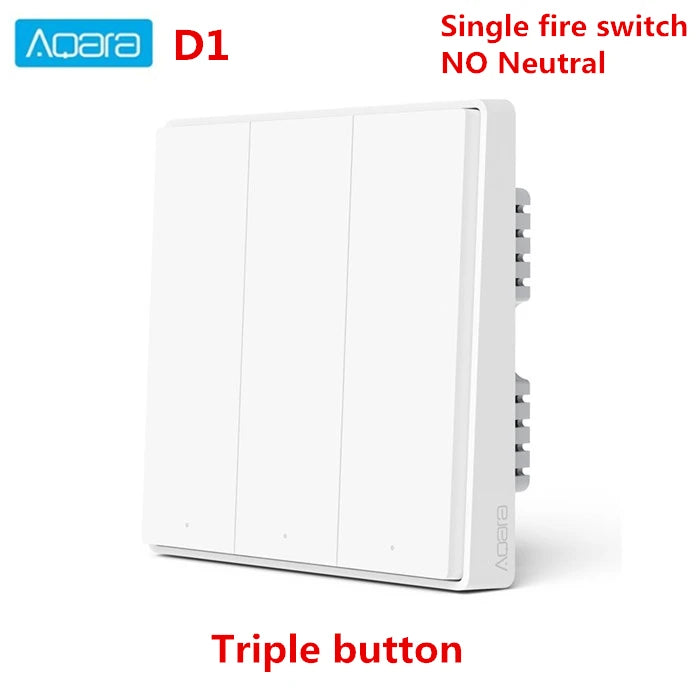

Triple Rocker
Model: QBKG25LM
Dimensions: 86 × 86 × 39.85 mm
Load Capacity: Max 1600W, Min 3W
Aqara Smart Switch D1 (Neutral Required)

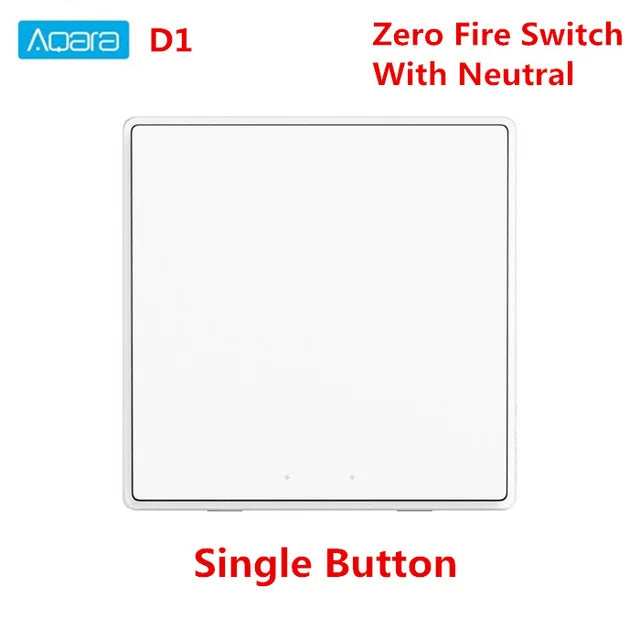

Single Rocker
Model: QBKG23LM
Dimensions: 86 × 86 × 42.85 mm
Rated Voltage: Max 10A, 220V ~ 50Hz
Load Capacity: Max 2200W
Operating Temperature: 0°C ~ 40°C
Humidity: 5% ~ 95% RH (non-condensing)

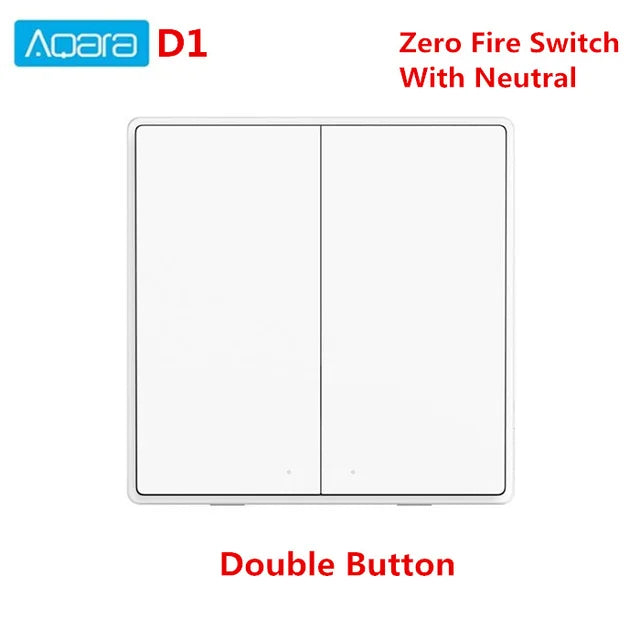

Double Rocker
Model: QBKG24LM
Dimensions: 86 × 86 × 42.85 mm
Load Capacity: Max 2200W

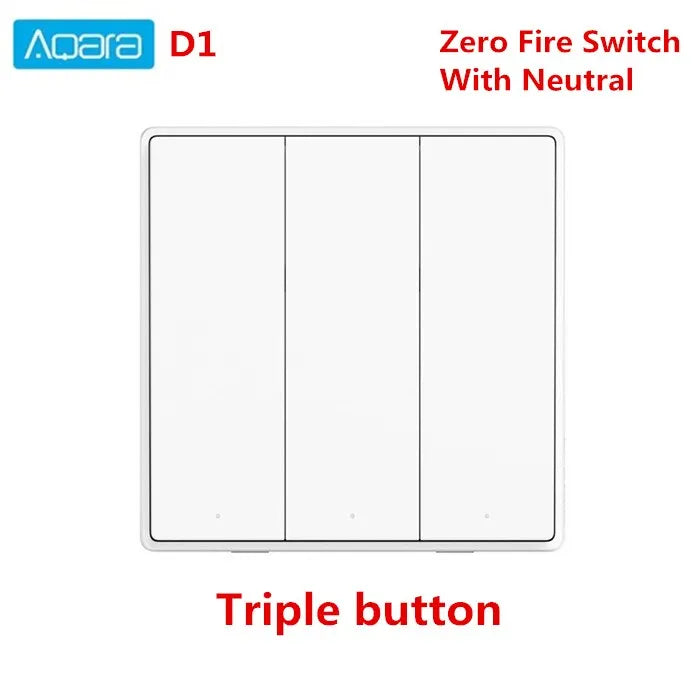

Triple Rocker
Model: QBKG26LM
Dimensions: 86 × 86 × 39.85 mm
Load Capacity: Max 2200W

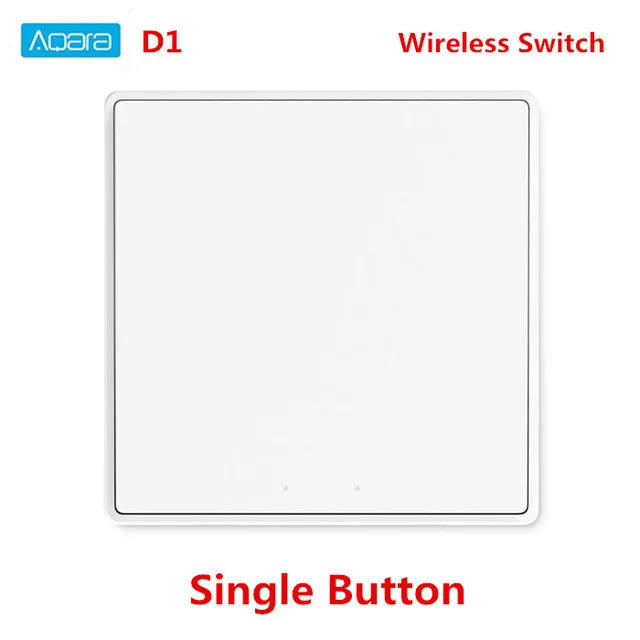

Wireless Key (Remote Version)
This version is wireless-only and does not require wiring.
It can only control other Zigbee-enabled smart lights within the Xiaomi ecosystem.
Supports portable use for flexible placement and functions as a smart trigger (e.g., doorbell, SOS alert).
Wireless Frequency: 2.4 GHz (2400–2483.5 MHz)
Wireless Connection: Zigbee
Power Supply: Built-in CR2032 battery
App Support: Mi Home (Xiaomi), Aqara Home (via gateway)
Key Features
Voice control supported via Apple HomeKit and Alexa when used with a compatible Zigbee hub.
Requires hub such as Aqara M1S, M2, or Xiaomi Gateway 2/3 to function.

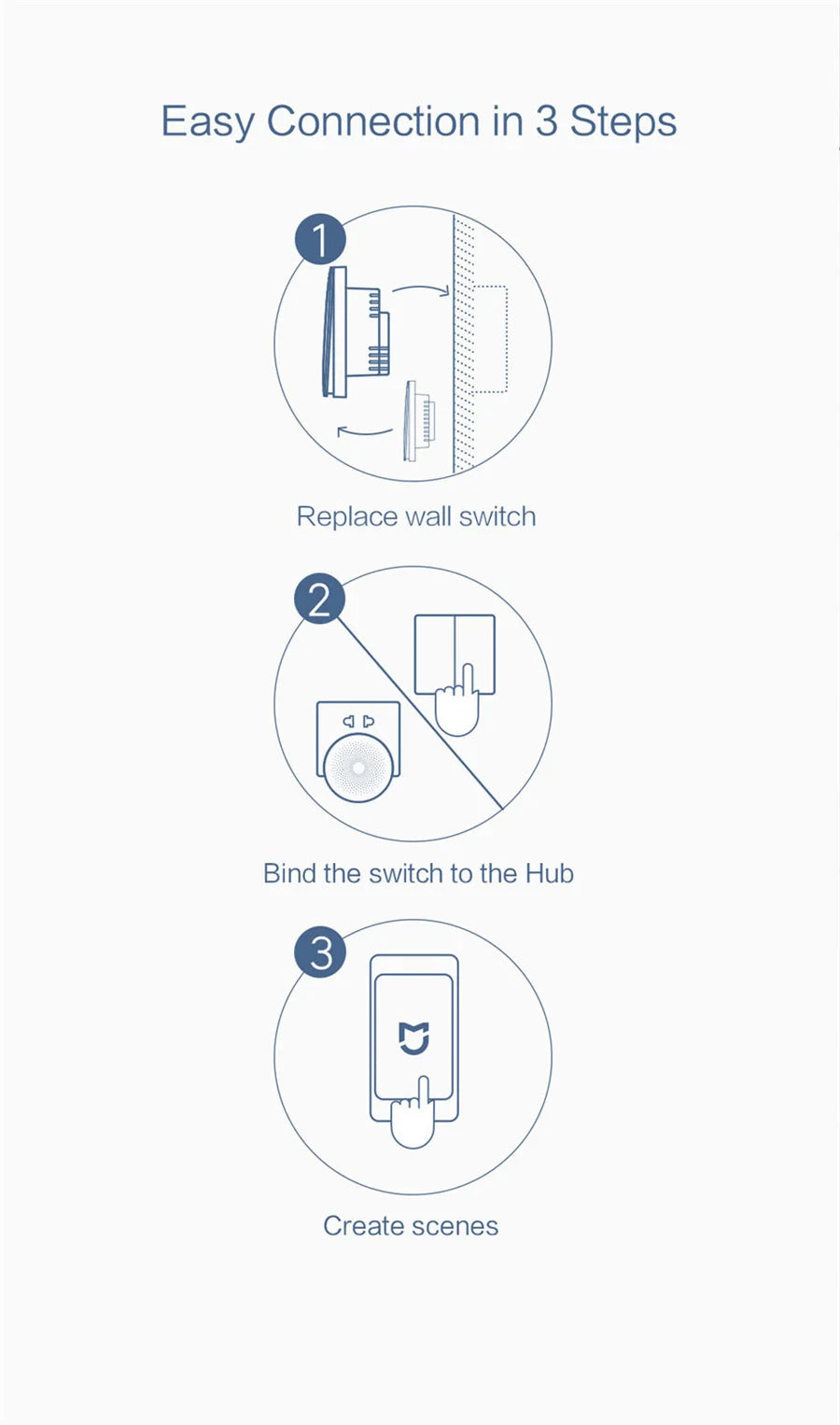

Standard 86 mm square wall plate for easy installation.

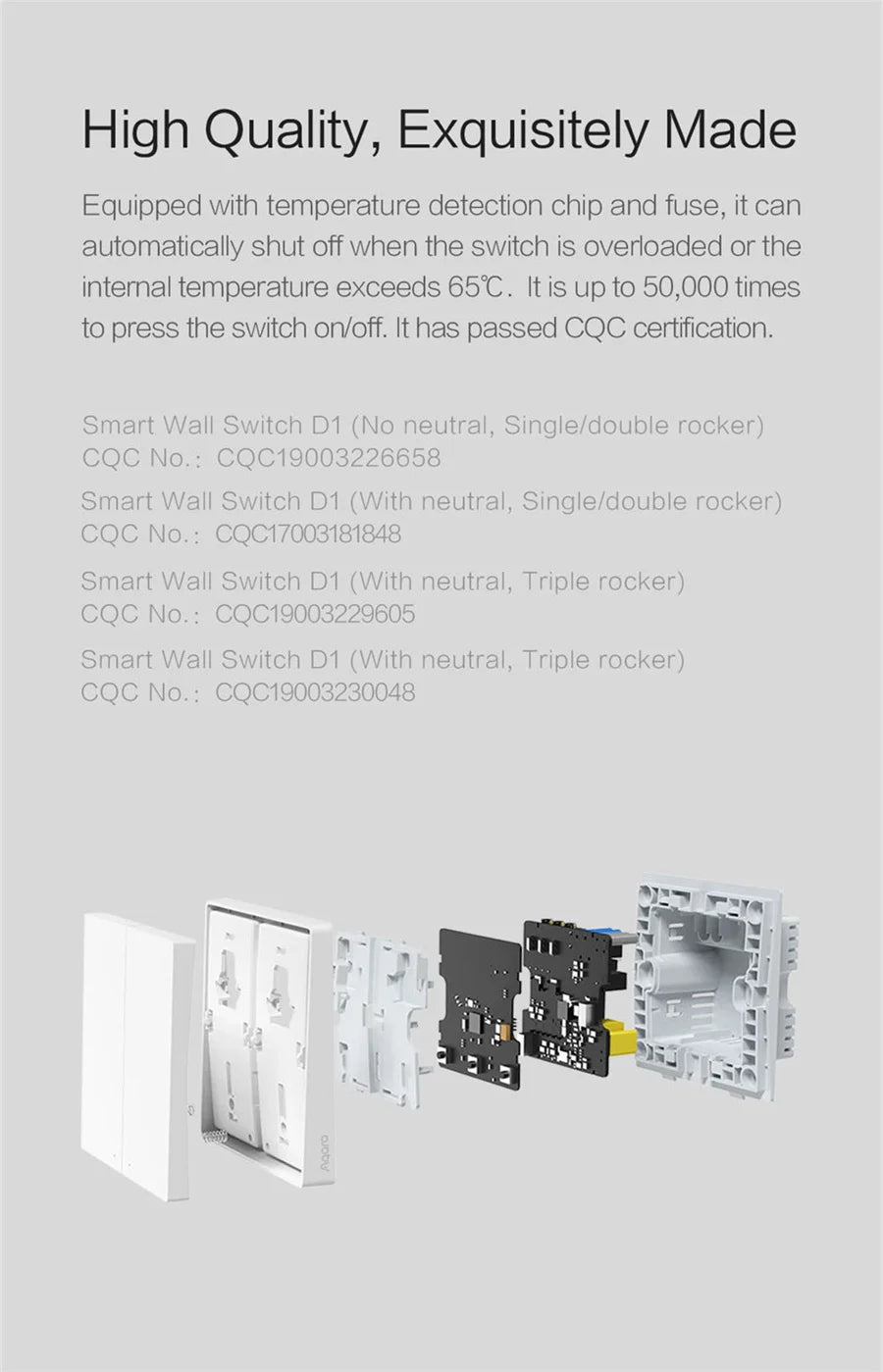

Includes overheat and overload protection for wired versions.
Neutral wire models feature energy monitoring capabilities.
