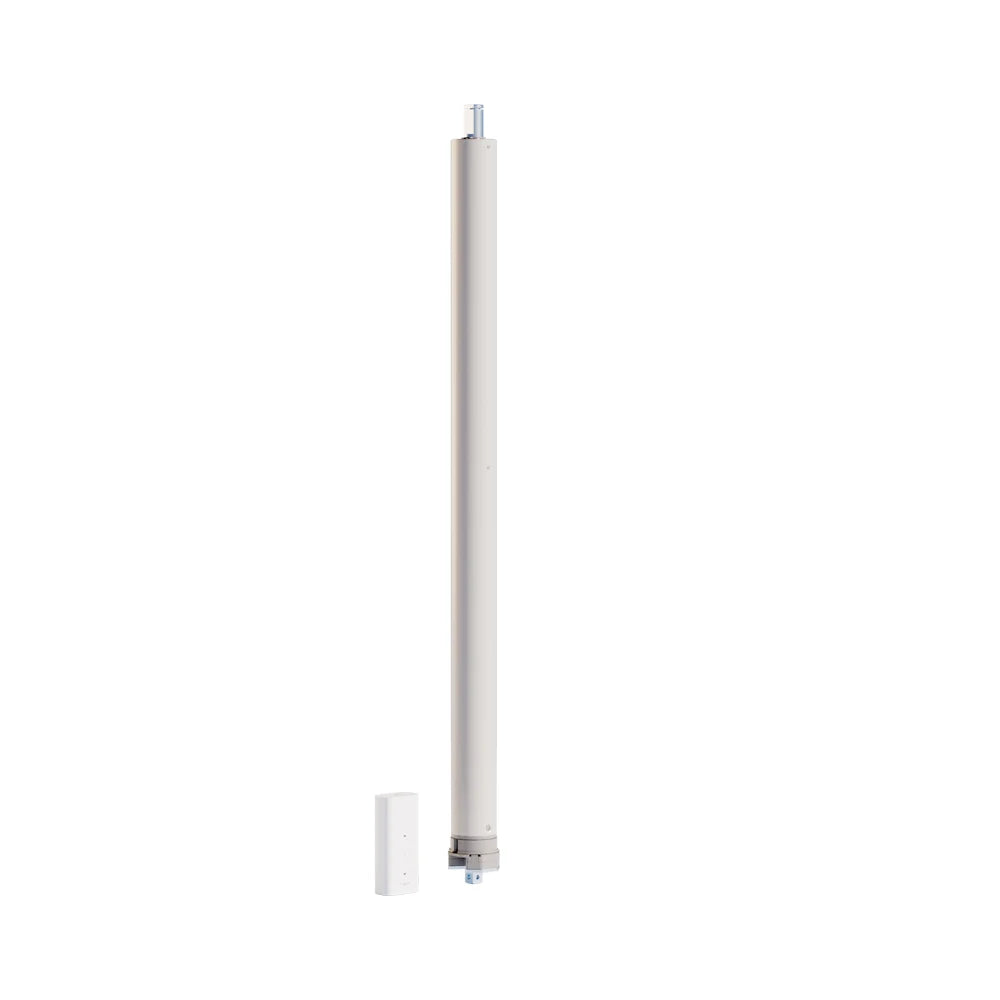

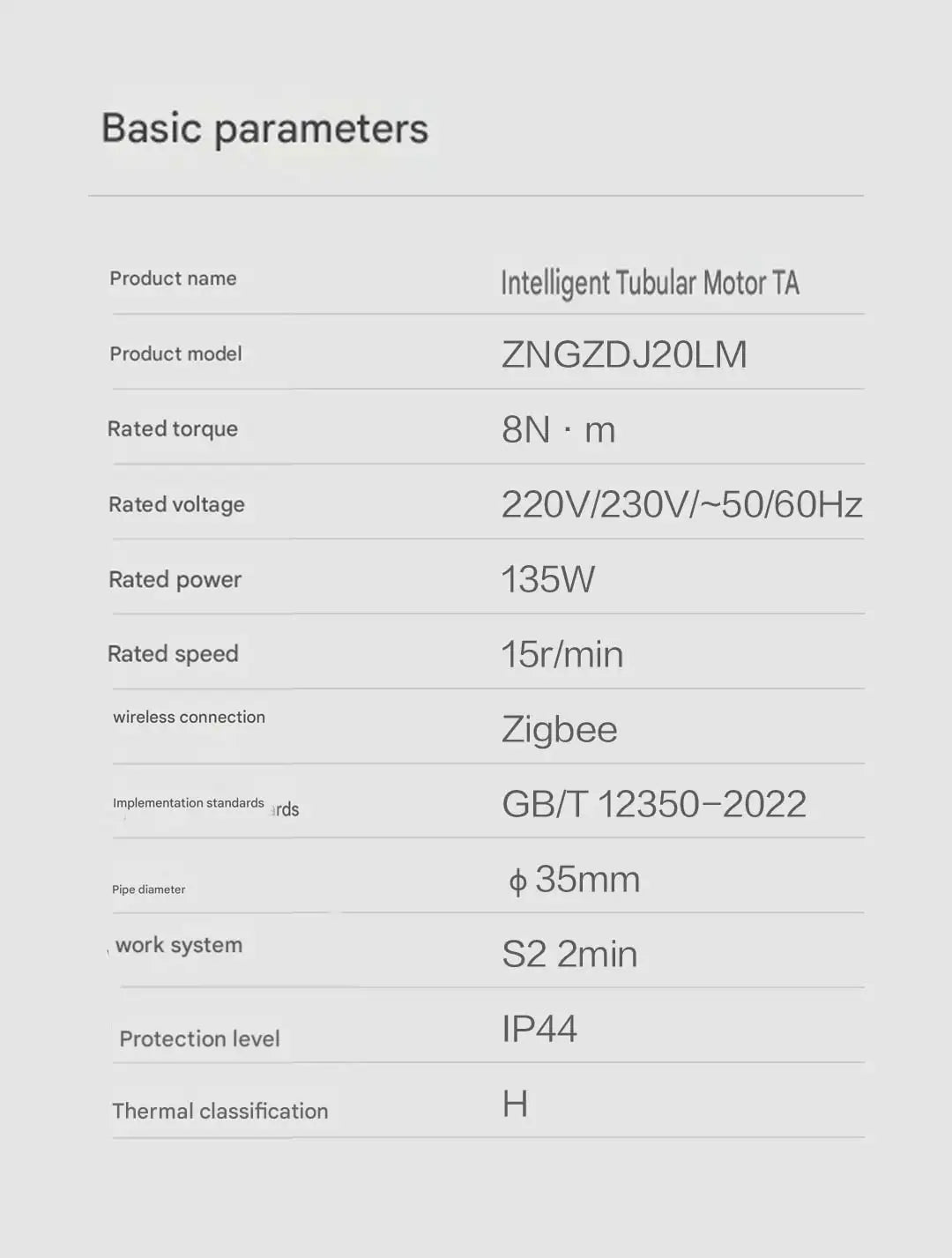

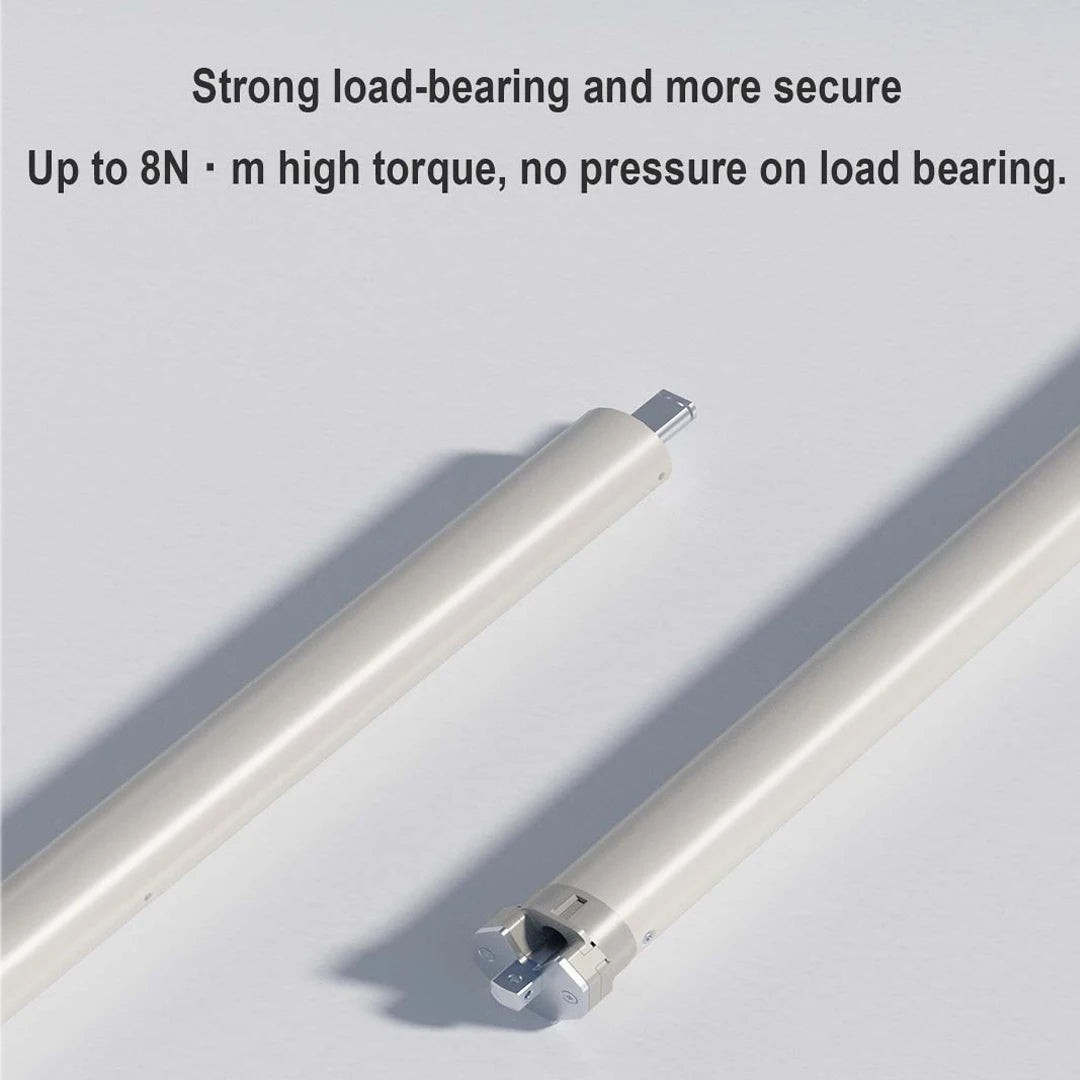

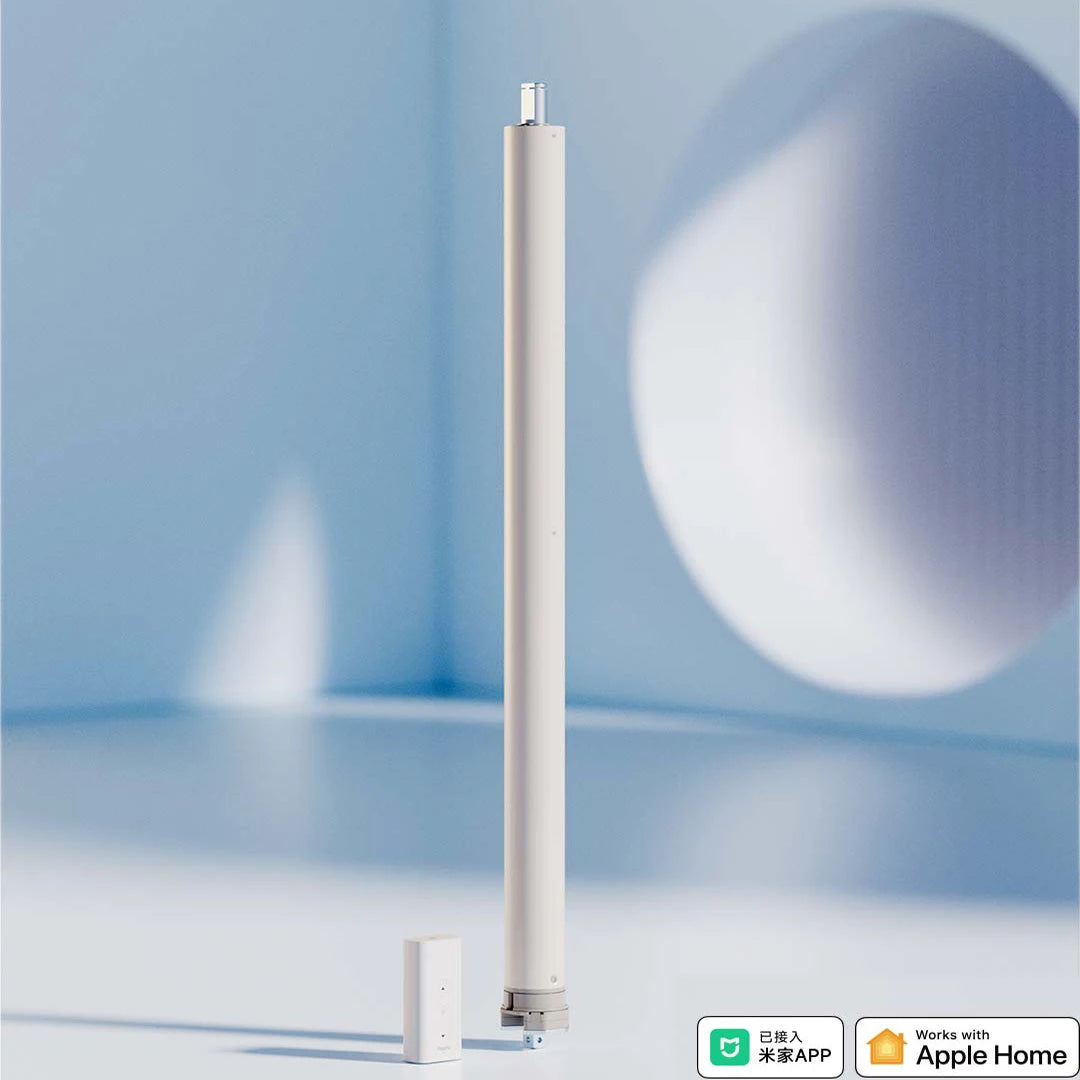

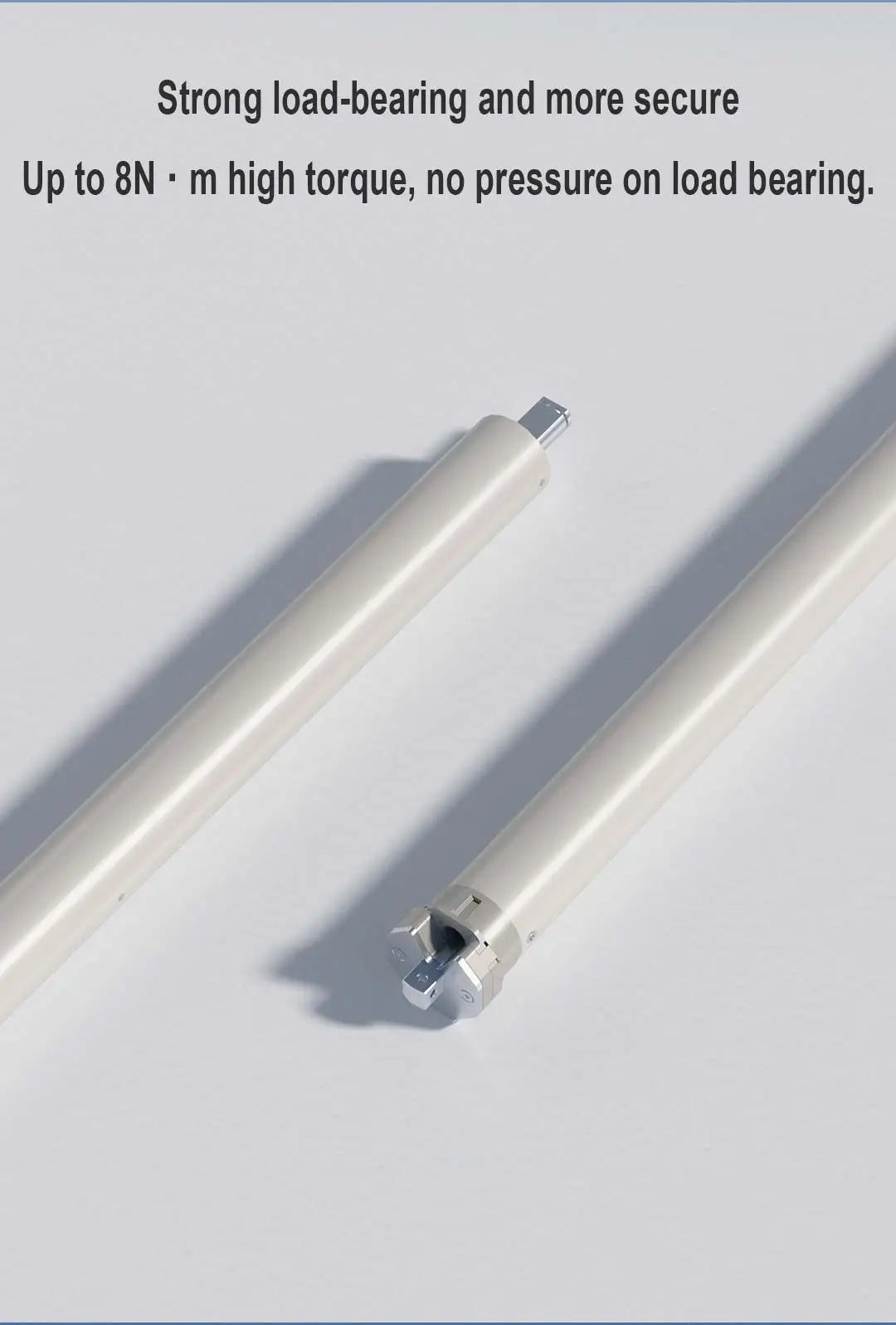

Product Name: Aqara Smart Roller Motor TA (Intelligent Tube Motor TA) Model Number: ZNGZDJ20LM Brand Name: Aqara Origin: Mainland China Compatibility: Only functions when connected to the Mainland China server, selectable in the Aqara app Apple HomeKit Compatible: Yes Battery Included: Yes Certification: CE Communication Method: Zigbee Control Channels: 2 Channels Features: Slot Gyro: Intelligent Tube Motor TA High-Concerning Chemicals: None Inbox Adaptor: No Max Speed: ZNGZDJ20LM Pipe Diameter: Medium 35 mm Plug Type: US Plug Power: 135 W Power Source: Other Protection Level: IP44 Rated Voltage: 220V/230V~50/60Hz Rated Current: 0.43 A Rated Speed: 15 r/min Rated Torque: 8 N·m Size: 35 × 35 × 562 mm (motor size 39 × 41 × 594 mm with pipe diameter 35 mm) Control Box Size: 74 × 33 × 20 mm Maximum Load Bearing: 30 kg Net Weight: 1.44 kg Gross Weight: 1.68 kg State of Assembly: Ready-to-Go Wireless Connection: Zigbee Work System: S2 2 min Execution Standard: GB/T 12350-2022 Thermal Classification: H
Product Description

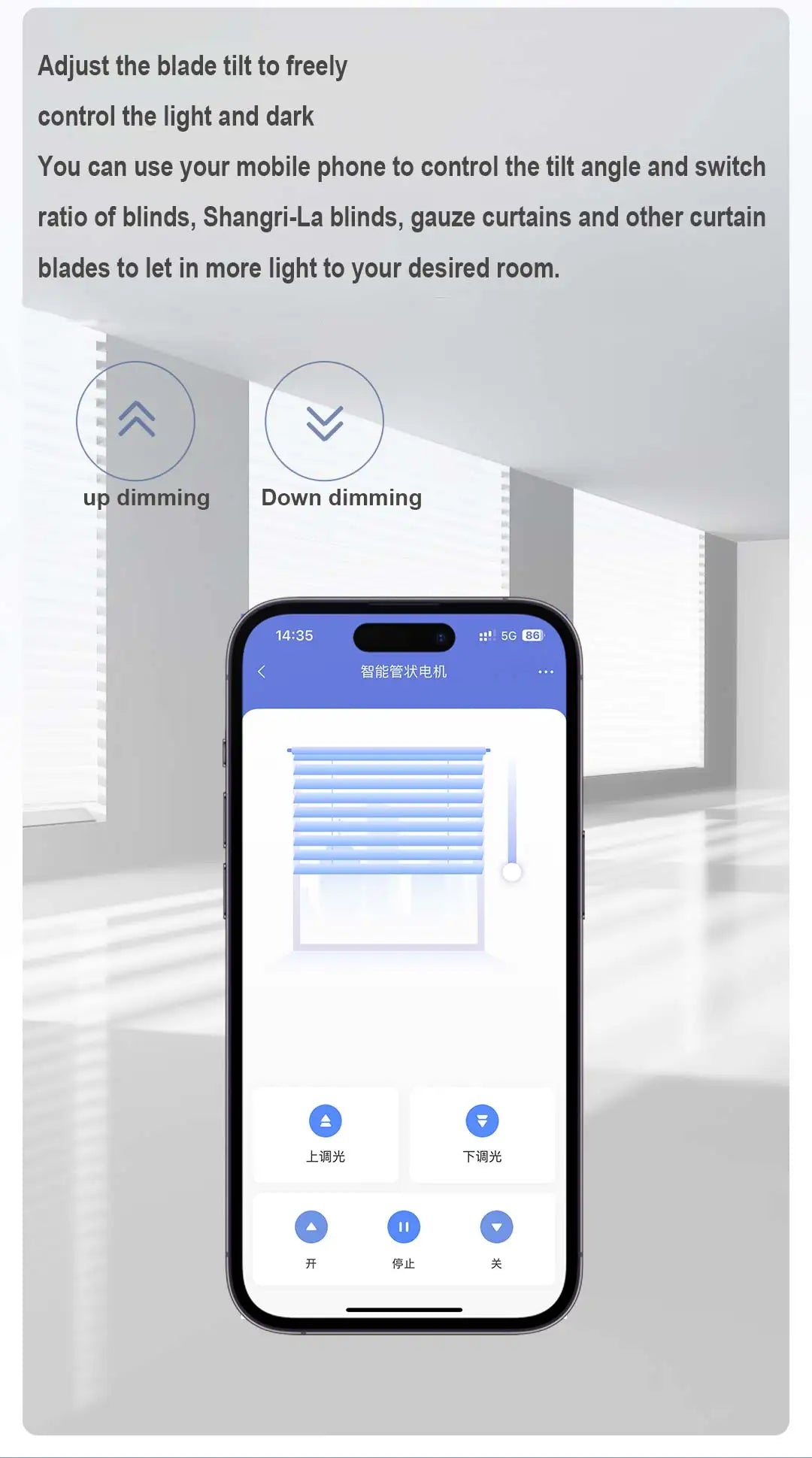

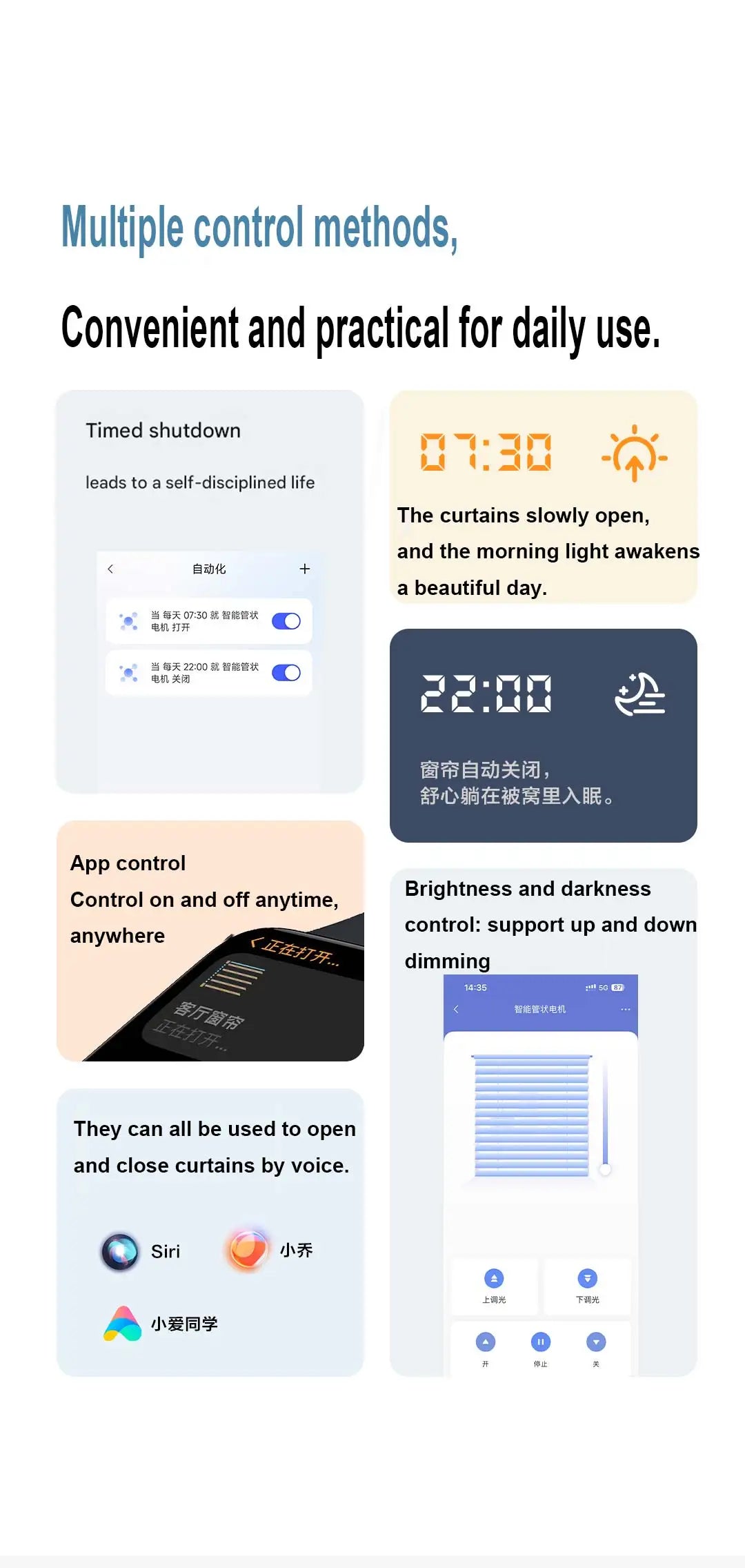

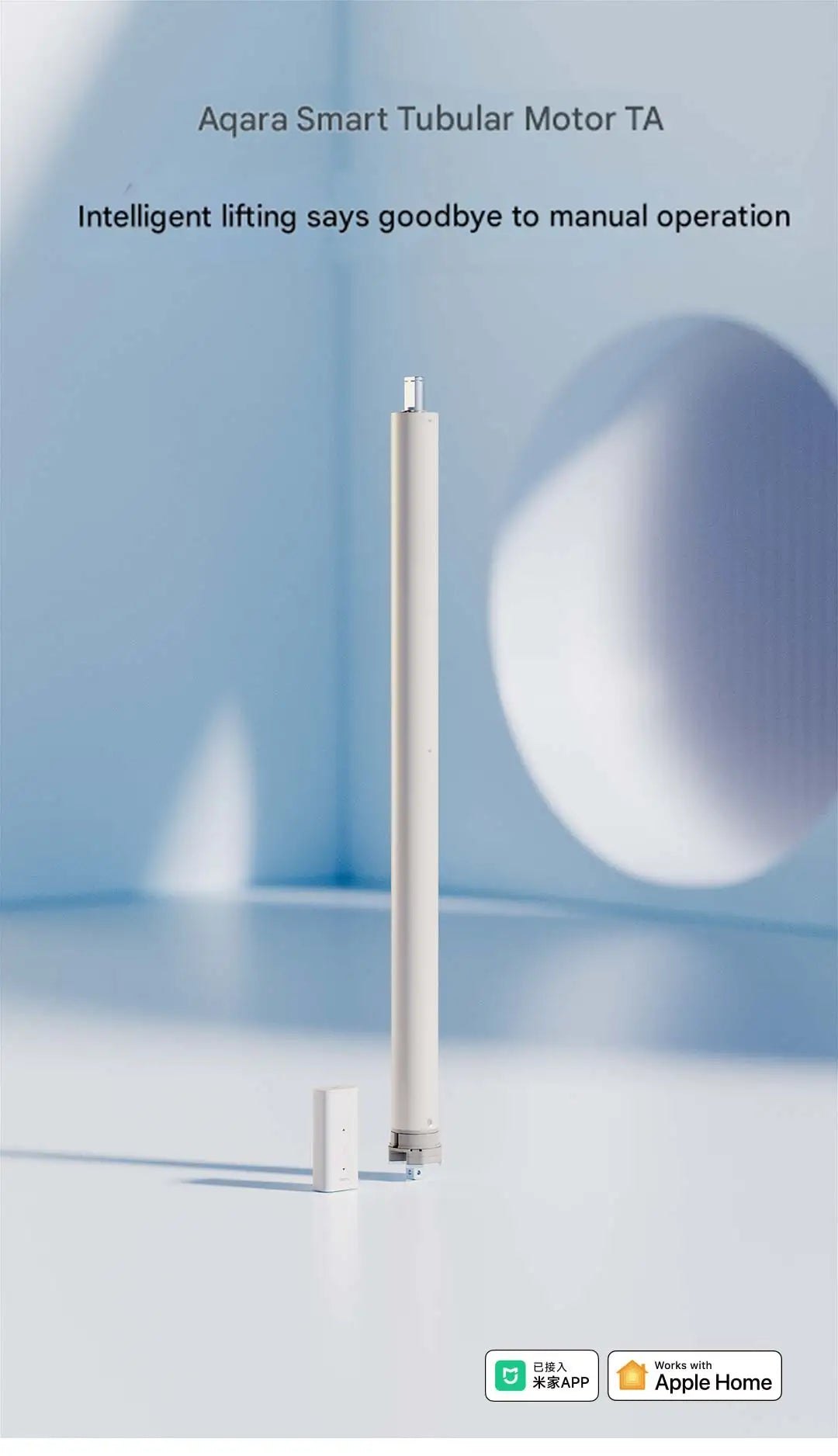

Aqara Smart Roller Motor TA is a Zigbee-enabled curtain rolling shutter motor featuring timing settings and remote control via HomeKit and MiHome apps. It is designed for medium 35mm pipe diameters with IP44 protection level, suitable for smart home automation.
