SPECIFICATIONS
Brand Name: Aqara
Compatibility: This Aqara device only functions when connected to the Mainland China server, which can be selected in the Aqara app.
Connectivity: Bluetooth, WiFi, Zigbee
Door lock prompt language: Chinese/English
Door thickness: supports 40mm-120mm
Fit Door Thickness: 40-120mm
High-concerned Chemical: None
Material: Zinc Alloy
Model Number: ZNMS21LM
Origin: Mainland China
Power Supply: Built-in Rechargeable Battery
Protection Level: No Waterproof
Smart home platform: Apple HomeKit

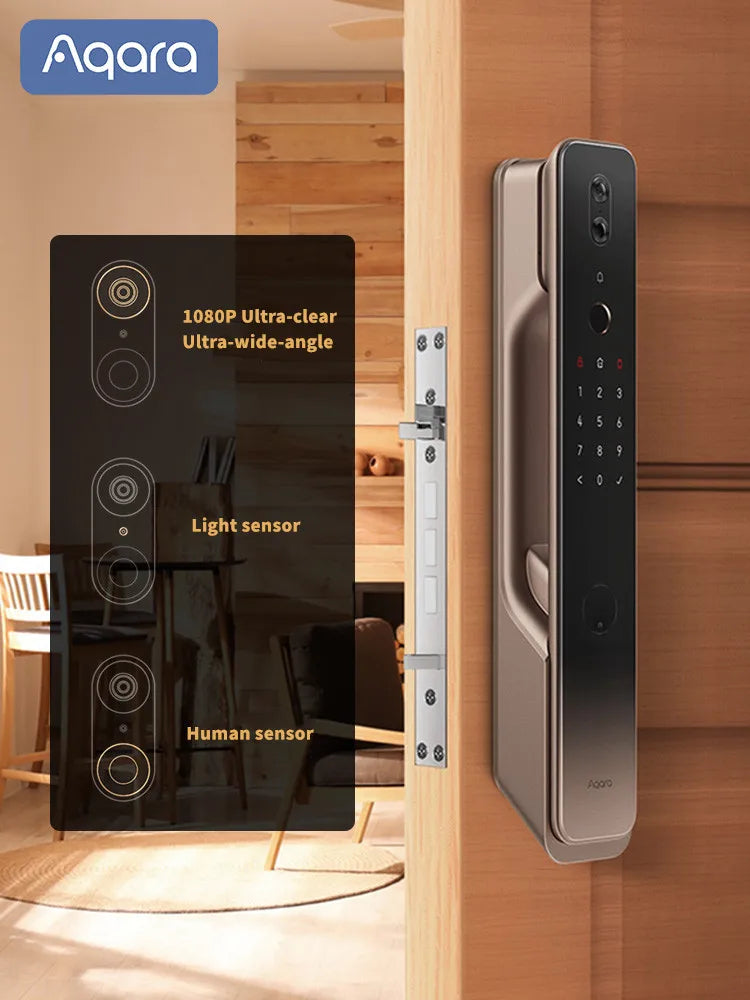

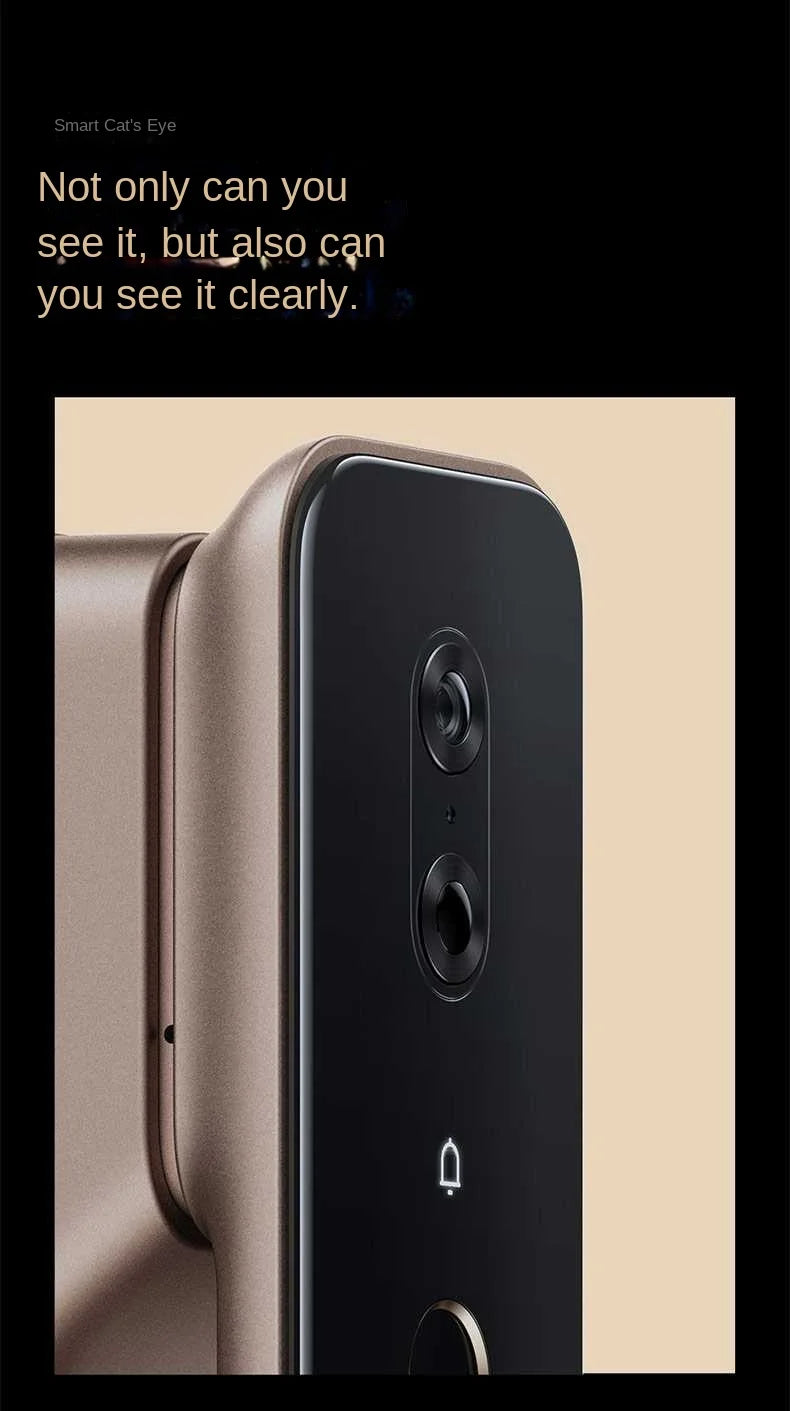

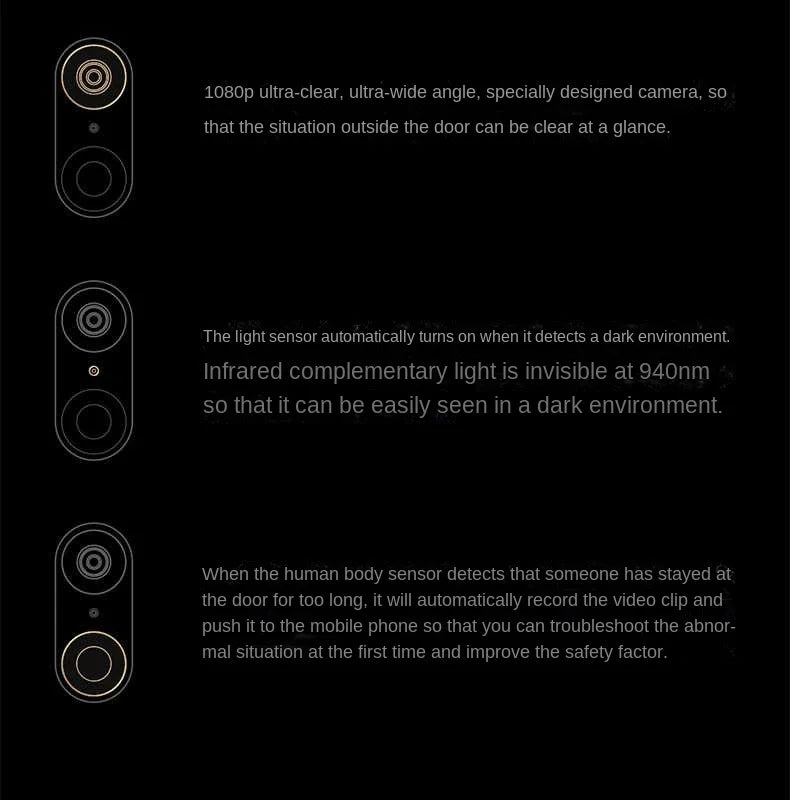

Special Features: Built-in Peephole
Suitable Door Type: Steel Door, Wooden Door, Stainless Steel Door

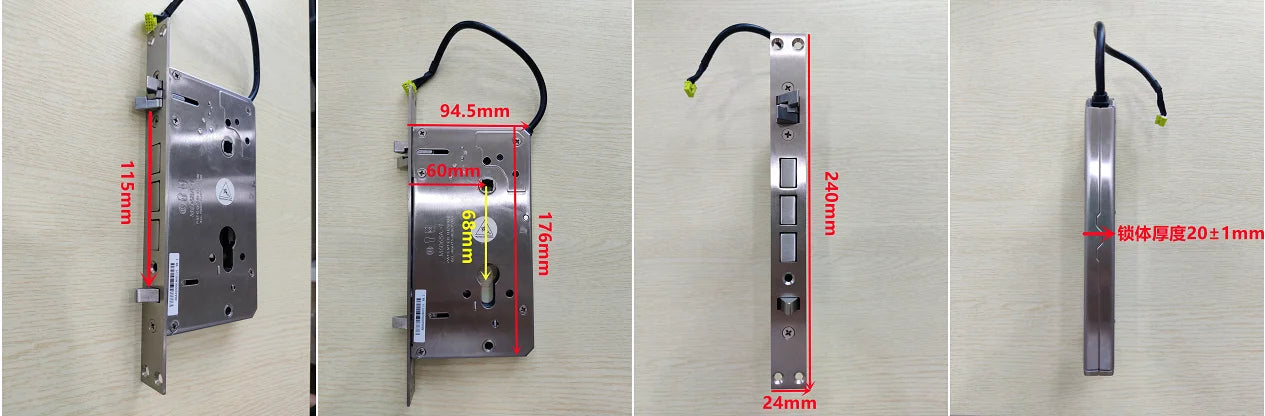

Suitable for Mortise: 6068

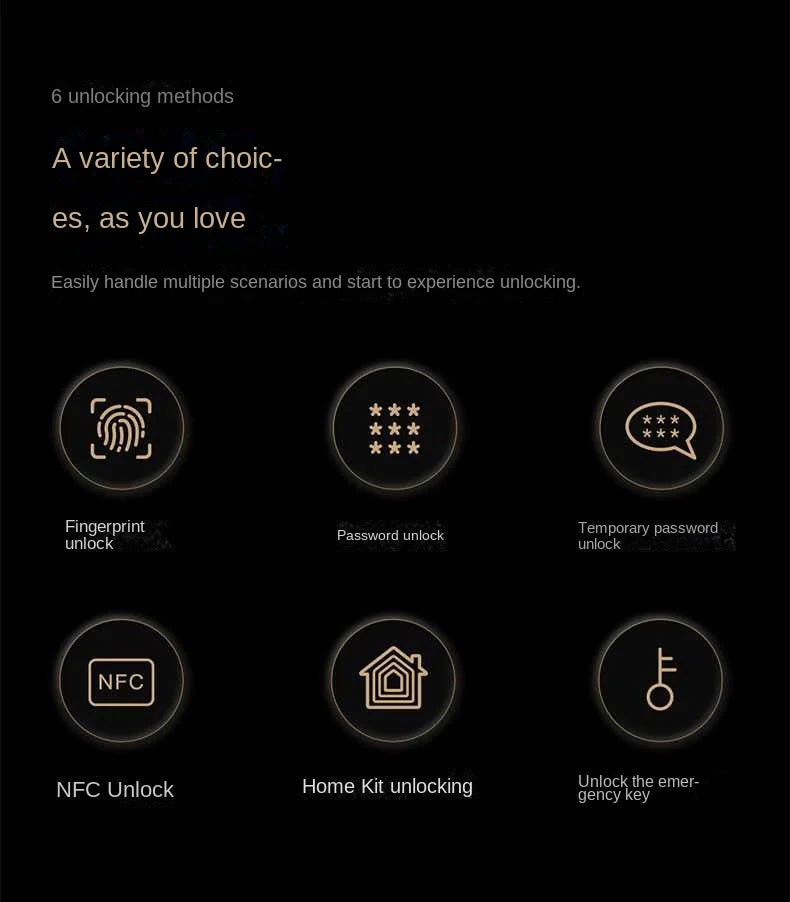

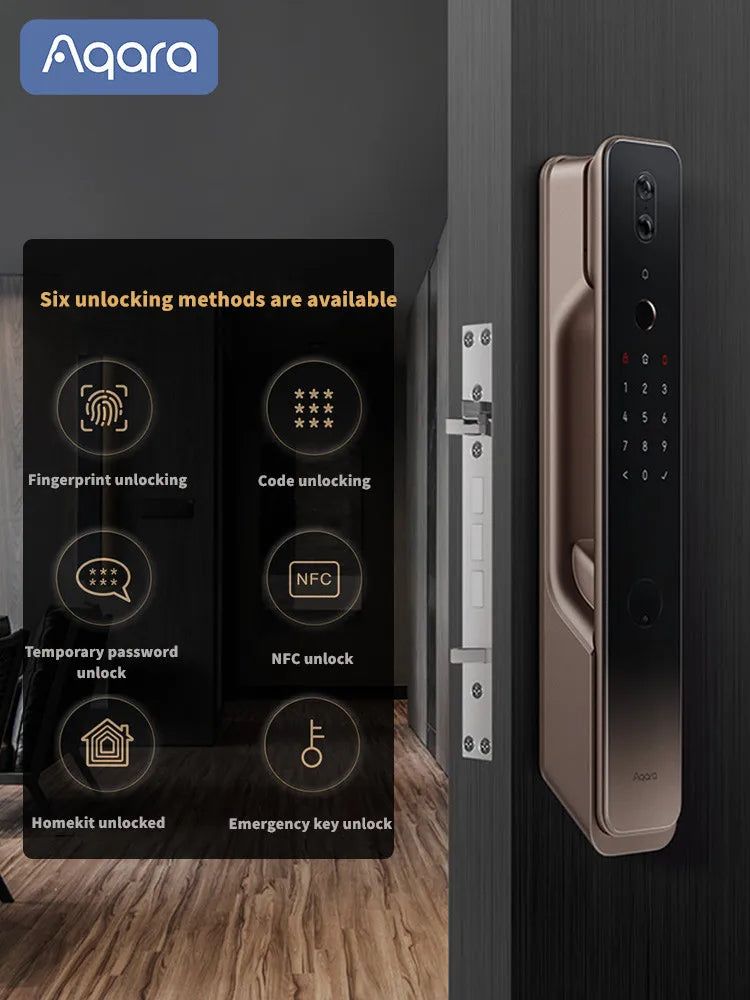

Ways To Unlock: App, Mechanical Keys, Card, Password, FINGERPRINT
Wireless connectivity: Bluetooth 5.0, WiFi IEEE 802.11 b/g/n 2.4GHz, ZigBee 3.0

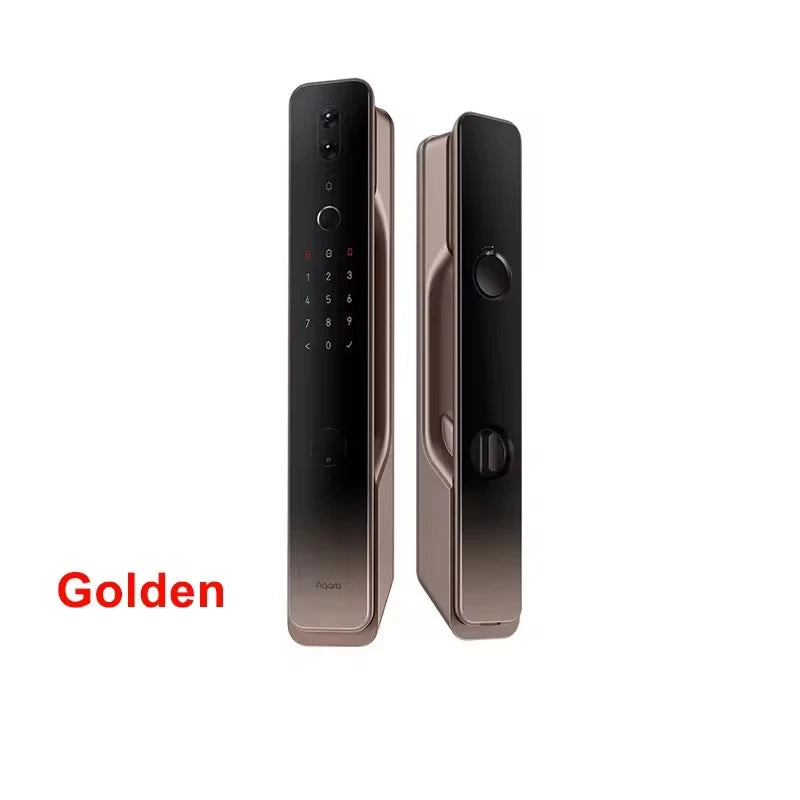

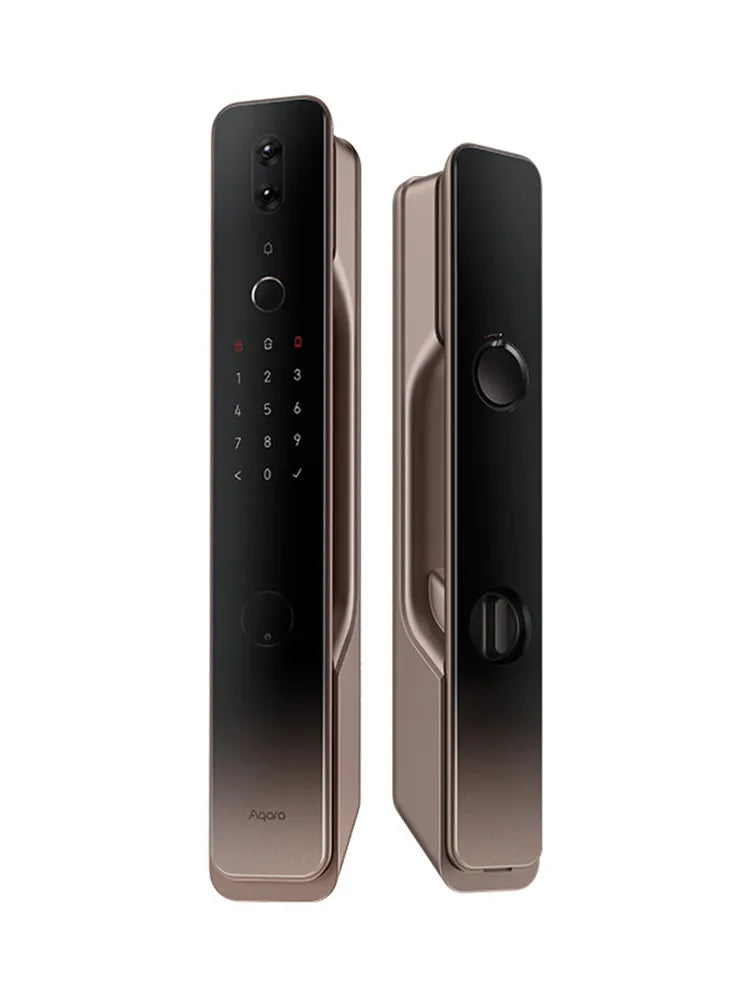

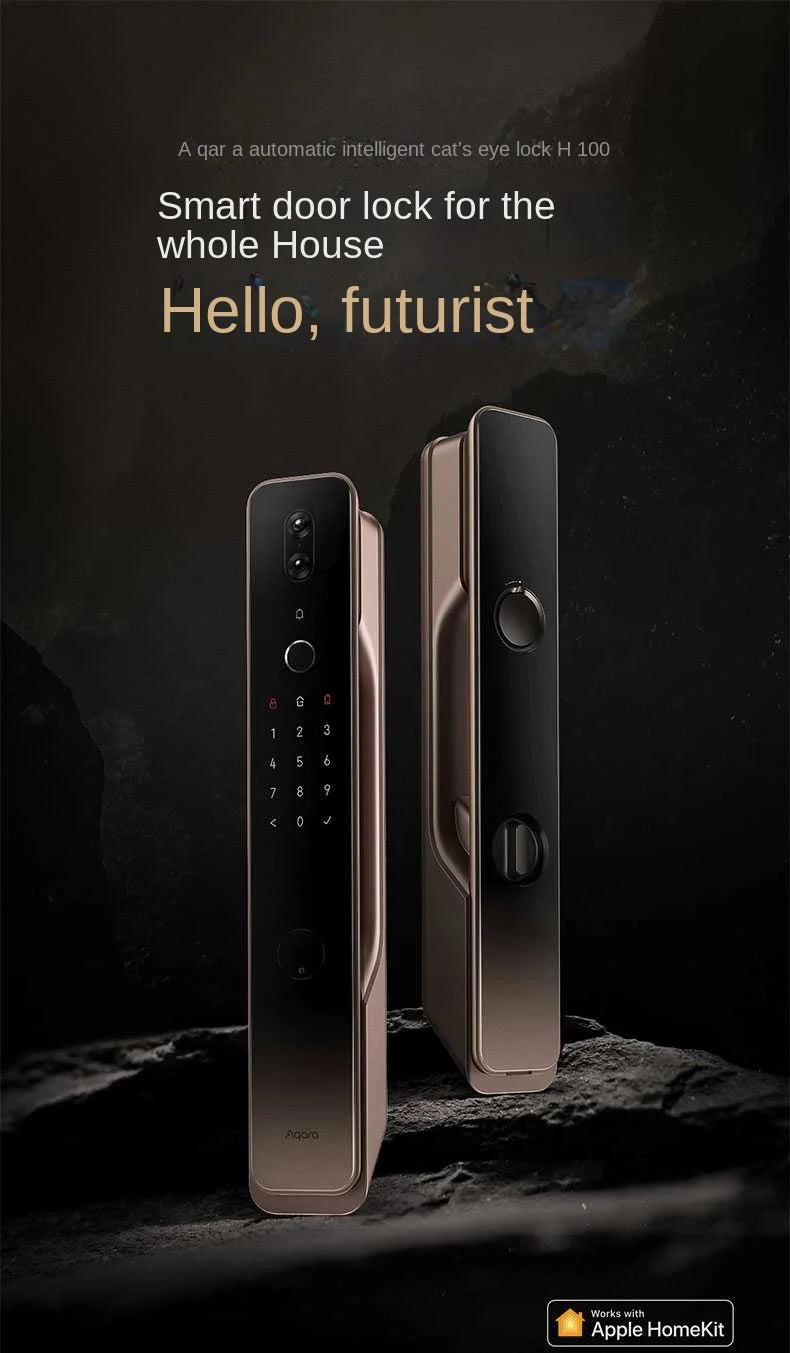

Aqara Smart Door Lock H100 Automatic Cat Eye Zigbee /Body/Light Sensor NFC Bluetooth Fingerprint Unlock For Homekit Aqara App
Notice
This smart door lock can work with Aqara Home APP and Apple HomeKit, it doesn't work with Mi Home APP.
Please change the region of Aqara Home APP to "China" first when connecting.
App available: Aqara Home app. Apple Home does not support Mi Home app.
Gateways available: Gateway E1, Gateway M1S, Gateway M2, Air Conditioner P3, Smart Camera G3 (All Chinese Version).
Compatible with mobile phone system: Android / iOS.
With a supported Zigbee 3.0 gateway, it can be linked with other smart devices to achieve automation scenarios.
Before purchasing this product, please read the installation instructions to ensure that your home environment is compatible.
Installation involves irreversible door modifications such as cutting and drilling; once altered, it cannot be restored.
HomeKit can be added to the door lock, but only supports some features; please contact online customer service for details.
Product model: ZNMS21LM
Working temperature: -10℃ ~ 55℃
Net weight of product: 4.2kg
Operating humidity: 0 ~ 93% RH, non-condensing
Product size: 405mm × 70mm × 57.3mm (panel)
Power supply mode: lithium battery (7.2V)
Type-C indoor charging (5V)
Type-C emergency power supply (5V)
Wireless connection: Bluetooth 5.0 / ZigBee 3.0 / WiFi IEEE 802.11 b/g/n 2.4GHz
Product safety level: Level B (GA374-2019)
Safety level of lock cylinder: Grade C
Executive standards: GA 374-2019, GA/T 73-2015 (lock cylinder)
Environmental adaptability class I (GA 374-2019)
Door lock prompt language: Chinese/English
User capacity: 50 fingerprints, 50 permanent passwords, 25 NFC devices, 25 periodic passwords, 8 primary passwords
