SPECIFICATIONS
Compatibility: This Aqara device only functions when connected to the Mainland China server, selectable in the Aqara app.
Apple HomeKit Compatible: Yes
Brand Name: Aqara
Certification: CE
Choice: Yes
Communication Method: Zigbee
Control Channels: 12 Channels & Up
Gyro: None
High-concerned Chemical: None
Inbox Adaptor: No
Max Speed: None
Model Number: Single Channel Relay Controller T1
Origin: Mainland China
Power Source: AC
State of Assembly: Ready-to-Go
Semi_Choice: Yes
Product Description

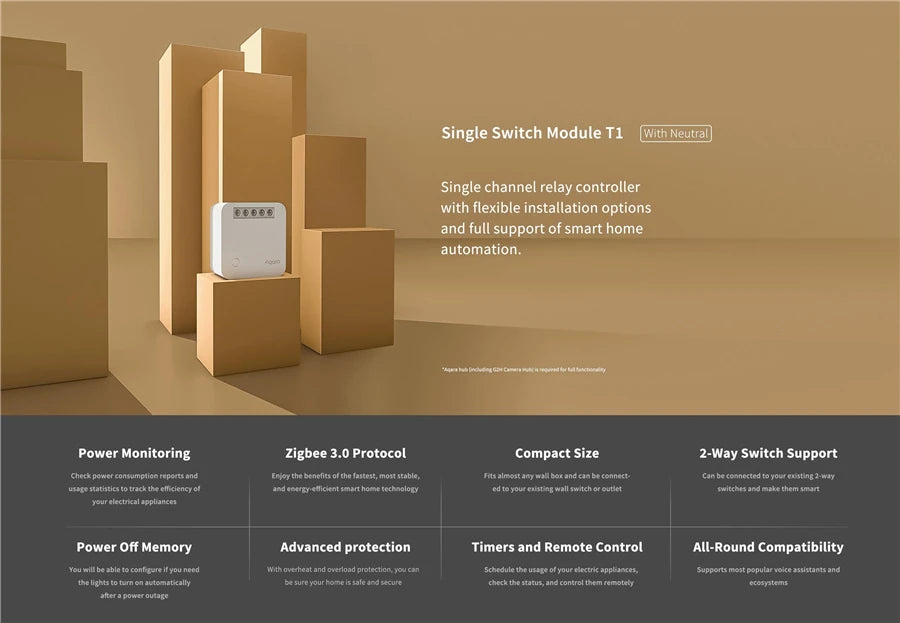

The Aqara Single Channel Relay Controller T1 is a Zigbee 3.0 smart switch module that supports both neutral and no-neutral wiring. It is compatible with Zigbee 3.0 hubs/gateways such as Aqara M3, E1, M1S, M2, Air Conditioner Companion P3, Camera G2H, G3, and Jiyue Smart Panel S1.

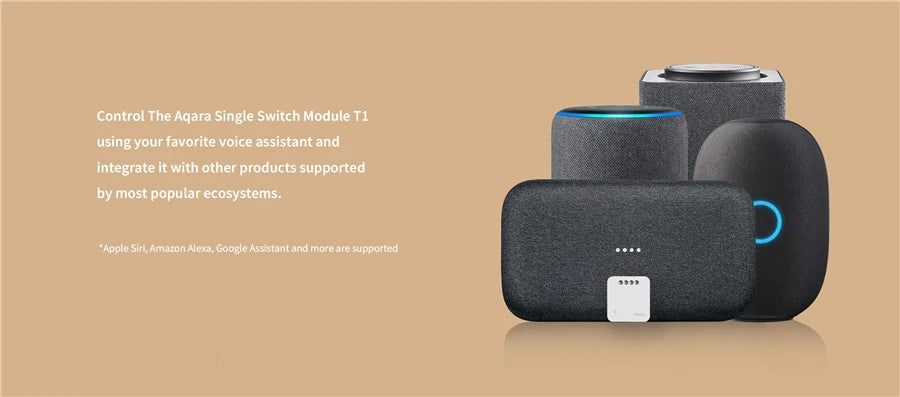

This module supports Apple HomeKit and the Aqara Home App.

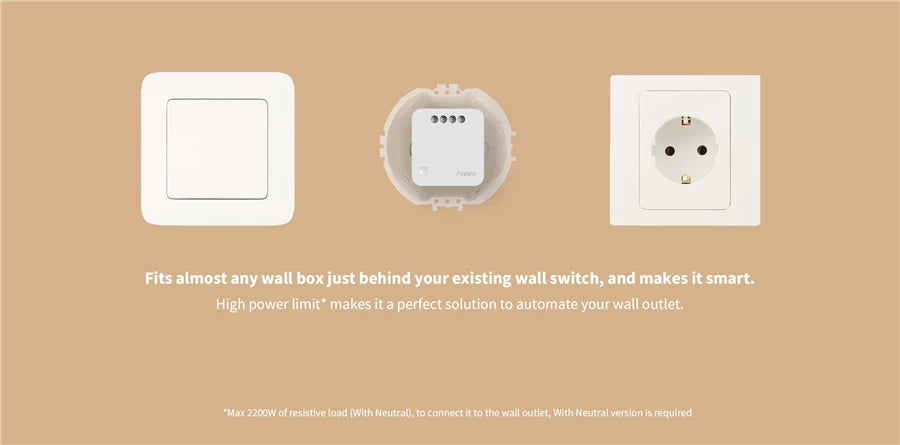

The Aqara Wireless Relay Controller smart module can control power loads, measure power consumption, and be operated either manually via a wall switch or remotely through Zigbee. Its compact design allows it to be installed with common home electrical loads such as fans, kettles, sockets, or bulbs. You can use the Aqara app to remotely control devices or automate them to function as needed.
Electricity Statistics

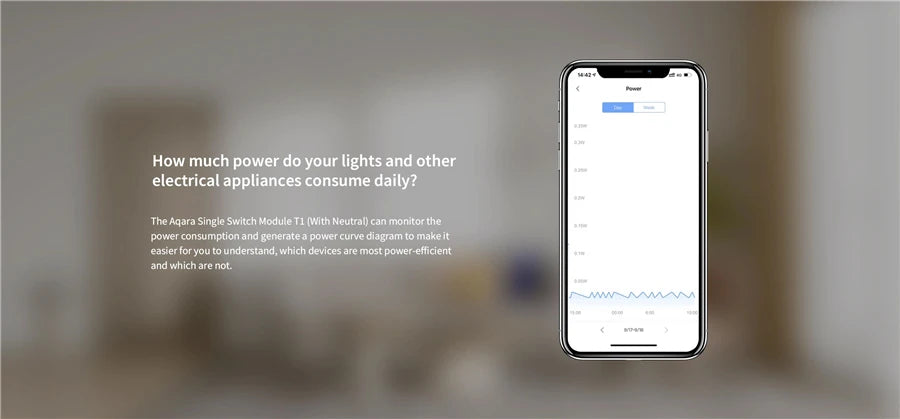

The Single Switch Module T1 accurately monitors real-time power usage and provides electricity statistics, allowing for better energy management.
Overheat and Overload Protection
If the power or temperature exceeds the safety threshold, the module automatically shuts off power to prevent hazards.

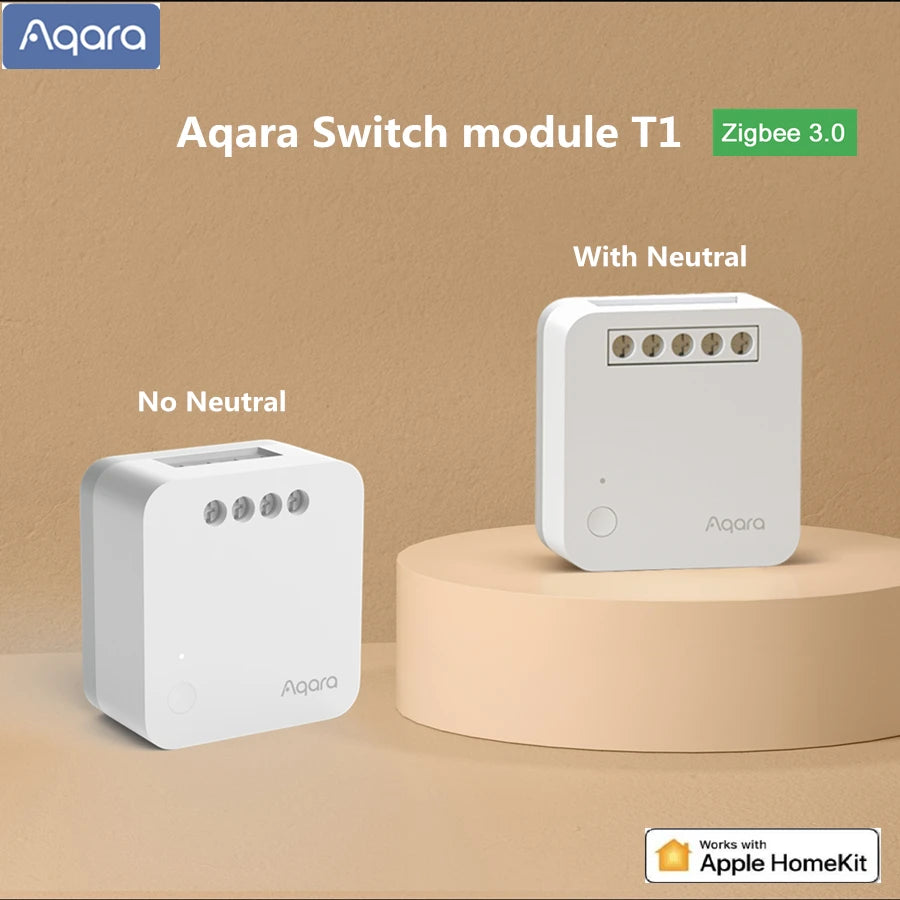

Model Variants

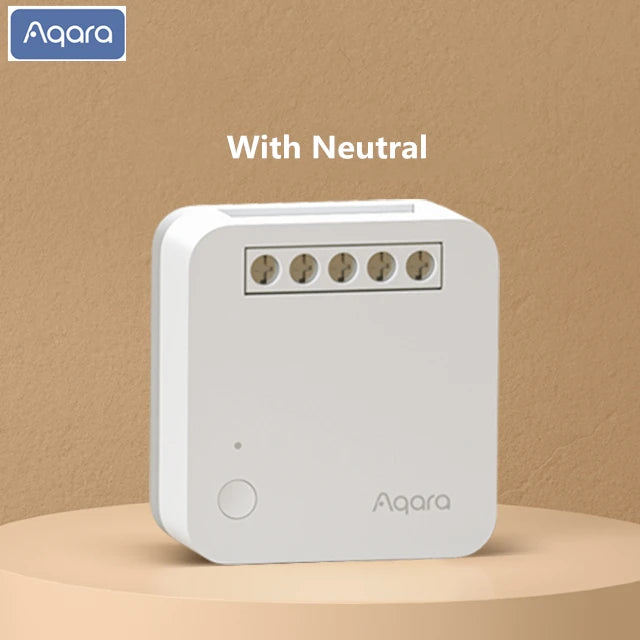

DLKZMK11LM (Neutral)

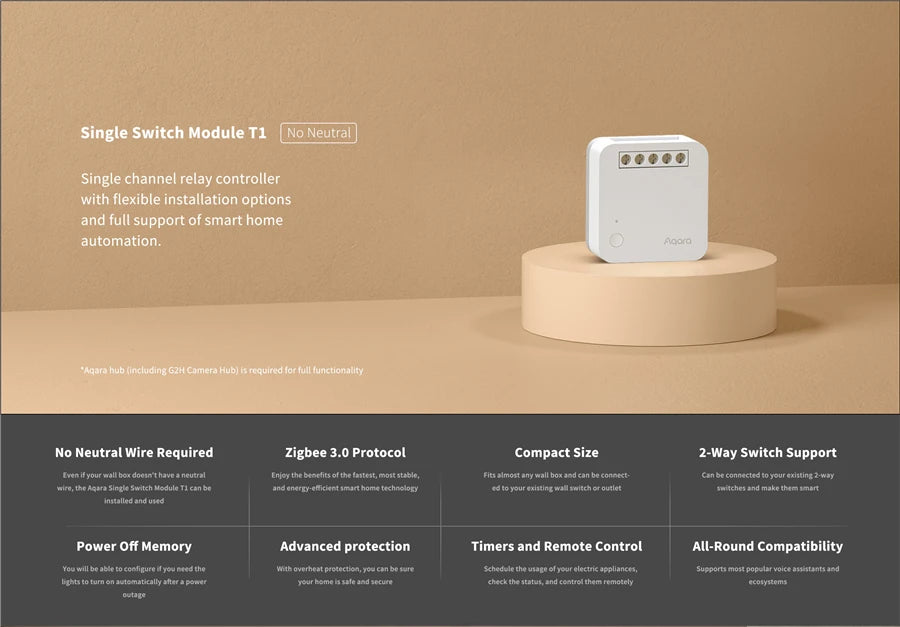

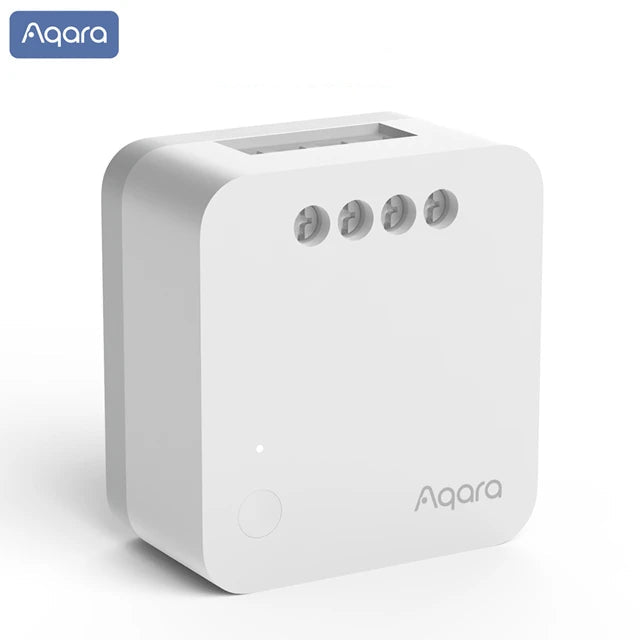

DLKZMK12LM (Non Neutral)
Product Dimensions: 42.9 × 40 × 21.4 mm
Product Color: White
Net Weight: 0.04 kg
Gross Weight: 0.05 kg
Input Power: 100–250V AC, 50/60Hz
Input Current: Max 5A (resistive load)
Rated Load: Minimum 3W, Maximum 1250W (resistive load). This product is only suitable for non-remote-control lights above 3W (typical value).
Wireless Connection: Zigbee 3.0
Wireless Standard: IEEE 802.15.4
Wireless Frequency: 2.4GHz (2400–2483.5MHz)
Receiver Sensitivity: -98dBm
Effective Communication Distance: 30m (indoors)
Operating Temperature: 0°C to 35°C
Operating Humidity: 5% to 95% RH, non-condensing
Storage Temperature: -10°C to 50°C
