SPECIFICATIONS
Compatibility: This Aqara device only functions when connected to the Mainland China server, which can be selected in the Aqara app.
APP: Works with Mi Home app & Apple HomeKit
Brand Name: Aqara
Certification: CE
Connectivity: Bluetooth
Door Lock Voice: Chinese/English
Door Lock Prompt Language: Chinese/English
Doorknob Function: Biometric, Key & Keypad

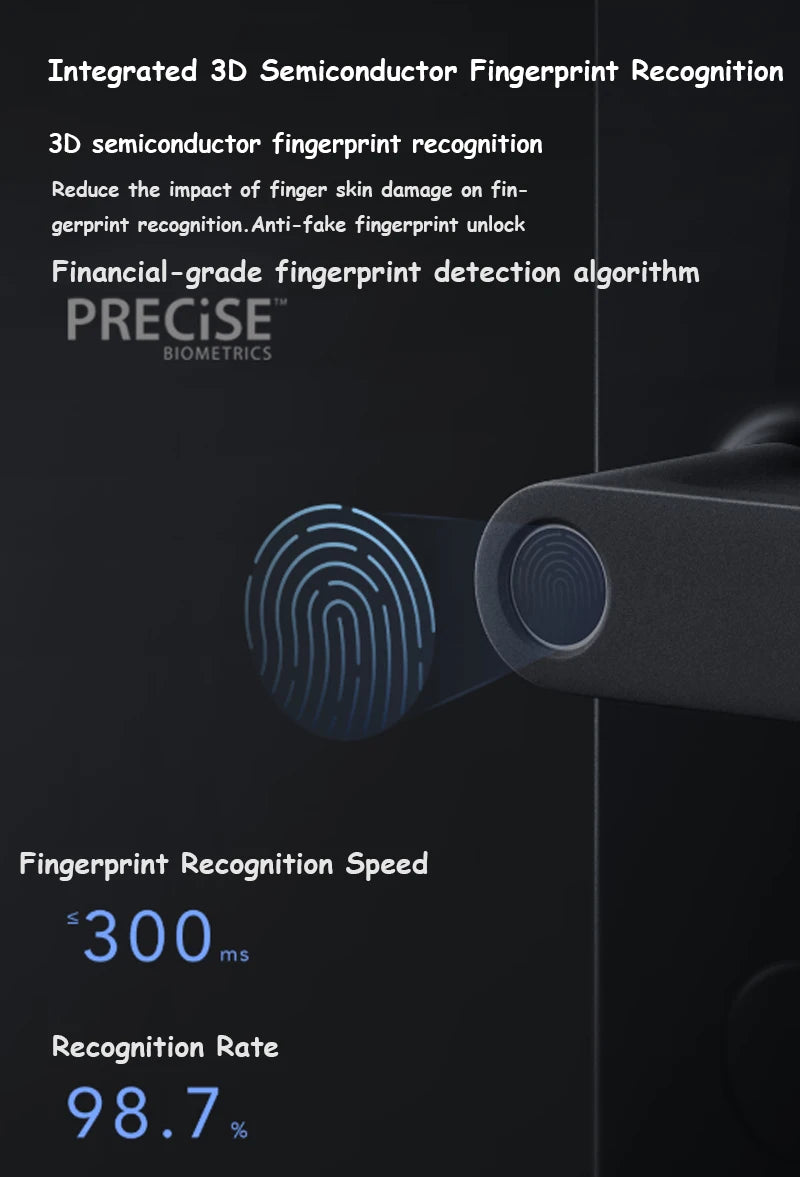

Fingerprint Identification Rate: 98.7%
Finish Type: Other
Fit Door Thickness: 40–120mm
Handle Direction: Direction Reversible
High-concerned Chemical: None

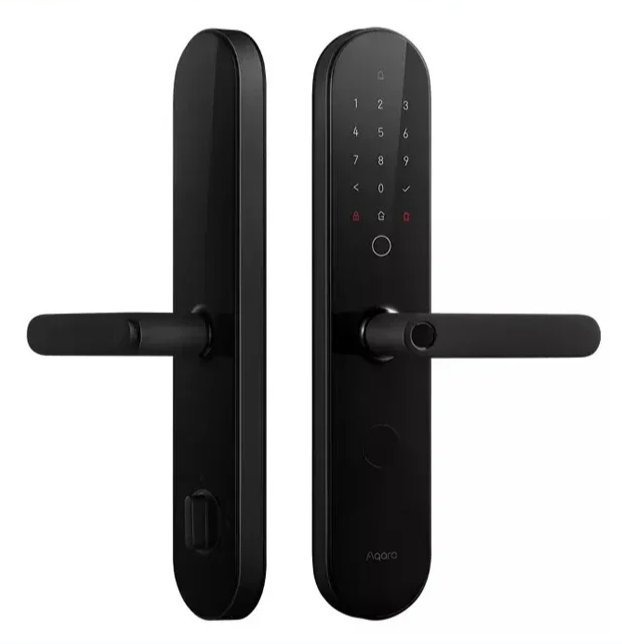

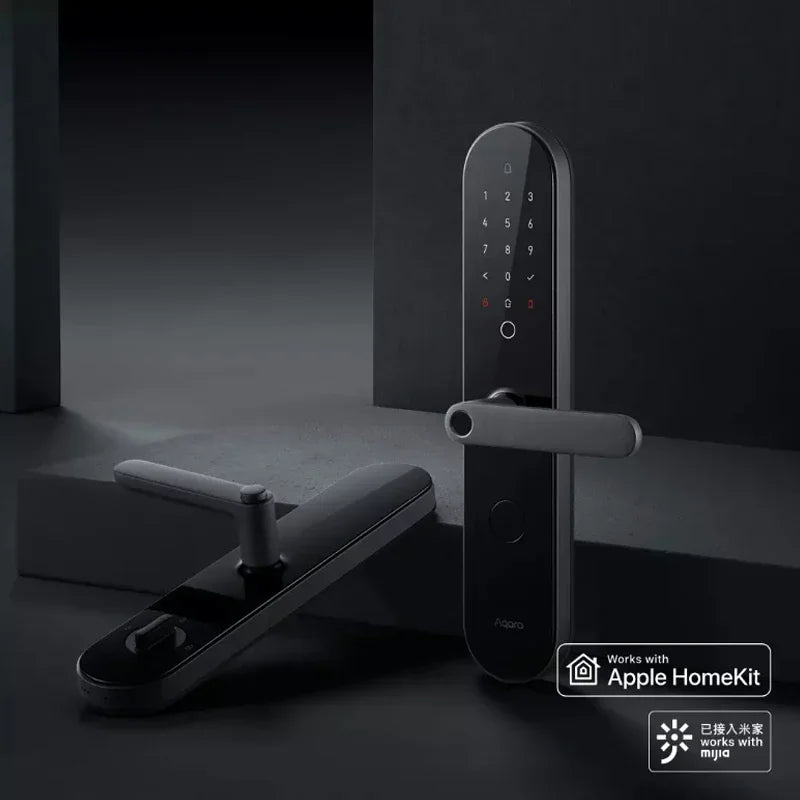

Item Name: Aqara N100 Smart Door Lock

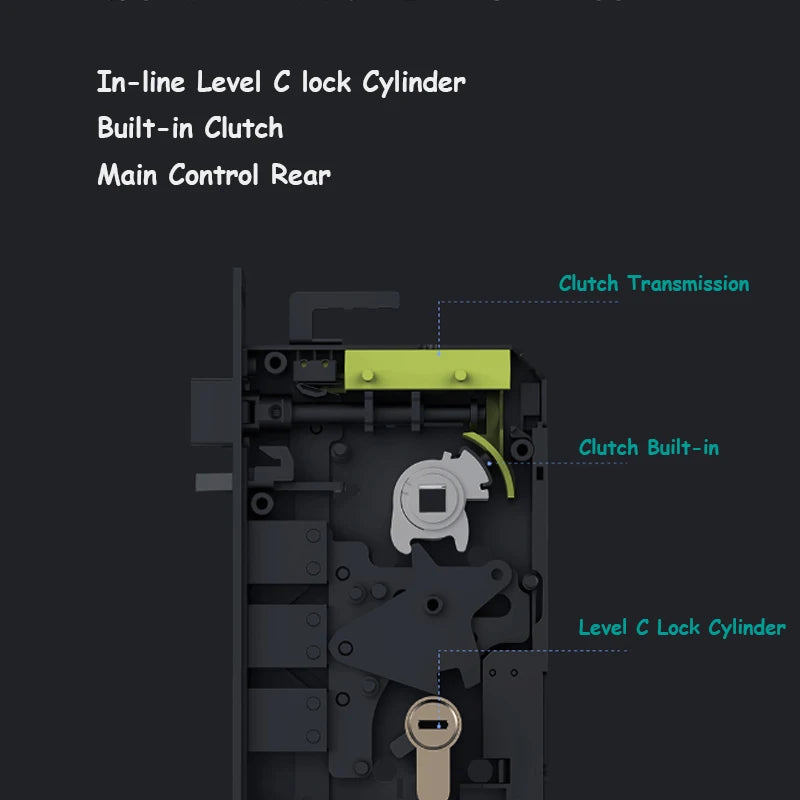

Lock Core Grade: C Grade
Material: Zinc Alloy
Model ID: ZHWG11LM
Model Number: ZHWG11LM
Origin: Mainland China

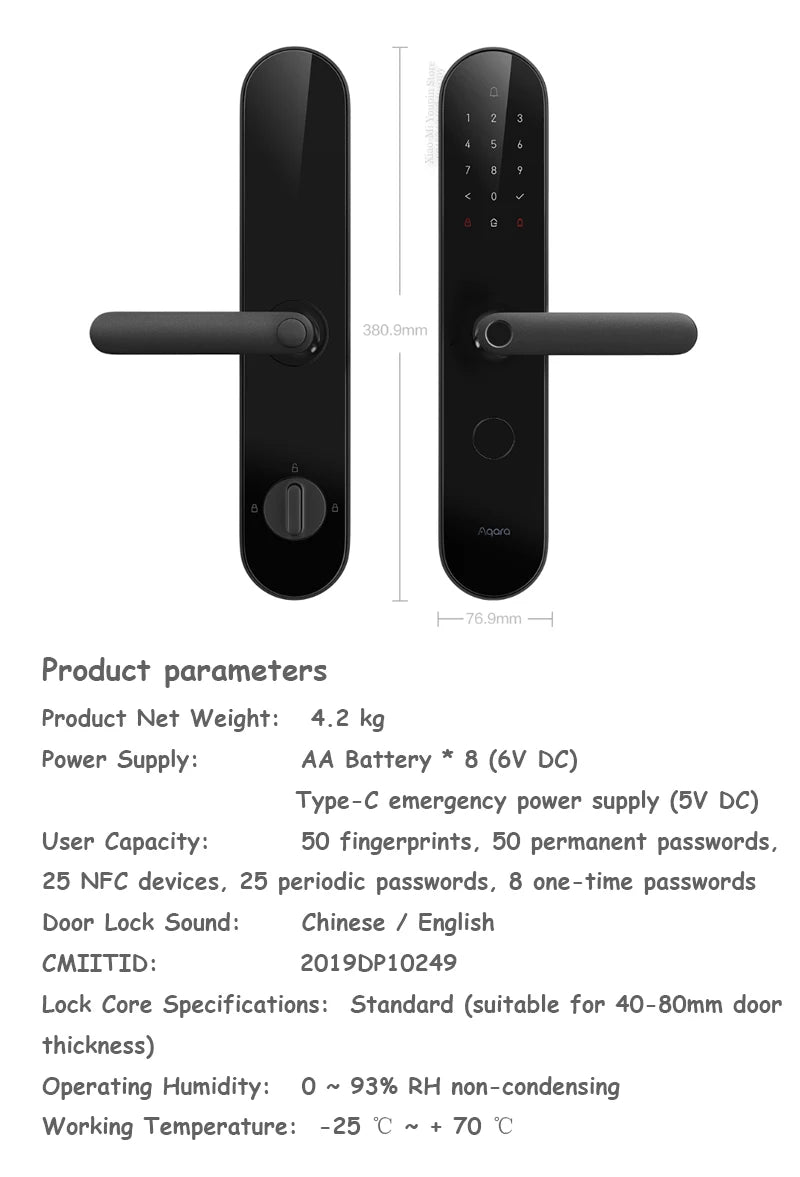

Panel Size: 380.9 × 76.9 × 25 mm
Power Supply: Dry Battery, Type-C Emergency (5V DC)
Smart Home Platform: Mi Home, Apple HomeKit
Special Features: Built-in Doorbell
Standby Time: 18 months
Suitable Door Type: Steel Door, Wooden Door, Brass Door, Stainless Steel Door
Suitable for Mortise: 6068
Support Door Bell: Yes
Ways To Unlock: App, Bluetooth, Mechanical Keys, Card, Password, Fingerprint
Wireless Connection: Bluetooth 5.0
Working Temperature: -25℃ ~ 70℃
Note:
Aqara N100 and N200 work with Mi Home APP and Apple HomeKit, but do not work with Aqara APP. This is the China version, so please change the region to "Chinese Mainland" in the app before connecting.
Features

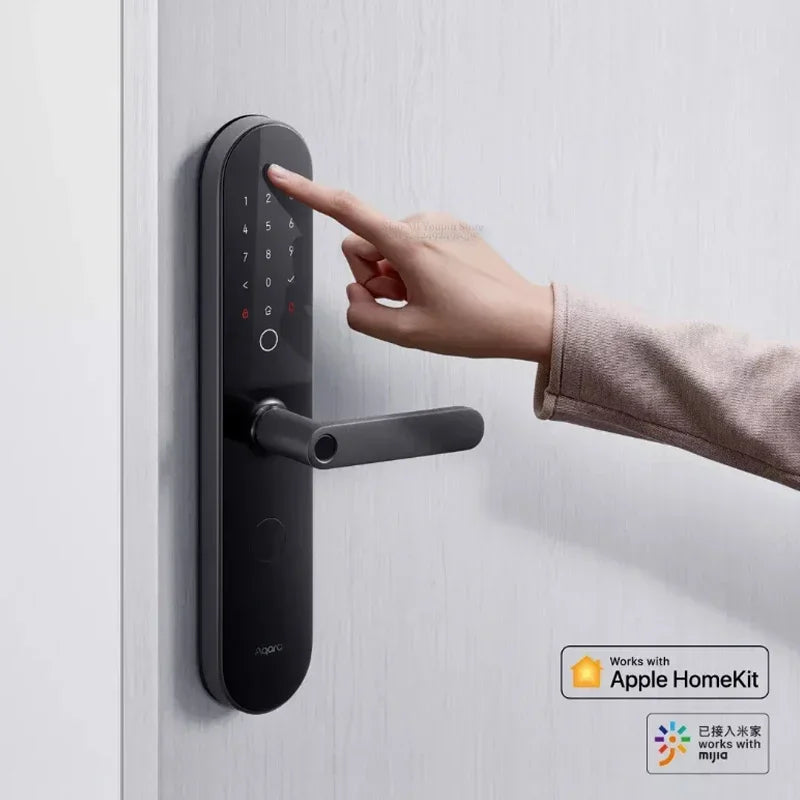

Compatible with Mijia App and Apple HomeKit.
Equipped with over 20 security technologies: anti-violence, anti-trailing, and anti-cat eye unlocking.

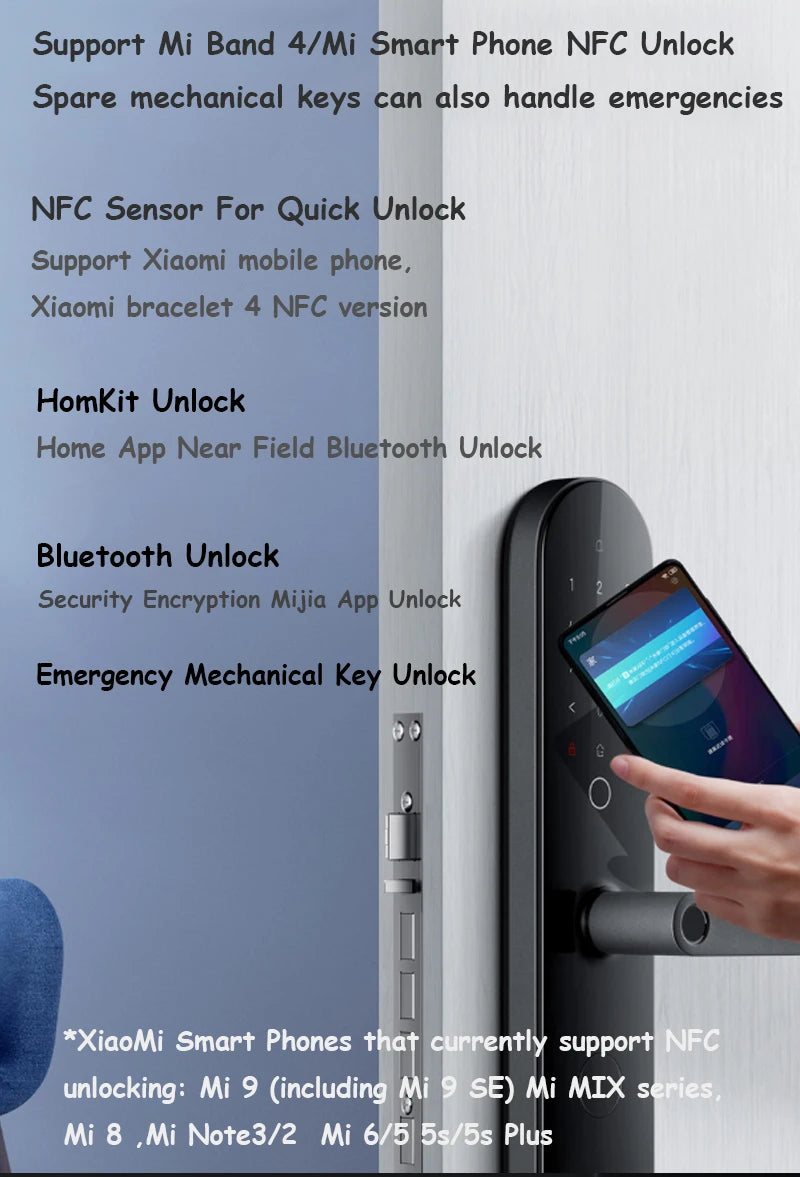

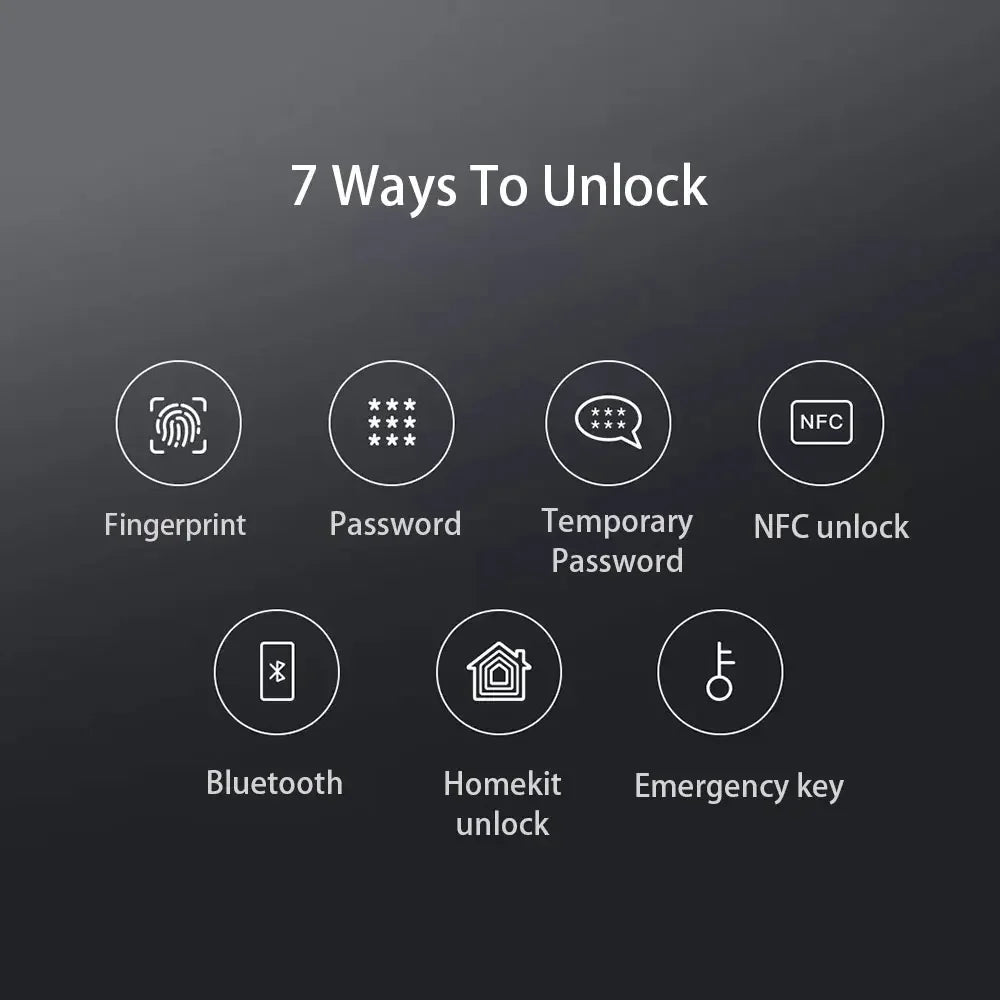

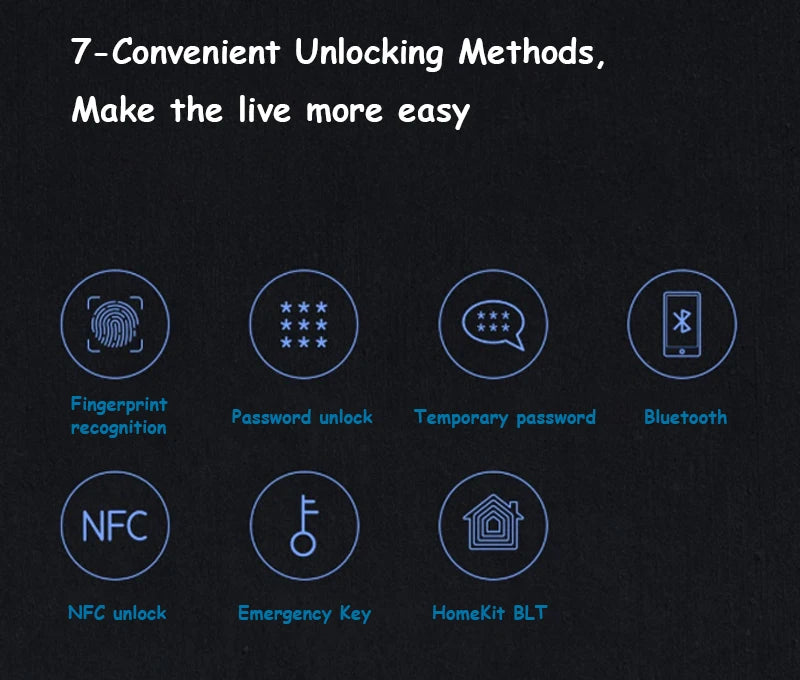

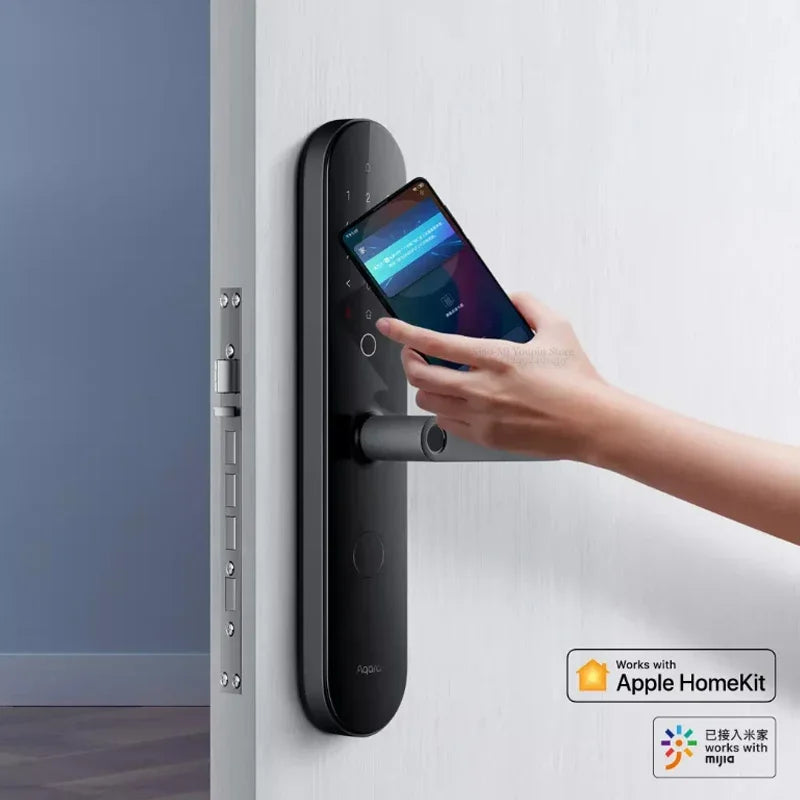

Seven unlocking methods: Fingerprint, password, physical key, temporary password, Bluetooth, NFC (supported only by Xiaomi phones, Mi Band 4, and latest Xiaomi watches), and HomeKit Bluetooth.

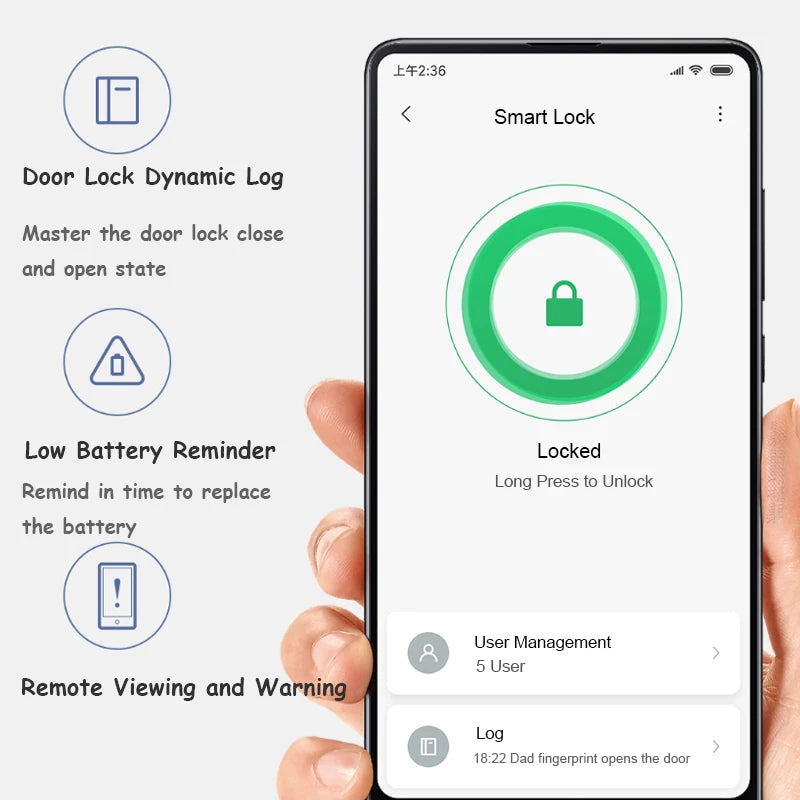

App Monitoring: View real-time locking status through the app.
Privacy Protection: Supports anti-peeping virtual passwords to enhance security.
Safety Design: Anti-cat-eye unlocking protection.
Smart Linkage: Personalized automations based on indoor/outdoor locking actions.
Note on temporary password: Validity-controlled temporary passwords require direct Bluetooth connection between phone and lock.
