SPECIFICATIONS
2.4G Wi-Fi Transmission Rate: 600Mbps
5G Wi-Fi Transmission Rate: 2167Mbps
Antenna Type: Fixed
Antennas: OmniDirectional / Directional Antennas
Application: Home
Brand Name: WAVLINK
Certification: CE
Feature 1: Outdoor WiFi extender, WiFi outdoor antenna
Feature 2: Best outdoor WiFi extender, AX3000 WiFi 6 Outdoor Access Point
Feature 3: WiFi extender, outdoor weatherproof WiFi extender
Feature 4: Wireless access point, wireless signal booster
Feature 5: Outdoor WiFi repeater, access point WiFi 6
Feature 6: Mesh router, Mesh extender, WiFi access point, WiFi repeater
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Function: Firewall
High-concerned Chemical: None
LAN Ports: 1
Max. LAN Data Rate: 1000Mbps
Number of USB Interfaces: None
Origin: Mainland China
PAIR/RESET LED: Blue
Package: Yes
PoE Converter Status LED: Green
Product: Long Range Outdoor WiFi Extender
Recommended Uses: Home
Standard: IEEE 802.11 ax/ac/a/n/g/b
Standards and Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac
Support Mesh: Yes
Supports WDS: No
Supports WPS: Yes
Type: Wireless
WAN Ports: 1 x 10/100/1000Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 10/100/1000Mbps
Wireless Communication Standard: 802.11.ax
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Wireless Transmission Rate: 3000M
With Modem Function: No

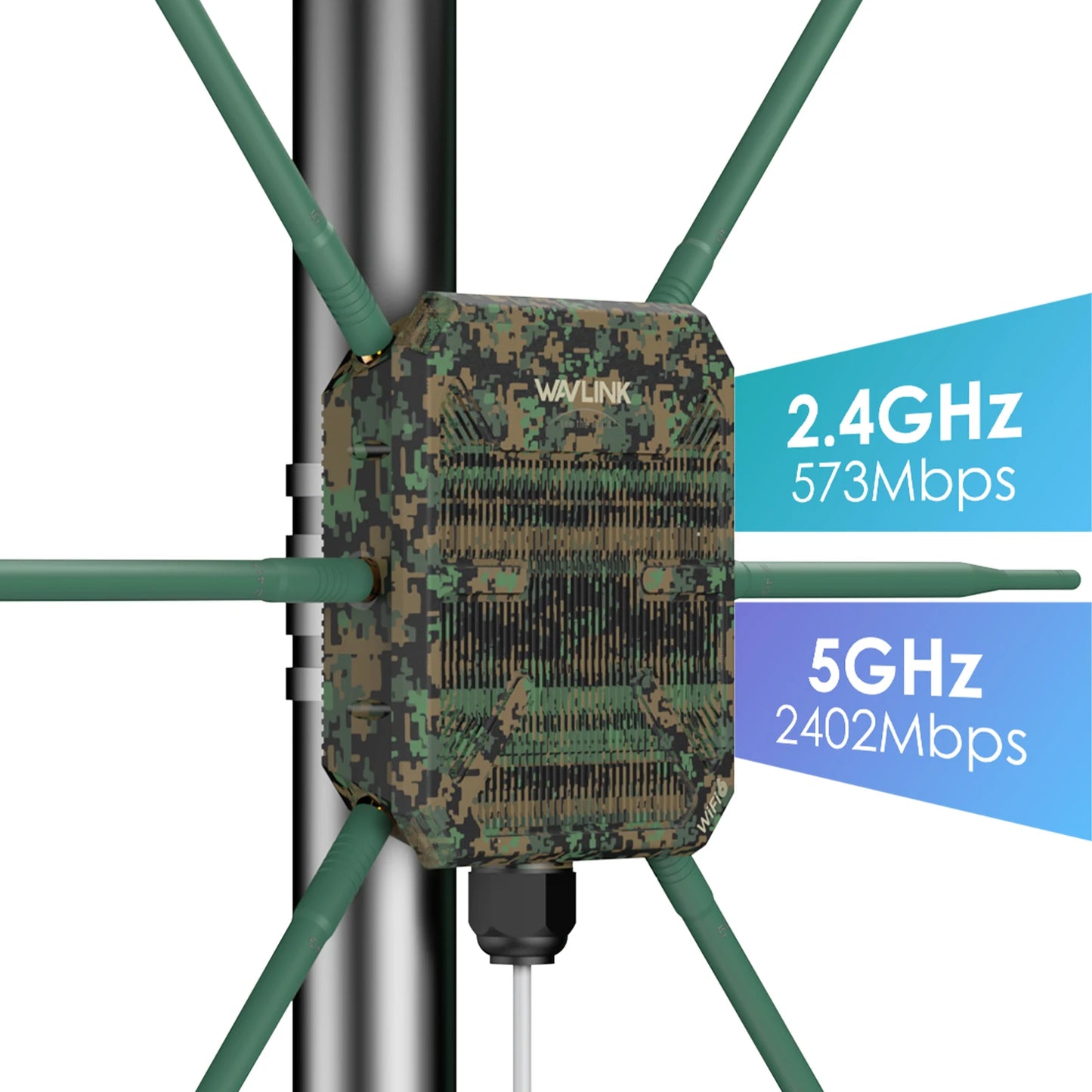

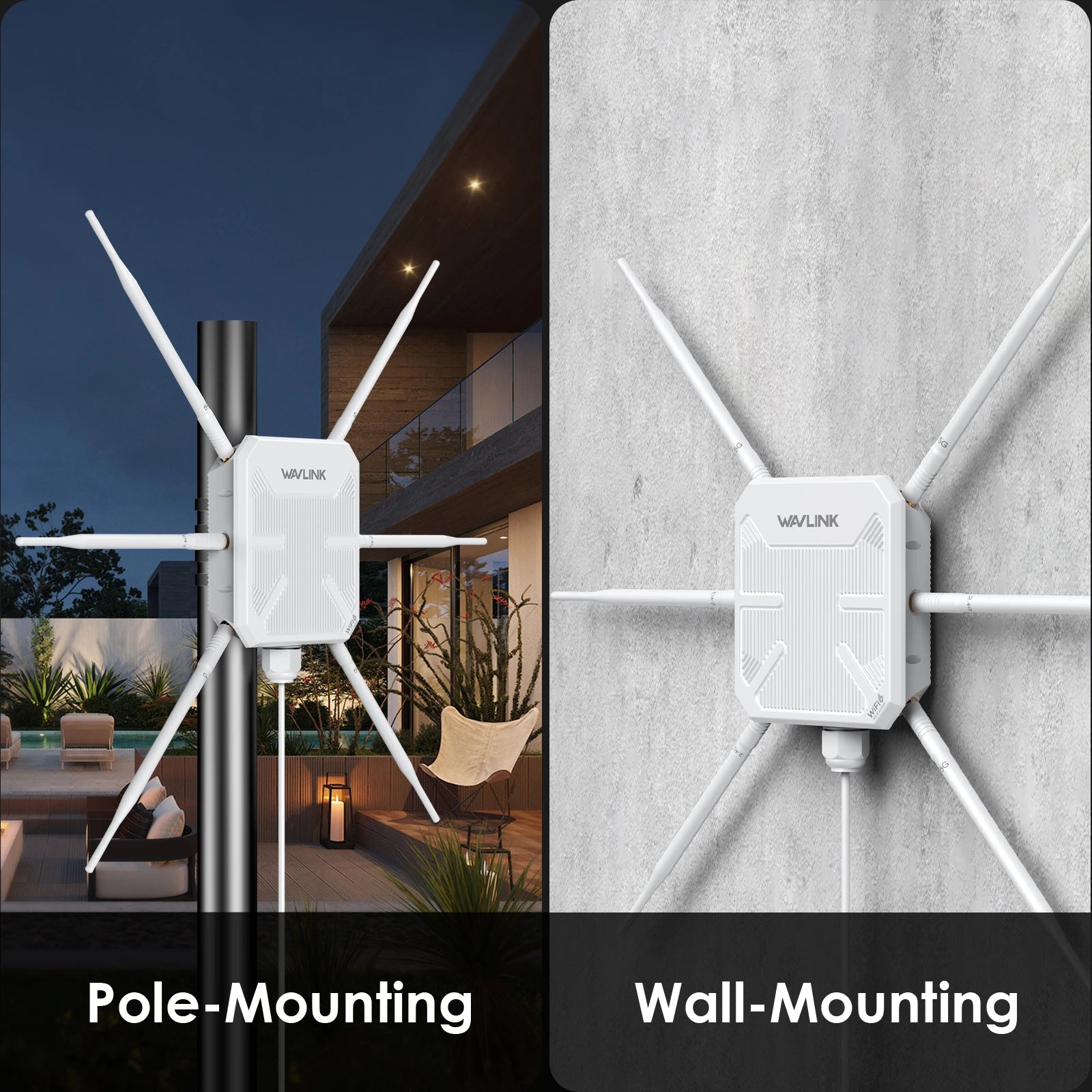

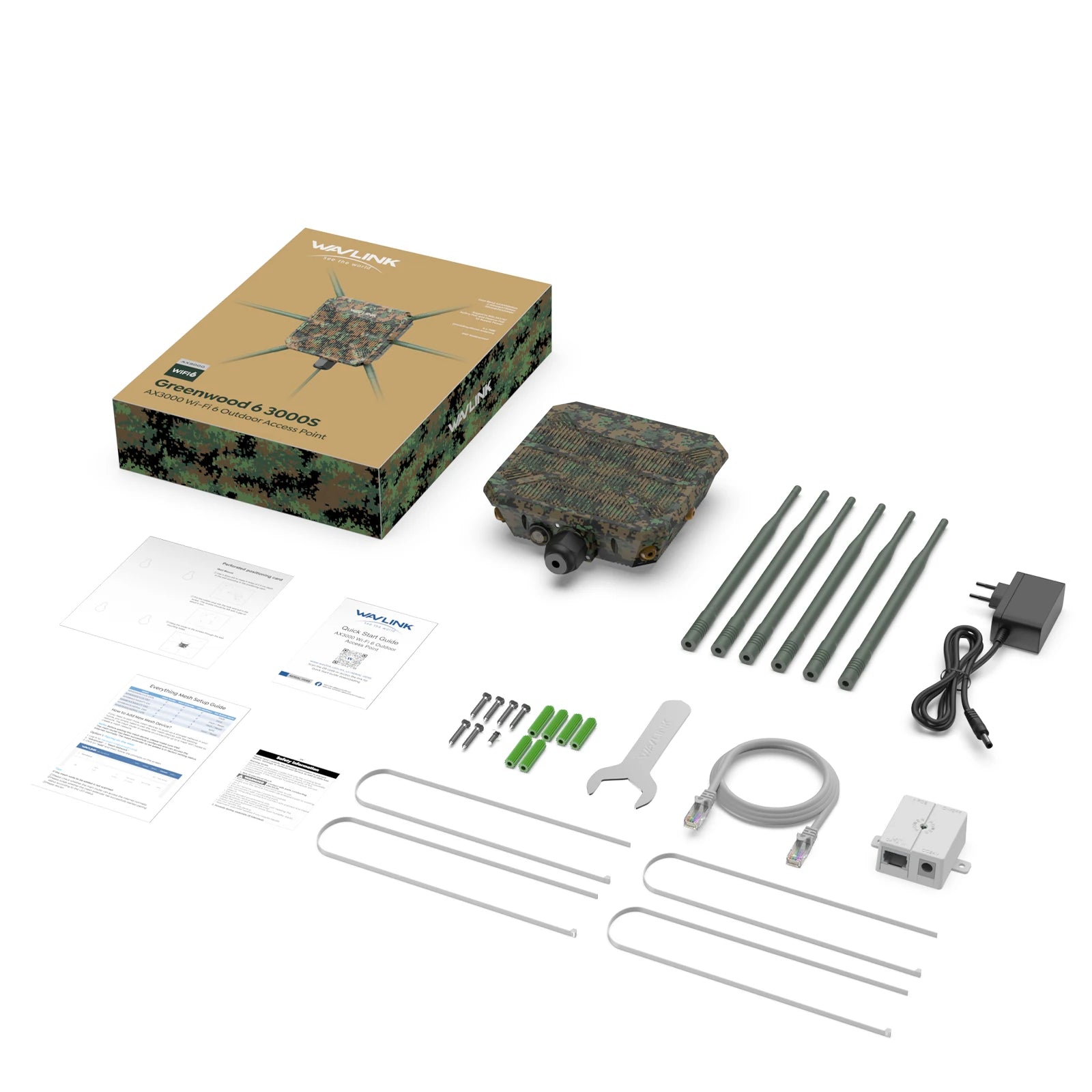

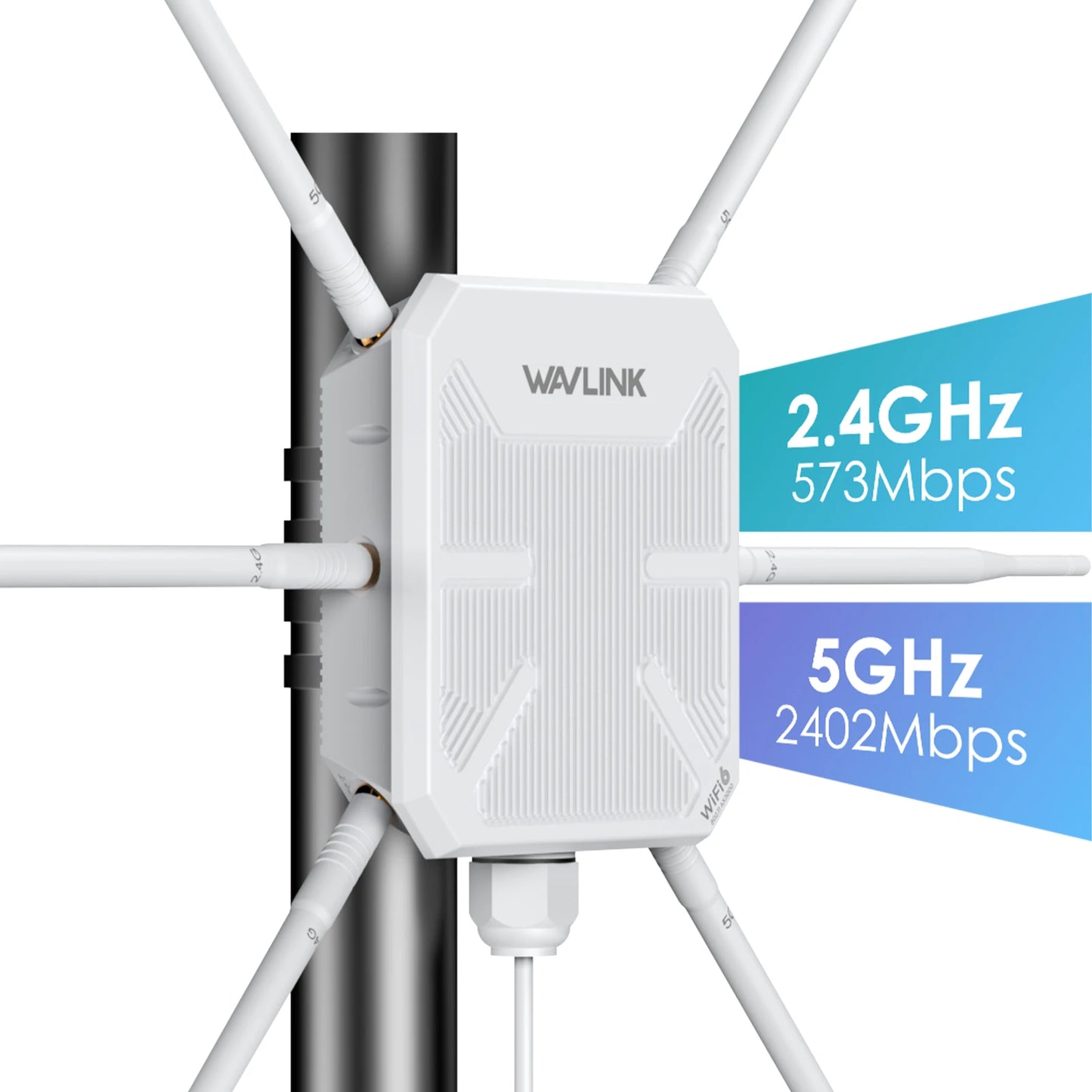

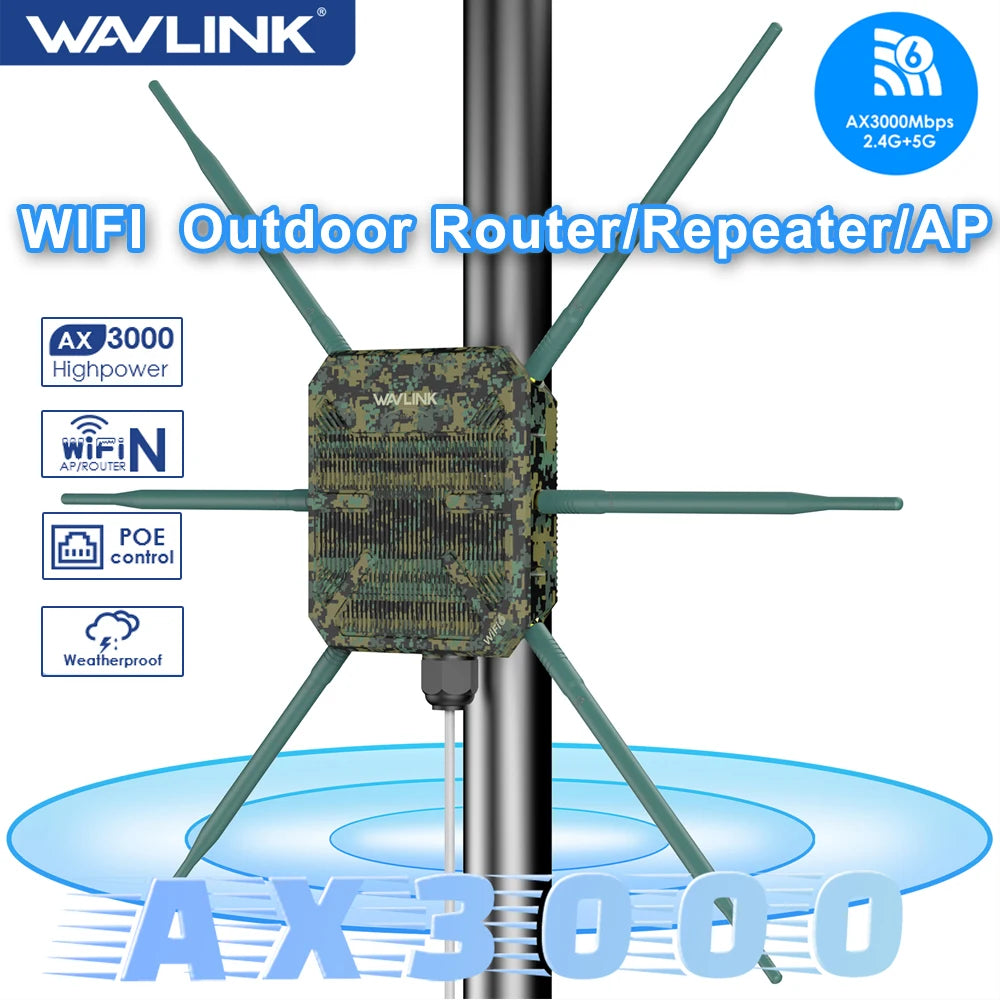

WAVLINK WiFi 6 Outdoor Access Point (Model: WL-WN588HX3)
Product Size: 17 × 17.3 × 5.1 cm
PoE Converter Size: 4.4 × 3.7 × 2.2 cm
Ethernet Cable Length: 100 cm
Power Adapter Cable Length: 130 cm
Product Weight: 552g
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 6 × 7dBi Omnidirectional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green
Key Features

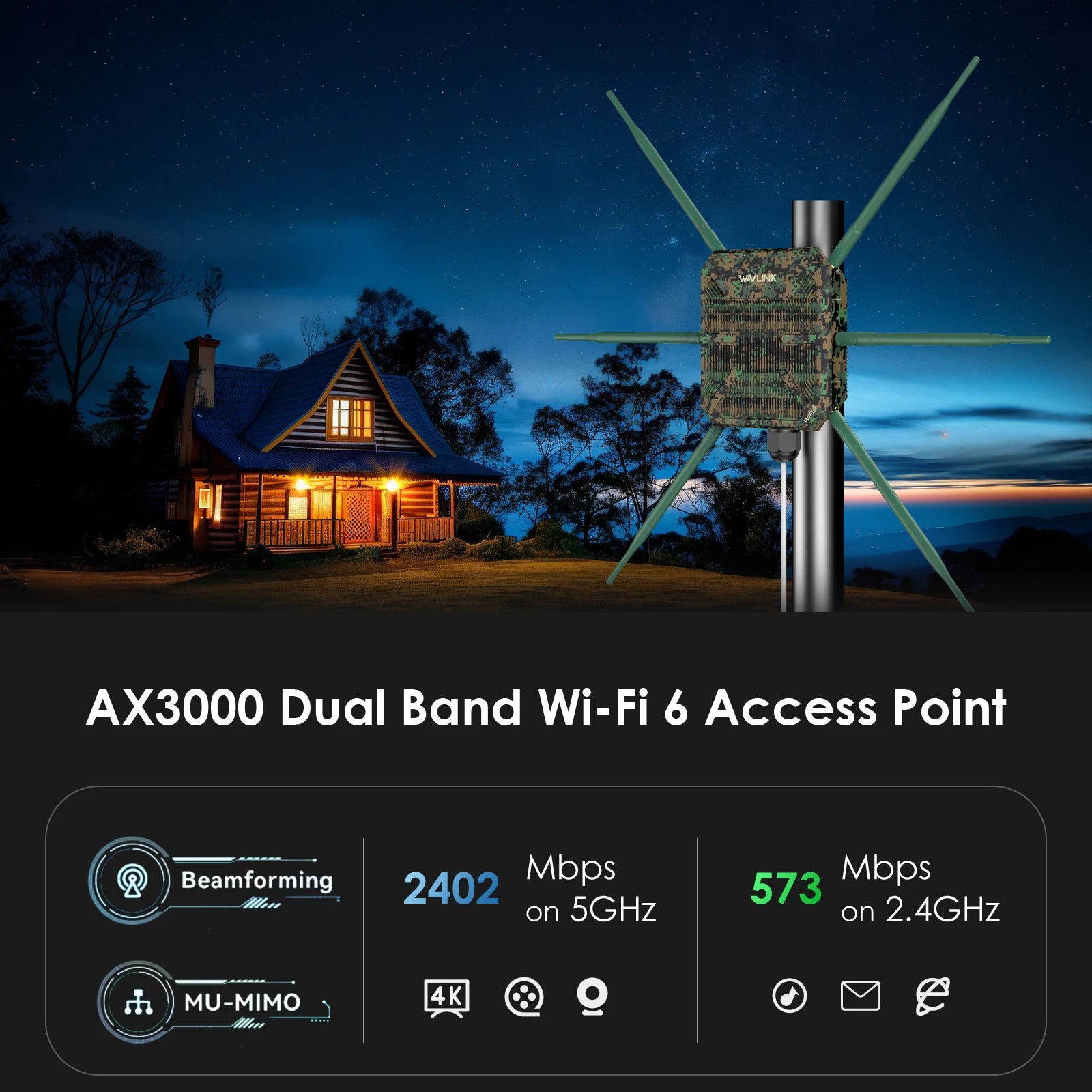

Supports dual-band operation with total speeds up to 3000Mbps.
Equipped with one WAN/LAN Ethernet Gigabit port.

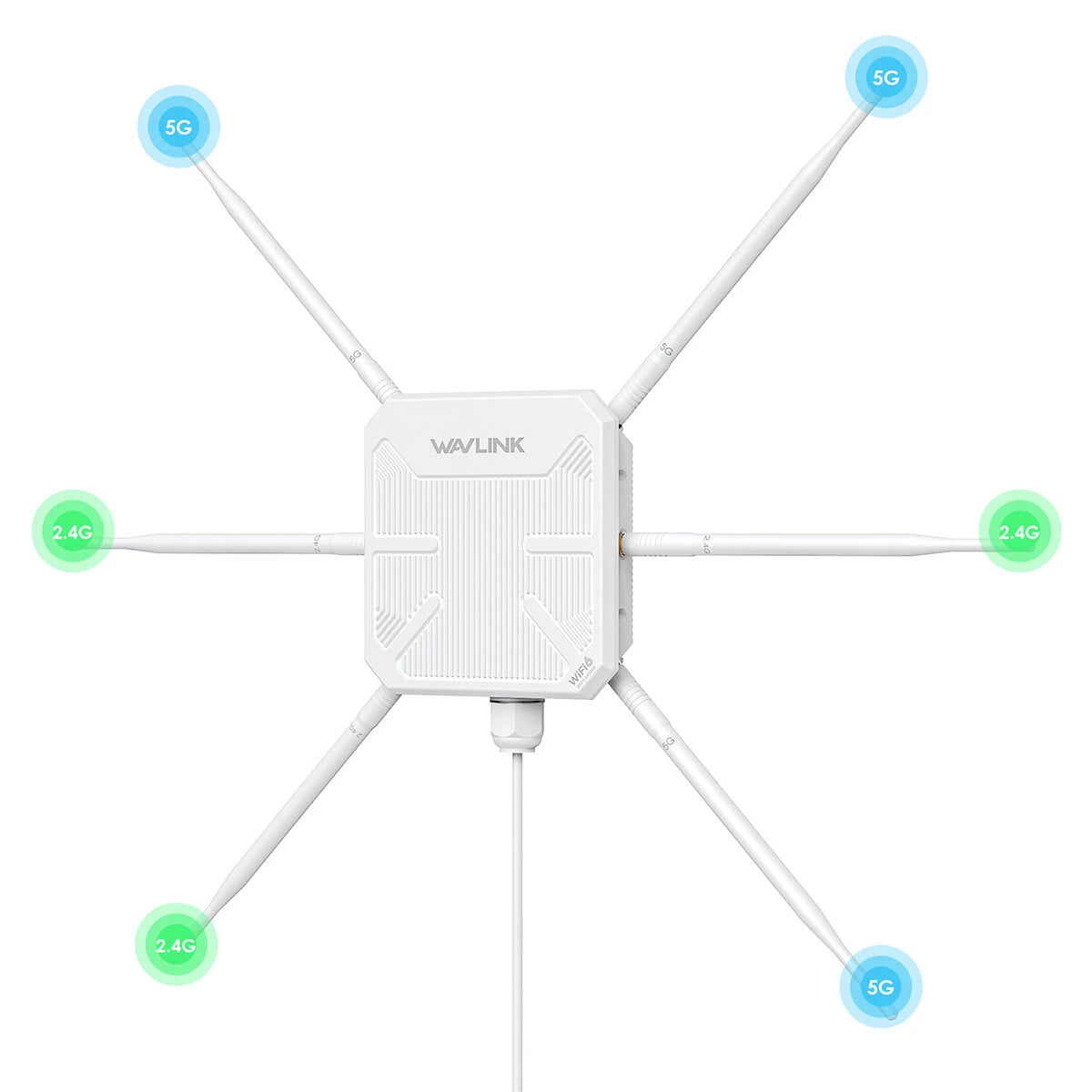

Three 7dBi 5GHz and three 7dBi 2.4GHz detachable omni-directional external antennas for superior wireless performance.

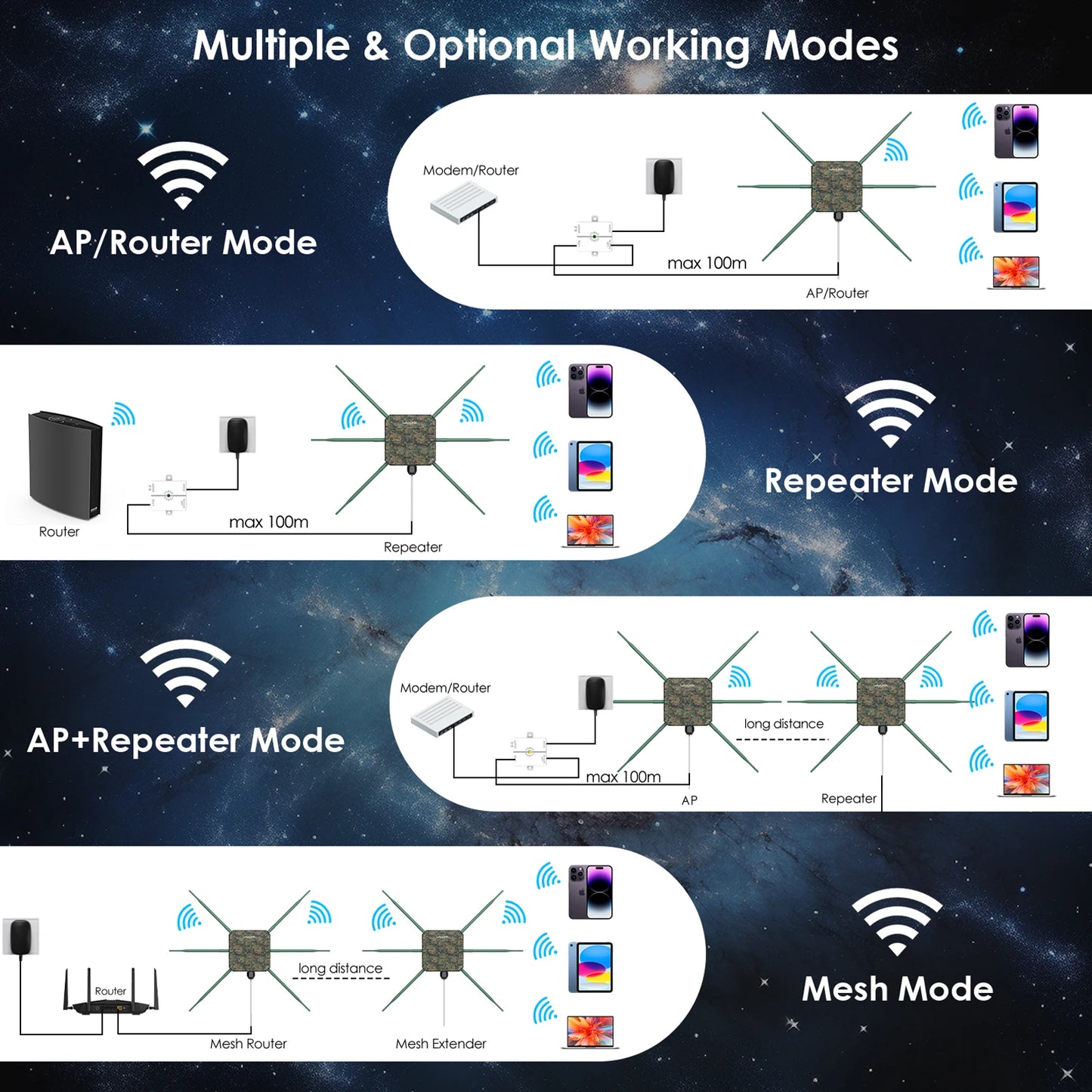

Operates in Router, AP, Range Extender, Mesh Router, and Mesh Extender modes.
Encryption options include OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless and stable WiFi Mesh with a unified network name and password.
Weatherproof enclosure rated IP67 for harsh outdoor conditions.
Supports both 802.3 AT/AF Active PoE and Passive PoE power supply.
Compatible with Fat AP Mode and Fit AP Mode via WAVLINK AC controller.

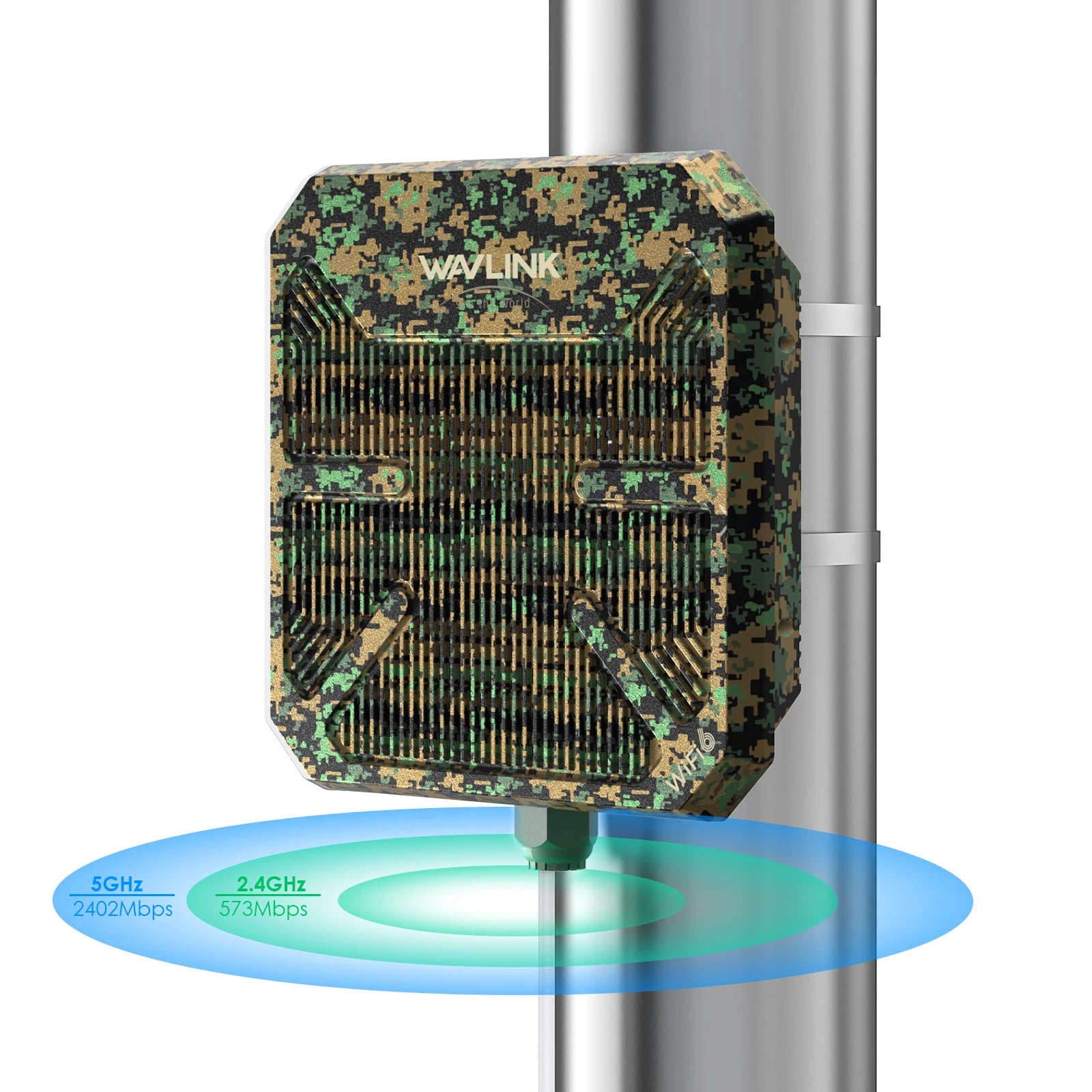

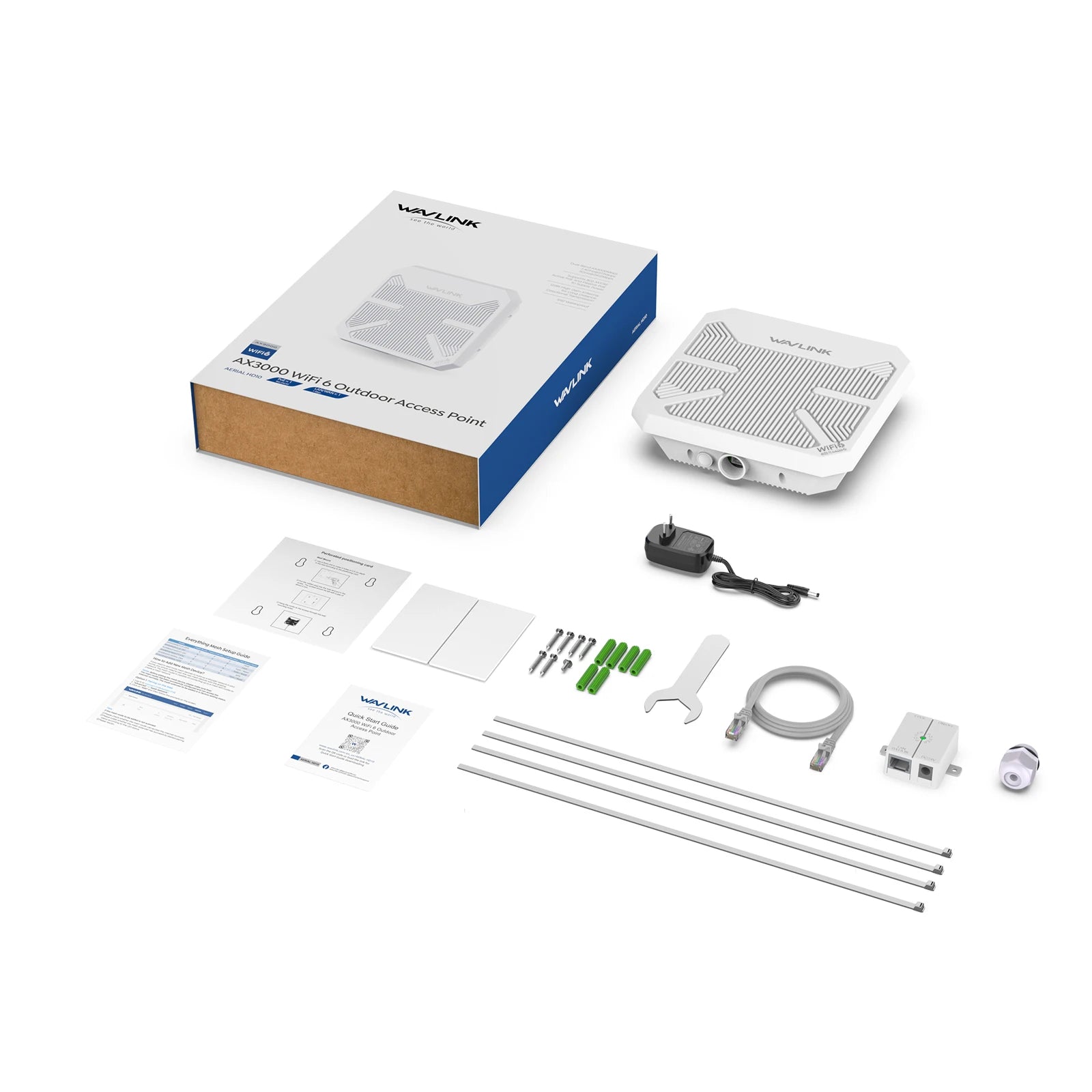

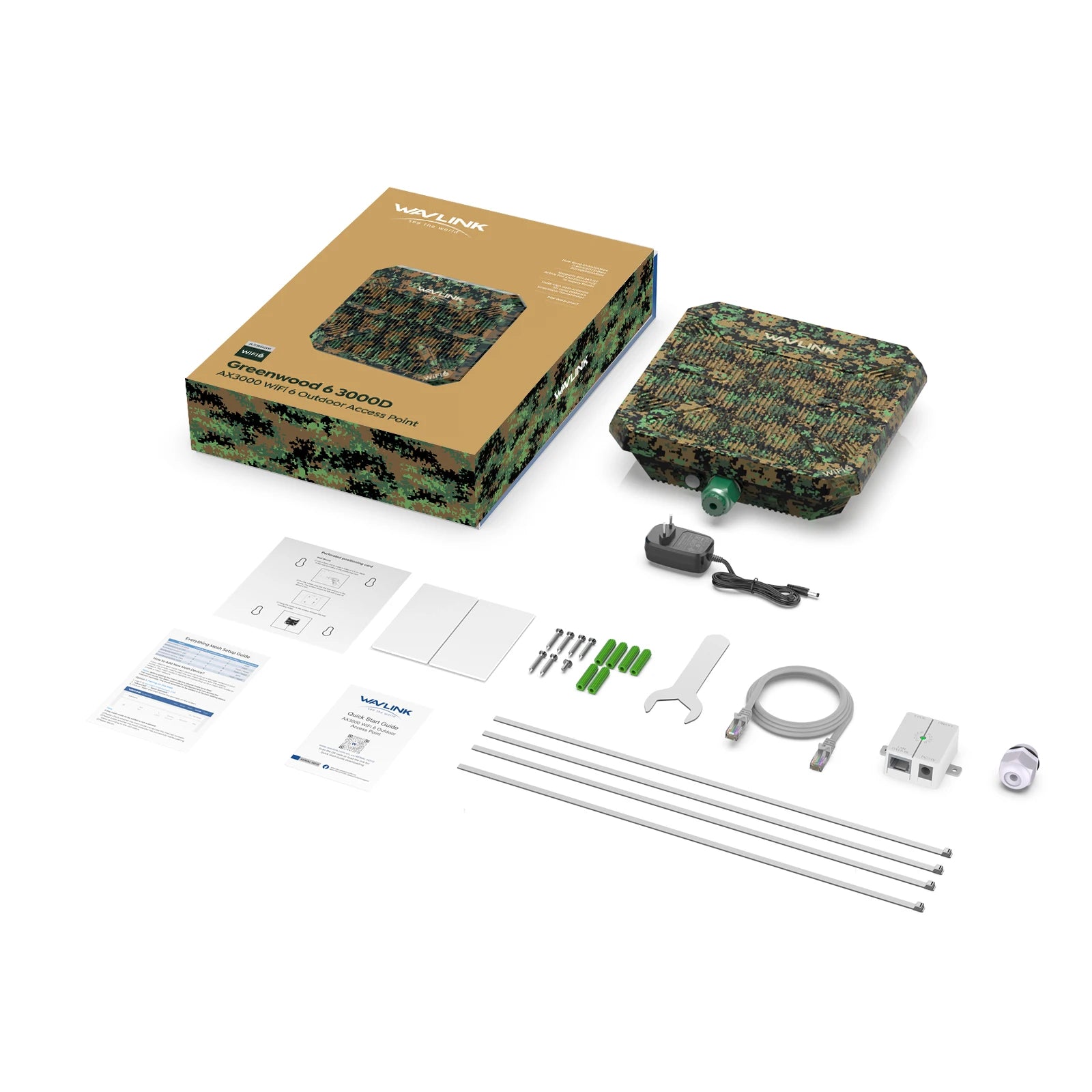

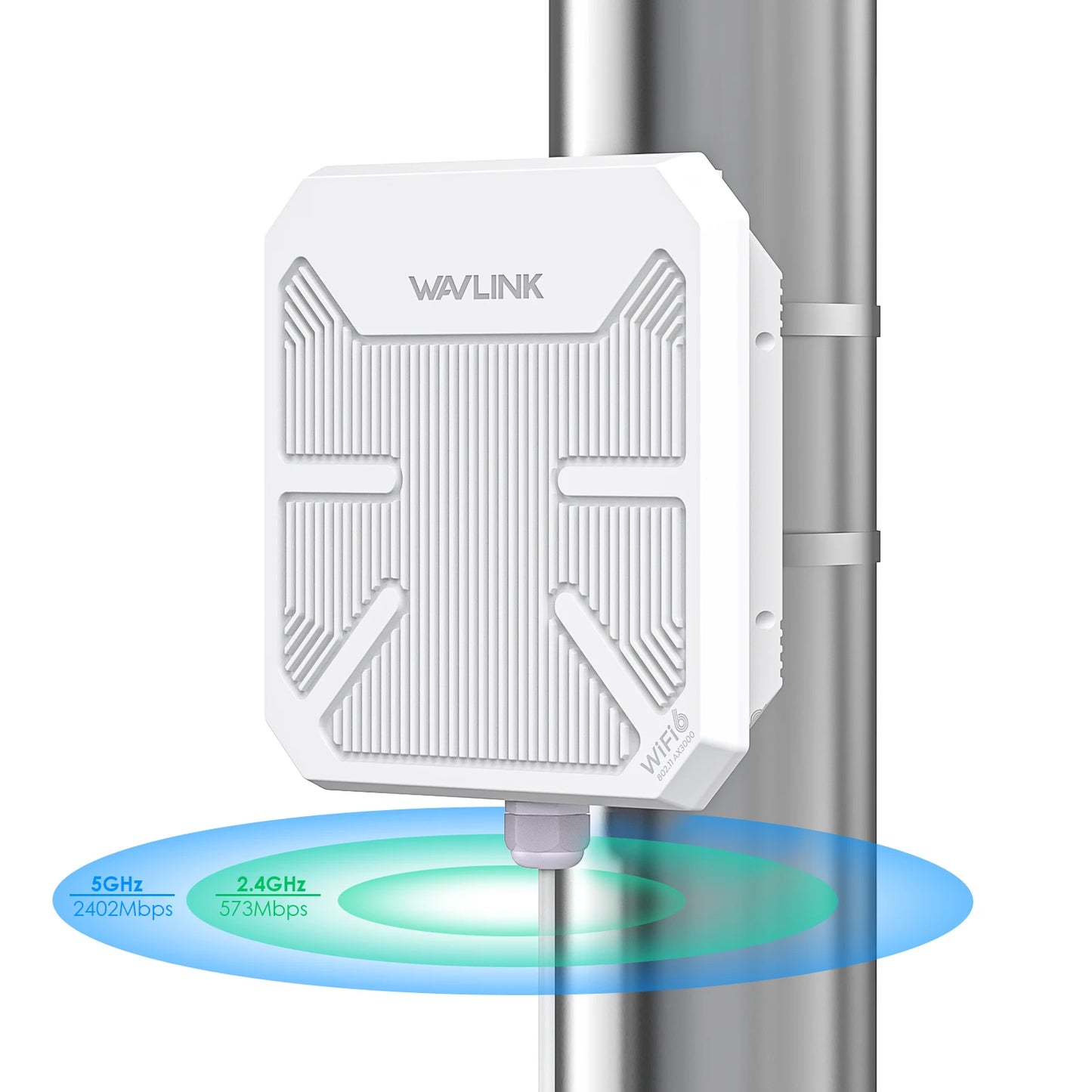

WAVLINK WiFi 6 Outdoor Access Point (Model: WL-WN573HP3)
Product Size: 24 × 24 × 7 cm
PoE Converter Size: 4.4 × 3.7 × 2.2 cm
Ethernet Cable Length: 100 cm
Power Adapter Cable Length: 130 cm
Product Weight: 1050g
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band / Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 × 12dBi Directional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green
Key Features
Supports dual-band operation with speeds up to 3000Mbps.
Includes one WAN/LAN Ethernet Gigabit port.

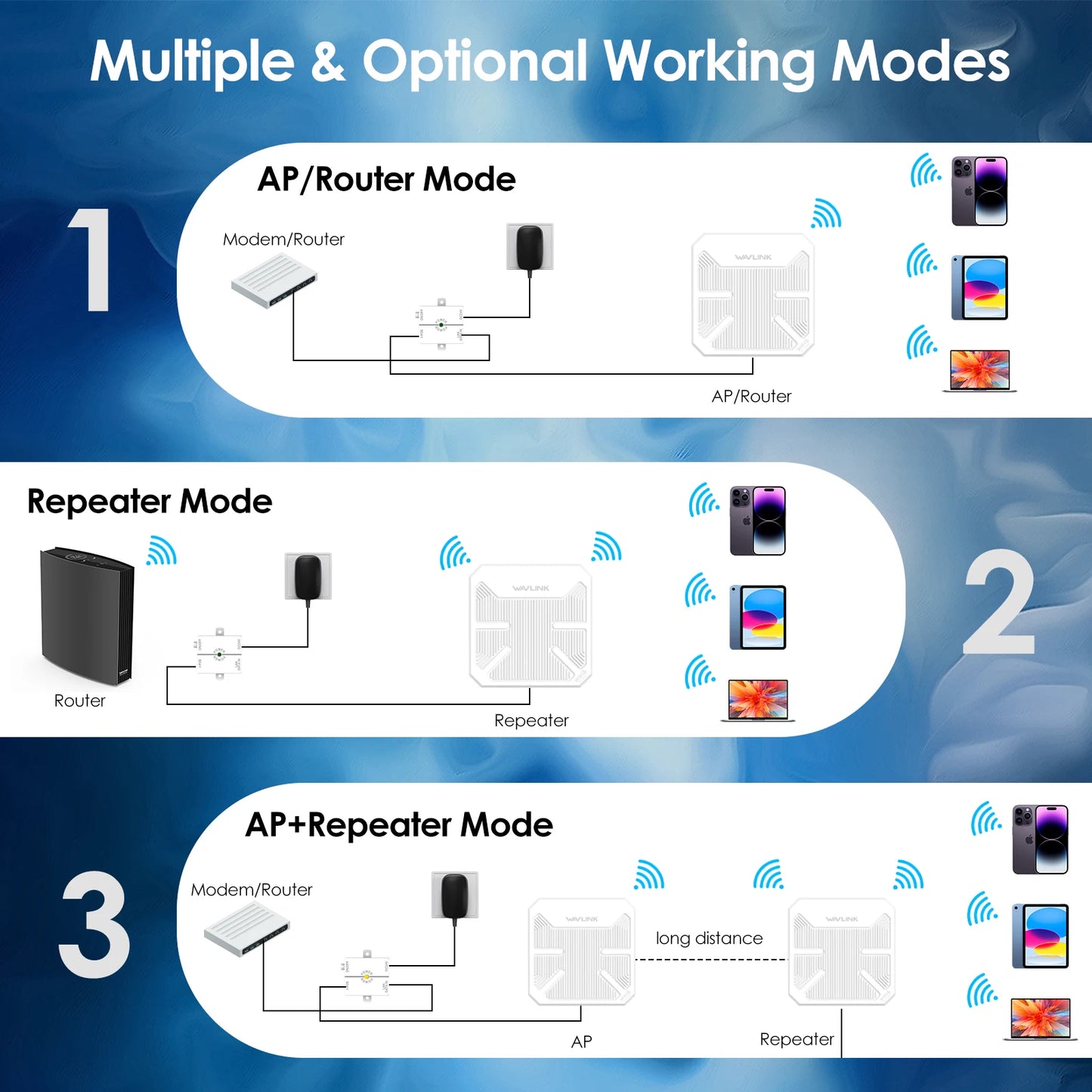

Operates in Router, AP, Range Extender, Mesh Router, and Mesh Extender modes.
Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
Uses encryption standards including OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless roaming via WiFi Mesh with a single SSID and password.
Durable IP67-rated waterproof casing ensures reliable outdoor performance.
Supports both active and passive PoE for versatile power options.
Supports Fat AP Mode and Fit AP Mode with WAVLINK AC controller.
Warm Tips
The PoE converter is not waterproof and should be installed indoors.
Ensure Ethernet cable is CAT5E or above and shorter than 100 meters.

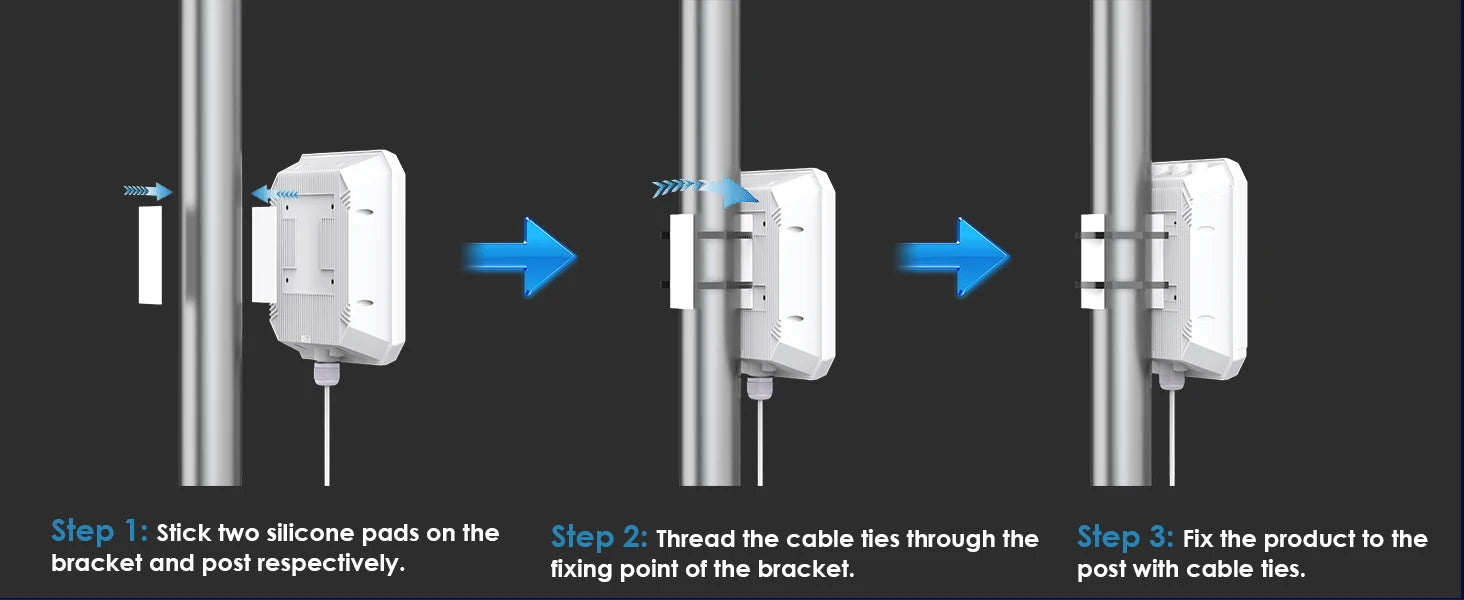

Install the product 2–3 meters above the ground for best signal performance.
In Mesh mode, model WN573HP3 supports interconnection with WN586X3, WN583AX3, and WN573HX3.
Performance may vary depending on environmental conditions.
